Product Details:
|
Model: | WCB5C28T32 | Rated Voltage: | 380V |
---|---|---|---|
Magnetic Field: | 10000 | Magnetic Bar's Size: | 32*1032mm |
Main Weight: | 196kg | Dimensions: | 1650*670*826 |
Power(w): | 2.2-11 Kw | Installation: | Engineer Guide,technical Guidance |
Application: | Ironplant,magnetic Separator,Ore/iron/sand | Capacity: | 1.5~7.5 T/h |
Product Name: | Magnetic Separator,iron Separator | Material: | Steel |
High Light: | low intensity magnetic separator,conveyor magnetic separator |

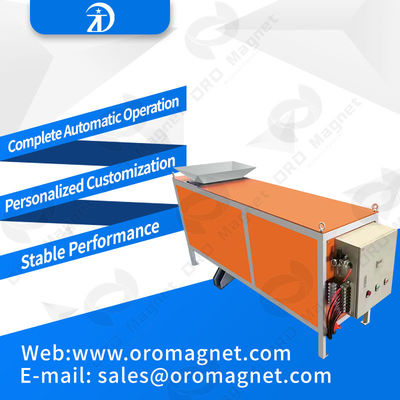

Automatic Drawer type Magnetic Separation Equipment Magnetic Separator for powder
The magnetic drawer are ideal for removing medium and fine ferrous contaminants from a range of dry free flowing products. They are widely used in food industry and chemical industry. Magnetic bars inside housing emit high magnetic field across the gaps between them. When material flows into the top of the housing, it is forced to cascade in a zig-zag pattern from row to row over the magnetic tubes, which ensures maximum tramp metal captured since the product comes in direct and repeated contact with a magnet as it travels through the magnetic drawer housing.
Features
1. Finishing: Fine polishing and well welding to meet food grade.
2. Material: All the frames and housing are stainless steel with seamless steel tube
3. Magnet: High strength rare-earth Magnet.
4.Working Temperature: Standard magnetic drawer working temperature is ≦ 80℃, but if higher temperature is required, we can offer up to 350℃ to meet your special applications
5. Type of mounting: Round or Square, flange or quick release clamp are decided by customer
6. As rare earth magnets are extremely powerful and tramp metal is very difficult to remove by hand. We are ready to offer you an easy-clean design type drawer magnet.
7. Customer designs, specifications can be fulfilled.
Application area:
There magnetic drawers are used in production lines where products are of dry powder and granular, while contaminants are relatively small and fine.
Technology parameter
Easy Clean Permanent Magnetic Separator 8 Layer Costomized
Product | Diameter(mm) | Pieces | Layer |
8-layer Drawer type magnetic separator |
Ф25 |
44 |
8 |
8-layer Drawer type magnetic separator |
Ф32 |
36 |
8 |
5-layer Drawer type magnetic separator |
Ф32 |
28 |
5 |
5-layer Drawer type magnetic separator |
Ф25 |
18 |
5 |
3-layer Drawer type magnetic separator |
Ф32 |
11 |
3 |
