Product Details:
|
Voltage: | 220V/380V | Condition: | New |
---|---|---|---|
After-sales Service Provided: | Video Technical Support,Online Support | Warranty: | 12 Months |
Type: | Magnetic Separator | Weight: | 750kg-3000KG |
Production Capacity: | High Level | Power(w): | 1.5-11kw |
Color: | Customized | Application: | Magnetic Separator,Ore/iron/sand |
High Light: | low intensity magnetic separator,conveyor magnetic separator |
8 Layer Magnetism, Magnetic Separation Definition 33 Pcs for Chemical Industry
Product Description

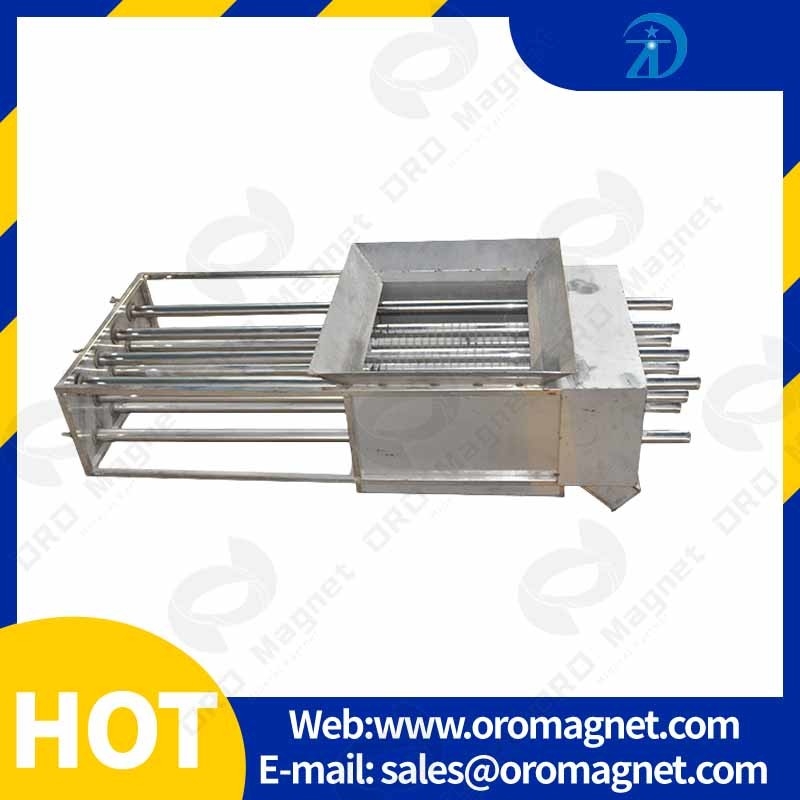

The magnetic drawer are ideal for removing medium and fine ferrous contaminants from a range of dry free flowing products. They are widely used in food industry and chemical industry. Magnetic bars inside housing emit high magnetic field across the gaps between them. When material flows into the top of the housing, it is forced to cascade in a zig-zag pattern from row to row over the magnetic tubes, which ensures maximum tramp metal captured since the product comes in direct and repeated contact with a magnet as it travels through the magnetic drawer housing.
Features:
Following are the features of the drawer magnets:
(1) The drawer magnets can be fitted simply in existing pipe line or outlet of various equipments like pulverizers, blenders etc.
(2) Generally each unit comprises of permanent magnetic grids mounted one above the other.
(3) For special applications there are systems with multiple grids.
(4) The grids are easily removable for cleaning.
(5) Normally the ferrite or rare earth and NdFeB magnets are used in the drawer magnets.
(6) Certain types of drawer magnets handle a wide range of separation tasks in gravity conveying systems
Technology parameter
8 Layer Magnetism, Magnetic Separation Definition 33 Pcs for Chemical Industry
Product | Diameter(mm) | Pieces | Layer |
8-layer Drawer type magnetic separator |
Ф25 |
36 |
8 |
6-layer Drawer type magnetic separator |
Ф32 |
33 |
6 |
5-layer Drawer type magnetic separator |
Ф25 |
23 |
5 |
4-layer Drawer type magnetic separator |
Ф32 |
18 |
4 |
3-layer Drawer type magnetic separator |
Ф32 |
11 |
3 |
Application area:
There magnetic drawers are used in production lines where products are of dry powder and granular, while contaminants are relatively small and fine.
How to select our products?
Please advise us the above necessary information to make enquiry. If you aren’t in a position to offer these information, please feel free to contact our engineer and acquaint us with the application environment and material condition.
