32MM Magnetic Equipment Metal Separators 36 Piece 16 Piece Easy Operated

32MM Magnetic Equipment Metal Separators 36 Piece 16 Piece Easy Operated
32MM Magnetic Equipment Metal Separators 36 Piece 16 Piece Easy Operated 32MM Magnetic Equipment Metal Separators 36 Piece 16 Piece Easy Operated 32MM Magnetic Equipment Metal Separators 36 Piece 16 Piece Easy Operated

Large Image :  32MM Magnetic Equipment Metal Separators 36 Piece 16 Piece Easy Operated

Product Details:
Place of Origin: FOSHAN,GUANGDONG,CHINA
Brand Name: ZT
Certification: ISO9001:2008
Model Number: 5-layer Semi-Automatic Drawer Type Magnetic Separator
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: film and wooden case
Delivery Time: 55 days
Payment Terms: T/T, Western Union
Supply Ability: 1000 set

32MM Magnetic Equipment Metal Separators 36 Piece 16 Piece Easy Operated

Description
High Light:

low intensity magnetic separator

,

conveyor magnetic separator

32MM 25MM Magnetic Equipment ,Metal Separators 36 Piece 16 Piece


Product Description

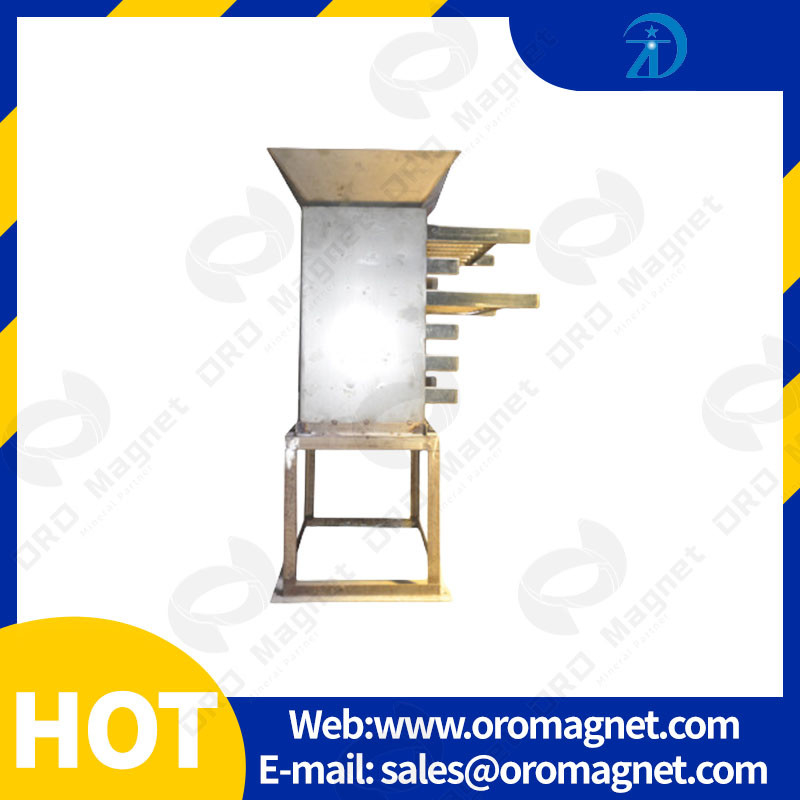

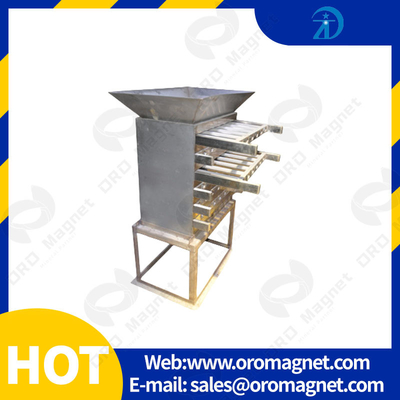

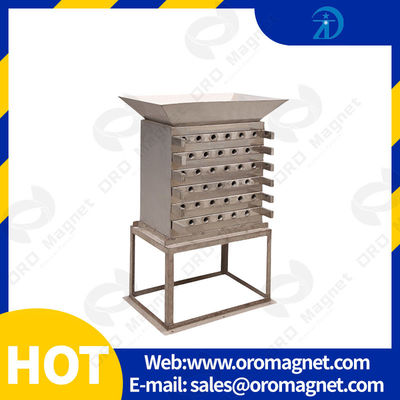

The magnetic drawer are constructed by a group of magnetic grates and housing. It would be one layer or multiple layers inside the housing which depend on the material condition. Usually, a magnetic drawer is installed into the pipeline. So mounting way have to be decided by customer.



How to do cleaning?
Drawer Magnets should be cleaned periodically for the most efficient performance. To clean the magnetic tubes, release the latch first and open the door. Remove the grate assemblies one at a time. Remove the tramp metal by hand. Use extreme caution and wear gloves during the process.




 Features:
1. Finishing: Fine polishing and well welding to meet food grade.
2. Material: All the frames and housing are stainless steel with seamless steel tube
3. Magnet: High strength rare-earth Magnet.
4.Working Temperature: Standard magnetic drawer working temperature is ≦ 80℃, but if higher temperature is required, we can offer up to 350℃ to meet your special applications
5. Type of mounting: Round or Square, flange or quick release clamp are decided by customer
6. As rare earth magnets are extremely powerful and tramp metal is very difficult to remove by hand. We are ready to offer you an easy-clean design type drawer magnet.
7. Customer designs, specifications can be fulfilled.


Technology parameter

32MM 25MM Magnetic Equipment ,Metal Separators 36 Piece 16 Piece



Product Diameter(mm) Pieces Layer

8-layer Drawer type magnetic separator

Ф25

36

8

6-layer Drawer type magnetic separator

Ф32

33

6

5-layer Drawer type magnetic separator

Ф25

23

5

4-layer Drawer type magnetic separator

Ф32

18

4

3-layer Drawer type magnetic separator

Ф32

11

3



The Drawer Magnets are designed to remove metal contamination from free flowing, gravity or mechanical fed material in enclosed flow lines. They incorporate high power Magnetic Cartridges into their design and are suitable for various industries including plastics, food, pharmaceutical, powders, grain and more.
