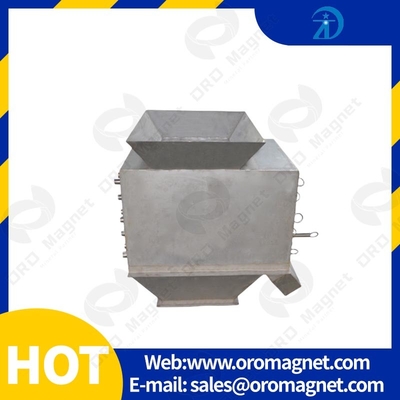

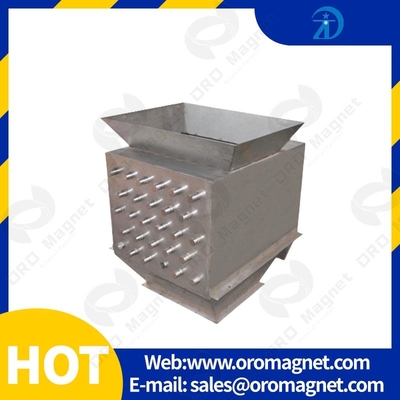

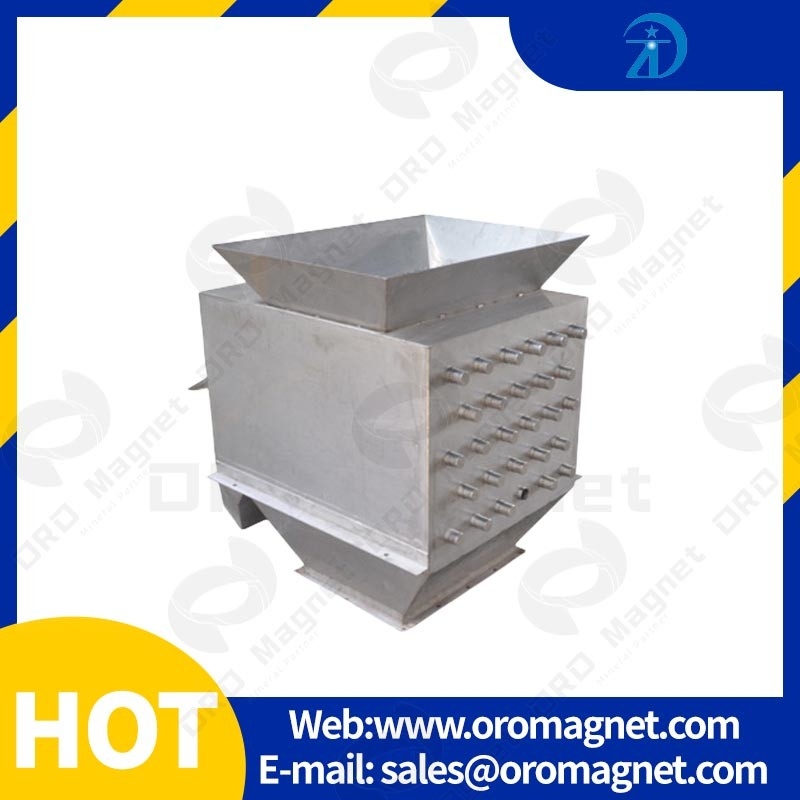

25mm 16 Piece Permanent Magnetic Separator Separation Equipment Manual Clean Drawer

25mm 16 piece Magnetic Separation Equipment Manual Clean Drawer

We can provide excellent equipment and product protection of medium and fine ferrous contaminants in dry, free flowing products under gravity flow. Multiple staggered rows provide maximum contact area for product flow. As product flows through the stainless steel housing, it cascades over the staggered rows of magnetic tubes. Ferrous contaminants are pulled to the surface of the magnets where they move to the underside of the tube to prevent any washoff. Drawer Magnets should be cleaned periodically for the most efficient performance. To clean the magnetic tubes, release the latch assembly and open the door. Remove the grate assemblies one at a time. Remove the tramp metal by hand. Use extreme caution and wear gloves during the process. Rare earth magnets are extremely powerful and tramp metal is very difficult to remove by hand.

Product Description

In larger drawer magnets Rare Earth Magnetic tubes are incorporated for optimum ferrous metal separation on difficult flowing products such as flour, powdered sugar and other products with a tendency to bridge.  The placement of larger tubes below steep angled diverters that prevent product from bridging or building up on the tubes.  Since the spacing between the tubes are larger it allows the product to flow freely through the housing.

Heavy duty drawer are useful for optimum magnetic separation in tough processing conditions like ambient temperature and humidity, bridging, abrasion, corrosion or galling. There are special coating on the drawer's tubes that prevents sticking problems associated with certain products and processing conditions. Due to this the cleaning operations becomes even easier.  The cleaning can be accomplished both manually and automatically

Operation process

(1) The drawer magnets can be fitted simply in existing pipe line or outlet of various equipments like pulverizers, blenders etc.
(2) Generally each unit comprises of permanent magnetic grids mounted one above the other.
(3) For special applications there are systems with multiple grids.
(4) The grids are easily removable for cleaning.
(5) Normally the ferrite or rare earth and NdFeB magnets are used in the drawer magnets.
(6) Certain types of drawer magnets handle a wide range of separation tasks in gravity conveying systems

Technology parameter

Application scope

25mm 16 piece Magnetic Separation Equipment Manual Clean Drawer

(1) Mining industries
(2) Pharmaceuticals industries
(3) Food processing industries
(4) Industries dealing with powdery substance
(5) Cement, gypsum and other types of small scale industries.
