15000GS Quatrz Kaolin Feldspar Conveyor Magnetic Separator Professional

15000GS magnetic separator working principle for quatrz , kaolin, feldspar

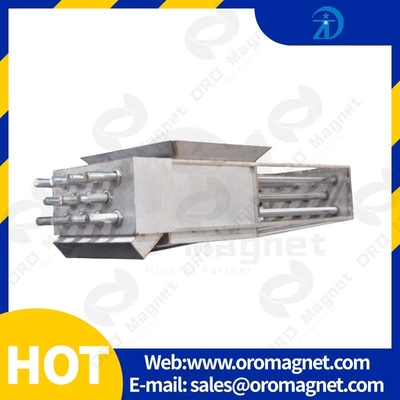

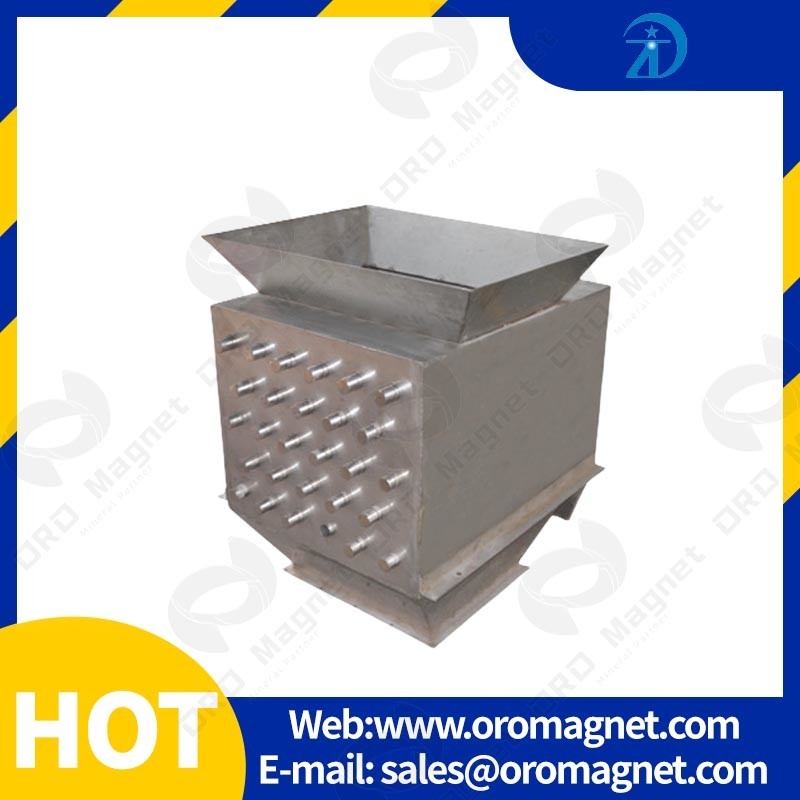

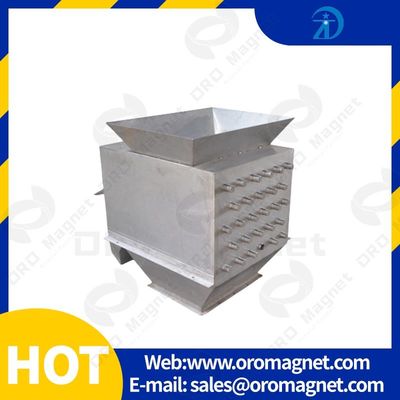

Drawer magnets consists of a row, or most commonly, rows of round magnetic tubes that are assembled into drawers.  Drawer Magnets are recommended for fine cohesive materials such as magnesium oxide, zircon powder, fly ash, aluminum, gypsum, lime, powdered sugar, cornstarch, flour & pulverized minerals and ceramics.

The drawer magnets are available with either Ferrite magnets or with High Intensity. Rare Earth Nd-Fe-B Magnets.

Product characteristic

1. Silicate High Gradient Magnetic Separator,The magnetic bar of the machine adopt stronger rare earth permanent magnet or oxidational magnetic iron as the source of magnet. Compared with the electromagnetic iron machine, it can save power consumption.

2. Using super magnetic force, it sort out the tiny iron impurity, so as to protect the next mineral processing separator equipment and enhance the purity of material.

3. The strong magnetic intensity of magnetic bar has 25 mm diameter of with surface of magnetic field intension for more than 12000 gauss which make the iron removal convenient and quick, the air cylinder pull the magnetic bar layer by layer and the magnetic material absorbed on the magnetic bar will drop off automatically with continuous work.

4. The material can continue to work when draw the iron elimination piece by piece while having no need to stop feeding.

5. On both ends of the magnetic bar, it can be made according to the requirements, like threaded holes, screw holes, flying rings, conical point and so on, which is convenient for installation and fixity.

Operation process

15000GS magnetic separator working principle for quatrz , kaolin, feldspar

(1) The drawer magnets can be fitted simply in existing pipe line or outlet of various equipments like pulverizers, blenders etc.
(2) Generally each unit comprises of permanent magnetic grids mounted one above the other.
(3) For special applications there are systems with multiple grids.
(4) The grids are easily removable for cleaning.
(5) Normally the ferrite or rare earth and NdFeB magnets are used in the drawer magnets.
(6) Certain types of drawer magnets handle a wide range of separation tasks in gravity conveying systems

Technology parameter

Application scope

(1) Mining industries
(2) Pharmaceuticals industries
(3) Food processing industries
(4) Industries dealing with powdery substance
(5) Cement, gypsum and other types of small scale industries.
