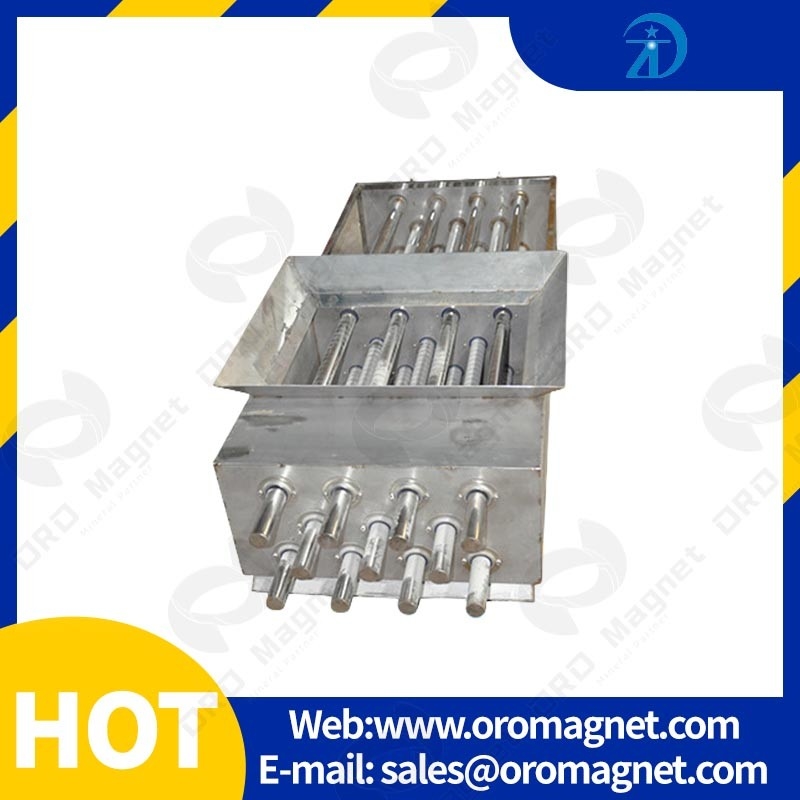

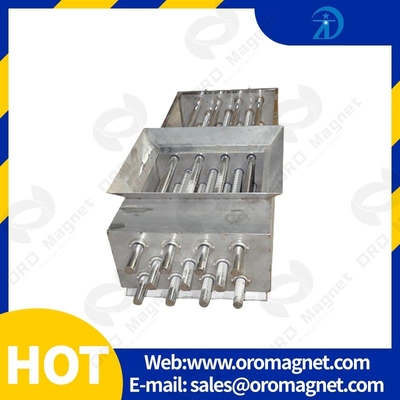

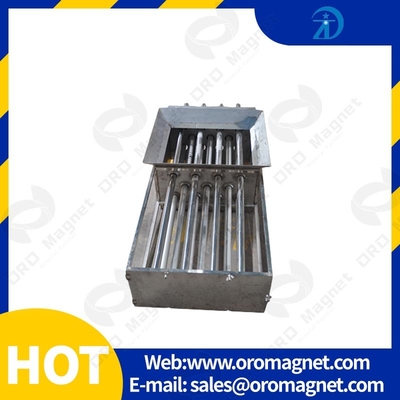

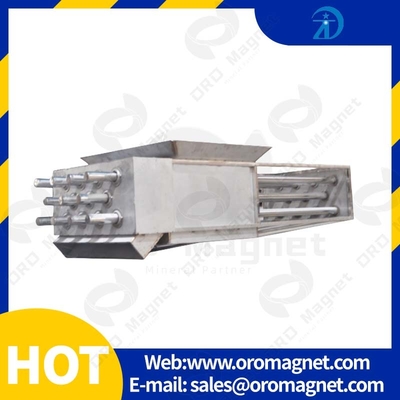

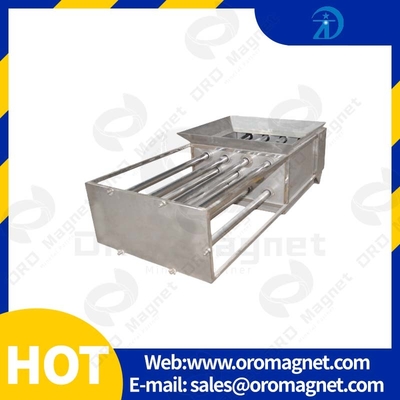

Iron Removal Permanent Magnetic Separator Large Capacity 4 Leveis

Iron Removal Permanent Magnetic Separator Large Capacity 4 Leveis
Iron Removal Permanent Magnetic Separator Large Capacity 4 Leveis Iron Removal Permanent Magnetic Separator Large Capacity 4 Leveis Iron Removal Permanent Magnetic Separator Large Capacity 4 Leveis Iron Removal Permanent Magnetic Separator Large Capacity 4 Leveis

Large Image :  Iron Removal Permanent Magnetic Separator Large Capacity 4 Leveis

Product Details:
Place of Origin: FOSHAN,GUANGDONG,CHINA
Brand Name: ZT
Certification: ISO9001:2008
Model Number: 8-layer Semi-Automatic Magnetic Cabinet Iron remover
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard Exporting Package
Delivery Time: Within 25 days after the advance payment is made
Supply Ability: 500 SETS PER MONTH

Iron Removal Permanent Magnetic Separator Large Capacity 4 Leveis

Description
Voltage: 220V/380V Condition: Brand New
After-sales Service Provided: Video Technical Support,Online Support Warranty: 12 Months
Type: Magnetic Separator Weight: 750kg-3000KG
Power(w): 1.5-11kw Application: Ironplant,magnetic Separator
Capacity: 1.5~7.5 T/h Feeding Size: 0.1-3mm
High Light:

low intensity magnetic separator

,

conveyor magnetic separator

large capacity 4 leveis iron removal cabinet for powder 380V





Product characteristic



1. The magnetic bar of the machine adopt stronger rare earth permanent magnet or oxidational magnetic iron as the source of magnet. Compared with the electromagnetic iron machine, it can save power consumption.

2. Using super magnetic force, it sort out the tiny iron impurity, so as to protect the next mineral processing separator equipment and enhance the purity of material.

3. The strong magnetic intensity of magnetic bar has 25 mm diameter of with surface of magnetic field intension for more than 12000 gauss which make the iron removal convenient and quick, the air cylinder pull the magnetic bar layer by layer and the magnetic material absorbed on the magnetic bar will drop off automatically with continuous work.

4. The material can continue to work when draw the iron elimination piece by piece while having no need to stop feeding.

5. On both ends of the magnetic bar, it can be made according to the requirements, like threaded holes, screw holes, flying rings, conical point and so on, which is convenient for installation and fixity.





Operation process



1. Mineral grains feeded into the mouth of the magnetic bar box. When the mineral particles go through its permanent magnetic bar in a magnetic box, the magnetic materials concluded in the mineral grains are absorbed on the bar because of the magnetic force.

2. And the non-magnetic mineral grains magnet discharge from the discharging mouth, meanwhile it pull the permanent magnetic bar through a cylinder device layer by layer, at the same time, the ferromagnetic material absorbed on the permanent magnetic bar can automatic separate from the mouth of iron removal.



Technology parameter

Product Diameter(mm) Pieces Layer

8-layer manual Magnetic Cabinet Iron Remover

Ф25

36

8

6-layer manual Magnetic Cabinet Iron Remover

Ф32

33

6

5-layer manual Magnetic Cabinet Iron Remover

Ф25

23

5

4-layer manual Magnetic Cabinet Iron Remover

Ф32

18

4

3-layer manual Magnetic Cabinet Iron Remover

Ф32

11

3





Application scope



It’s suitable for silicate, feldspar, quartz, kaolin and other non-metallic mineral purification and removing impurity.
