Product Details:
|
| Model: | 15A220 | Magnetic Field Strength（T）: | 3 |
|---|---|---|---|
| Inputvoltage（ACV）: | 220 | Maximum Output Current（DCA）: | 15 |
| Maximum Coil Power（KW）: | 11 | Cooling Method: | Water And Oil Double Cooling |
| Yield（T）: | 2.5-6 | Dimension（mm）: | 1600*1720*2500 |
| Main Machine Weight （KG）: | 1500 | Usage: | Applicable For 60-300 Mesh Feedstock Of Iron Elimination |
| Highlight: | magnetic separator for grinding machine,metal separation equipment |
||

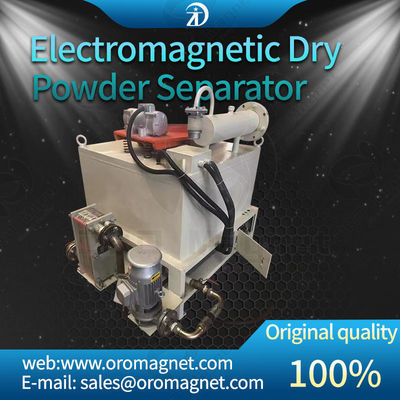

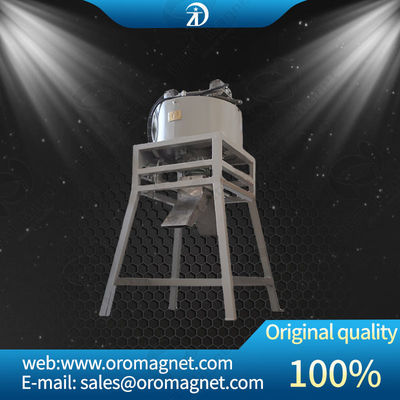

Dry Type magnetic drum separator for powder fine ore 220V 380V
Dry powder competitive roller high efficient magnetic separator
Product Description
Magnetic separator could separate ferromagnetism impurity from moving materials.
Widely used in steel dross, cars scrapping, waste steel handling and garbage separation, etc.
It could avoid the belt damage problem of magnetic separator with belt effectively.
Standard Features and Benefits:
1. High magnetic force strength large gradient and suction.
2. High-performance NdFeB materials, high magnetic energy product, high resistance to demagnetize, demagnetize less than 5% within 8 years.
3. Both manual control and central control.
4. Magnetic performance based on the condition of the working site.
Specification:
|
Model |
3A160 |
7A300 |
11A220 |
11A430 |
15A220 |
20A600 |
|
Magnetic field strength(T) |
2 |
3 |
3 |
3 |
5 |
3 |
|
Input voltage(ACV) |
380 |
380 |
380 |
380 |
380 |
380 |
|
Maximum output current(DCA) |
15 |
20 |
20 |
20 |
30 |
40 |
|
Maximum coil power(KW) |
3 |
7 |
11 |
11 |
15 |
20 |
|
Insulation method |
E |
E |
E |
E |
E |
E |
|
Cooling method |
water and oil double cooling |
water and oil double cooling |
water and oil double cooling |
water and oil double cooling |
water and oil double cooling |
water and oil double cooling |
|
Magnetic lumen diameter(mm) |
160 |
300 |
220 |
430 |
220 |
600 |
|
yield(T) |
0.5-1.5 |
1.5-4 |
0.5-3 |
1.5-6 |
|
|
|
dimension(mm) |
700*700*1450 |
1320*1320* 2500 |
1300*1100* 1800 |
1500*1500* 2500 |
1350*1100*1850 |
1500*1500*2000 |
|
Main machine weight (KG) |
450 |
1020 |
1130 |
1210 |
1500 |
2000 |
|
Usage |
Applicable for 60-300 mesh feedstock of iron elimination |
|||||
