Product Details:
|
| Nominal Voltage: | 380V | Coil Power: | 11KW |
|---|---|---|---|
| Background Magnetic Intensity: | 30000GS | Cavity Diameter: | 250MM |
| Types Of Cooling: | Water And Oil Cooling | Yield: | 10-30m³/h |
| Insulate Grade: | E | Main Machine Weight: | 1210kg |
| Dimension: | 1200*1200*1850 | ||
| High Light: | magnetic separator for grinding machine,magnetic roll separator |
||

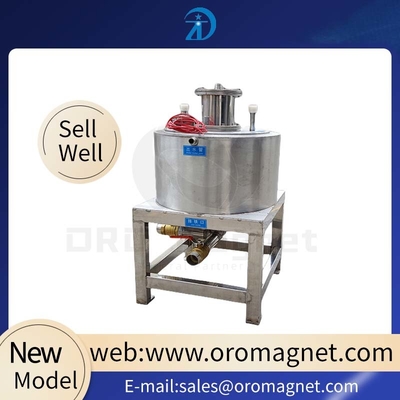

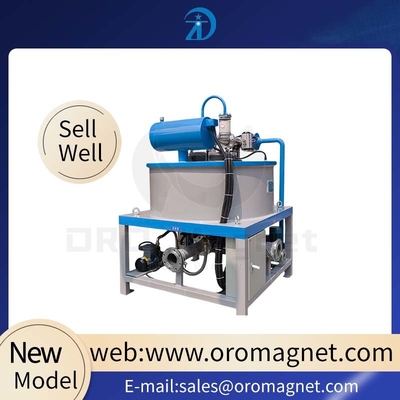

High Magnetic Field Intensity Magnetic Separator Eliminate Iron Completely
Product characteristic
Its magnetic circuit design is original and high efficiency for its separation selection. Steel wool in its magnetic cavity use the most original material made under high pressure, rust less, quick demagnetization and eliminate iron completely, also the low power consumption is only the one fortieth times of electromagnetic machine, meanwhile, it have simple operation, little maintenance, strong handling capacity and so on .
Specifications
Energy saving
Application scope
Permanent magnetic separator machine is the special magnetic separator for water-washed kaolin and sodium potassium feldspar. It can make the iron content in the water-washed kaolin from the range 1.2％ to 1.6％ and last it can reach 0.6％, also can improve the whiteness from 2 to 16, which has been applied in Guangxi, Jiangxi, Gaozhou and so on.
For example:paper treatment,paper pulp treatment,fiber stuff treatment,Sodium potassium feldspar Beneficiation,Kaolin Beneficiation
Advantages
High magnetic field intensity.
High gradient magnetic field.
Big concentration ratio.
Intelligent control operation.
Having a wide range in the particle size of feeding ore and the thickness of slurry.
| Model | WJ160S-B-V-1.5 | WJ89B-V-3 | WJ220B-V-3 | WJ250-V-7 | WJ250-V-11 | WJ250-V-18.5 | WJ400-V-20 |
| Magnetic field strength(T) | 2.5 | 2.5 | 2 | 3 | 3.5 | 3 | 3.5 |
| Input voltage(ACV) | 220 | 380 | 380 | 380 | 380 | 380 | 380 |
| Maximumoutput current(DCA) | 10 | 7 | 9 | 20 | 20 | 55 | 25 |
| Maximum coil power(KW) | 1.5 | 3 | 3 | 7 | 11 | 18.5 | 20 |
| Insulation method | E | E | E | E | E | E | E |
| Cooling method | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | Water and oil double cooling |
| Magnetic lumen diameter(mm) | 160 | 89 | 220 | 250 | 250 | 250 | 400 |
| Pipe size(mm) | 50 | 50 | 50 | 89 | 89 | 89 | 89 |
| yield(m³/h) | 3-10 | 0.1-0.5 | 5-10 | 10-30 | 10-30 | 10-30 | 20-60 |
| dimension(mm) | 946(H) | 500*500*1000 | 1326*1167*1452 | 1522*1260*1608 | 1200*1200*1850 | 1400*1400*1850 | 1500*1500*1850 |
| Main machine weight | 180 | 250 | 800 | 1070 | 1210 | 1500 | 3000 |
| (KG) | |||||||
| Usage | Applicable for 40-400 mesh feedstock of iron elimination | ||||||
Customer's Processing Picture
