Product Details:
|
| Input Voltage（ACV）: | Low Intensity Magnetic Separator / High Intensity Magnetic Separator | Maximumoutput Current（DCA）: | 20 |
|---|---|---|---|
| Maximum Coil Power（KW）: | 11 | Insulation Method: | E |
| Cooling Method: | Water And Oil Double Cooling | Magnetic Lumen Diameter（mm）: | 250 |
| Yield（m³/h）: | 10-30 | Dimension（mm）: | 1200*1200*1850 |
| Mainmachine Weight （KG）: | 1210 | ||
| Highlight: | 380ACV Magnetic Separator Machine,Water Oil Cooling Magnetic Separator Machine,Water Cooling Electromagnetic Separator Machine |
||

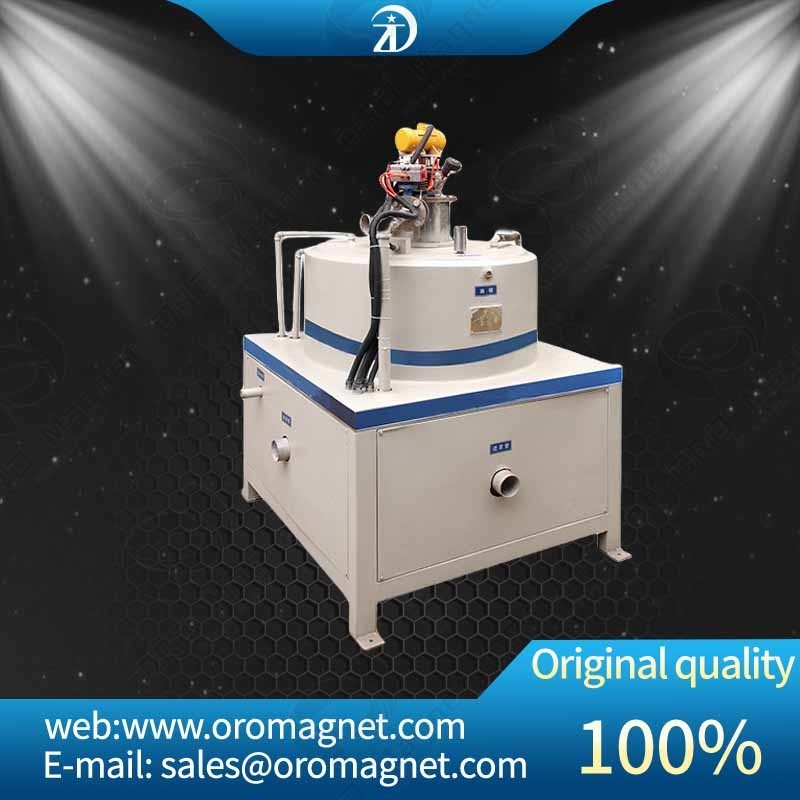

Electromagnetic Slurry Magnetic Separator Machine With Water Oil Cooling
380ACV Electromagnetic Slurry Magnetic Separator Machine With Water or Oil Cooling main use for non-metallic ore slurry
Foshan Zhongtai Machinery Company Limited is a national high-tech enterprise,owns a number of invention patents, with research and development production,major products are: magnetic separator for non-metallic mineral raw materials, ceramic glaze, metal, plastics, food and all kinds of industries.The main products are: electromagnetic Slurry separator, electromagnetic powder machine, permanent magnetic separator vertical ring electromagnetic separator,vertical ring permanent magnetic separator and different sizes of magnetic plates, magnetic rod, drawer type magnetic separator etc; Our company possesses professional technical team and sophisticated laboratory,can be customized for magnetic separator. Zhongtai Limited since 2014 get involved in domestic and international mineral processing engineering technology and the fields of whole line project design etc .
Product characteristic
1. High intensity magnetic field
2. Applying water to cool the machine
3. Brake valve applying the import material
4. An obvious efficiency in iron remove.
Operation process
Firstly, power on ,then open the admission valve and slurry valve, close the back slurry valve and iron discharging valve, then magnetizing. After a few minutes later(you can set the time what you like depending on yourself condition),close the admission valve and slurry valve, open the back slurry valve to discharge the remaining slurry in the separator, then magnetic cutting, close the admission valve, slurry valve and back slurry valve, open the iron discharging valve to discharge the magnetic material which are absorbed on the magnetic media.
Technology parameter of contrast
| Model | WJ160S-B-V-1.5 | WJ89B-V-3 | WJ220B-V-3 | WJ250-V-7 | WJ250-V-11 | WJ250-V-18.5 | WJ400-V-20 |
| Magnetic field strength(T) | 2.5 | 2.5 | 2 | 3 | 3.5 | 3 | 3.5 |
| Input voltage(ACV) | 220 | 380 | 380 | 380 | 380 | 380 | 380 |
| Maximumoutput current(DCA) | 10 | 7 | 9 | 20 | 20 | 55 | 25 |
| Maximum coil power(KW) | 1.5 | 3 | 3 | 7 | 11 | 18.5 | 20 |
| Insulation method | E | E | E | E | E | E | E |
| Cooling method | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | Water and oil double cooling |
| Magnetic lumen diameter(mm) | 160 | 89 | 220 | 250 | 250 | 250 | 400 |
| Pipe size(mm) | 50 | 50 | 50 | 89 | 89 | 89 | 89 |
| yield(m³/h) | 3-10 | 0.1-0.5 | 5-10 | 10-30 | 10-30 | 10-30 | 20-60 |
| dimension(mm) | 946(H) | 500*500*1000 | 1326*1167*1452 | 1522*1260*1608 | 1200*1200*1850 | 1400*1400*1850 | 1500*1500*1850 |
| Main machine weight | 180 | 250 | 800 | 1070 | 1210 | 1500 | 3000 |
| (KG) | |||||||
| Usage | Applicable for 40-400 mesh feedstock of iron elimination | ||||||
Application scope
Electromagnetic slurry separators are widely used in the ceramic, mine, chemical, electron, and food industries to remove the iron and magnetic material from those raw material.
For example:
organic chemical industry and related equipment,organic chemical industry and related equipment, Fine chemicals and related equipment,paper treatment ,paper pulp treatment,fiber stuff treatment,food treatment ,flavoring treatment ,grain and oil treatment,water treatmen ,Quartz Beneficiation,Sodium potassium feldspar Beneficiation,Kaolin Beneficiation.
