Product Details:
|
| Input Voltage（ACV）: | 380 | Maximum Output Current（DCA）: | 280 |
|---|---|---|---|
| Maxiumum Coil Power（KW）: | 0-120 | Cooling Method: | Water Cooling And Oil-cooling |
| Pipe Size（mm）: | 219 | Yield（m³/h）: | 83-200 |
| High Light: | magnetic separator for grinding machine,magnetic roll separator |
||

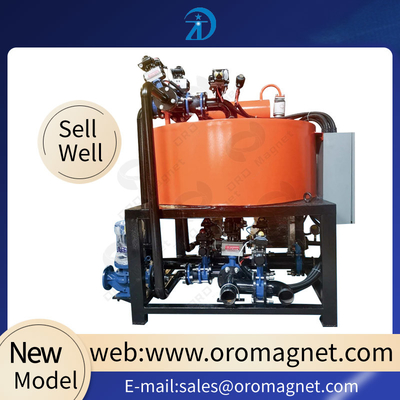

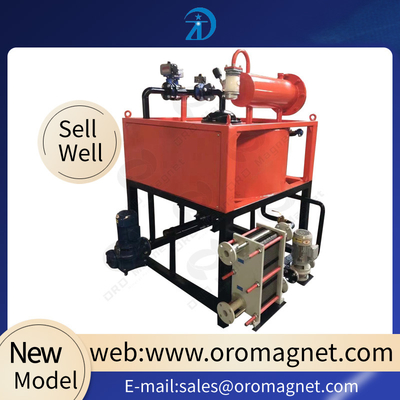

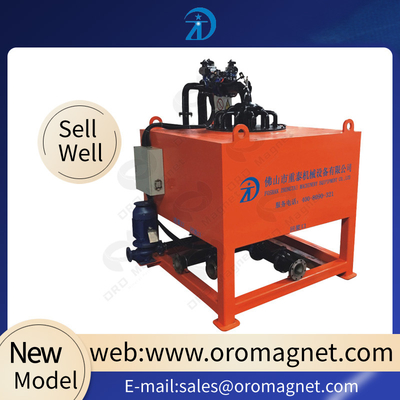

Oil cooling high intensity wet slurry magnetic separator for feldspar and clay
Product Introduction
Used for :recycling, timber industry, mining, chemical, food and other works, is suitable for size 3 mm below the magnetite, pyrrhotite, roasted ore and ilmenite wet magnetic separation of materials, also used in coal, non-metallic mineral, building materials and other materials in addition to iron, is the industry one of the most widely used, high commonality models.
Suitable material : size 3 mm below the magnetite, pyrrhotite, roasted ore, titanium ore, coal, nonmetalliferous ore and other materials
Feature
1.High-intensity magnetic filed :high gradient magnetic filed,and the highest working magnetic filed intensity can reach 18000~20000 Gauss.
2.High quality magnetic material:the properties of magnetic material above N50 is nummber one in De-ironing industry ,the magnetic material has long use time, and demagnetization rate is less than 3% in 5 years.
3.Strong iron removal:the efficiency of the iron magnetic material that the mesh size is more than 200 mesh is up to 98%,it can effectively improve the quality and whiteness of the body.
4.Automatic controlling: automaticly wash iron impurities, to achieve human-machine interaction, continuous work is available
5.Low energy consumption:reducing the production costs.
