Product Details:
|
| Product Capacity(T): | 4-10 | Magnetic Field Intension(GS): | 15000 |
|---|---|---|---|
| Magnetic Roller Specification(mm): | φ150 X 1200 | Input Voltage(V): | 380 |
| Belt Rotation Quantity(cycle/min): | 46 | Motor Rotation Quantity(RPM): | 1390 |
| Highlight: | low intensity magnetic separator,conveyor magnetic separator |
||
Dry Type Magnetic Roller Separator From ZT With Door-to-door After Service

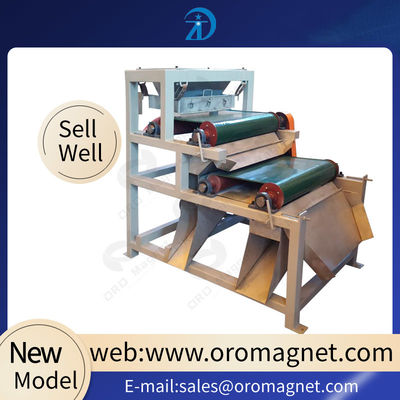

Dry Magnetic Roller Separation consists of permanent roll made of NdFeB disks interleaved with pure iron disk, idle roll, conveying thin belt, adjustable splitter and vibratory feeder. Operation of the separator is so simple that material to be treated is fed by the vibratory feeder onto conveying thin belt, magnetic particles are attracted to the roll and discharged into a “M” separate chute, while non-magnetic particles are discharged from the roll a “NM” chute.
|
Product capacity(T) |
4-10 |
|
Magnetic field intension(GS) |
15000 |
|
Magnetic roller specification(mm) |
φ150 X 1200 |
|
Power(KW) |
1.5 |
|
Input voltage(V) |
380 |
|
Motor rotation quantity(RPM) |
1390 |
|
Belt rotation quantity(cycle/min) |
46 |
Applications:
1. Separating or purifying the coarse weakly magnetic ore (such as hematite, ilmenite, manganese etc)
2. concentration of non-ferrous ore (such as quartz, feldspar, andalusite ete).
3. Removal of ferrous imparities from abrasives, catalysts and other powder.
