Product Details:
|
| Model: | 15A220 | Magnetic Field Strength（T）: | 5 |
|---|---|---|---|
| Inputvoltage（ACV）: | 380 | Maximum Output Current（DCA）: | 30 |
| Maximum Coil Power（KW）: | 15 | Insulation Method: | E |
| Cooling Method: | Water And Oil Double Cooling | Magnetic Lumen Diameter（mm）: | 220 |
| Yield（T）: | 1-3 | Dimension（mm）: | 1350*1100*1850 |
| Main Machine Weight （KG）: | 1500 | Usage: | Applicable For 60-300 Mesh Feedstock Of Iron Elimination |
| High Light: | Electro magnetic Separator,wet drum separator |
||

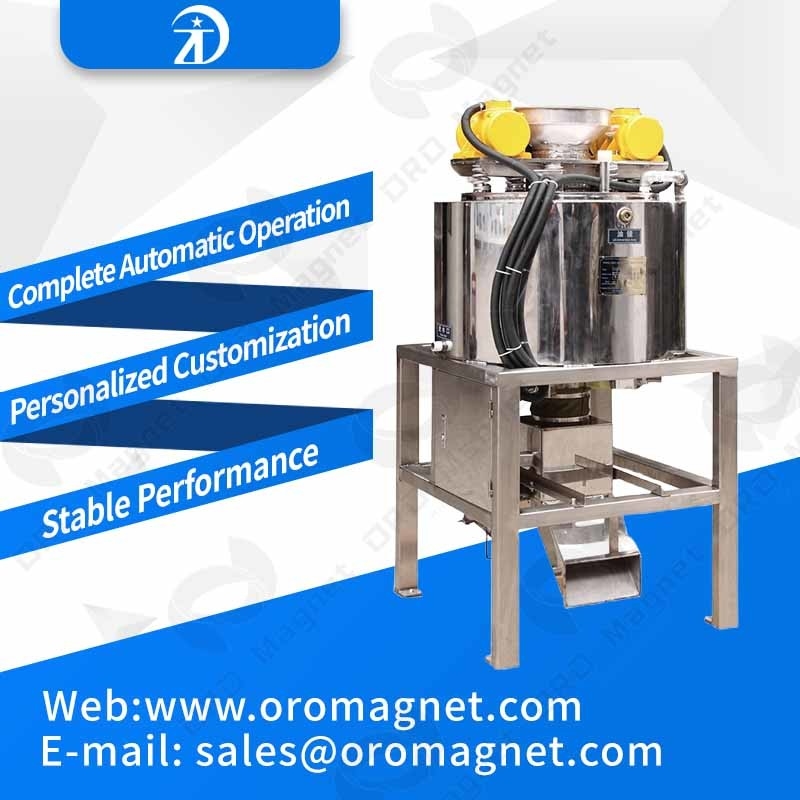

5T 380ACV 30DCA Eletromagnetic separator for Dried-powder double cooling
Product characteristic
1. Can design different magnetic field intensity as the property of raw ores.
2. Doesn’t need to come over the gravity and resistance of the raw material.
3. With the mechanical vibrating equipment.
4. Efficiency of iron remove.
Operation process
Feed the dry powder from the hopper, meanwhile make the separator state at the magnetizing and run a vibrator. After a period ,stop feeding, cut off the magnetic device, run the other vibrator(keep the two vibrator running), poke the raffle of drain of material funnel into the iron discharge. Then discharge the magnetic material absorbed on the magnetic media relying on the vibrating force.
Application scope
Electromagnetic dried-powder separators are applied in process the fine mineral particle, the magnetic fine ferrous mineral particle such as hematite, chromite, polianite; and also fine nonferrous metals mineral particle, for example wolframite; fine rare earth mineral particle, for example eremite; and fine nonmetallic mineral particle such as feldspar, quartz, kaolin.
Electromagnetic dried-powder separators are suitable for using at the drought and water shortage area.
Technical parameter
|
Model |
3A160 |
3A220 |
7A300 |
11A220 |
11A430 |
15A220 |
20A600 |
|
Magnetic field strength(T) |
2 |
2 |
3 |
3 |
3 |
5 |
3 |
|
Input voltage(ACV) |
380 |
220 |
380 |
380 |
380 |
380 |
380 |
|
Maximum output current(DCA) |
15 |
7 |
20 |
20 |
20 |
30 |
40 |
|
Maximum coil power(KW) |
3 |
3 |
7 |
11 |
11 |
15 |
20 |
|
Insulation method |
E |
E |
E |
E |
E |
E |
E |
|
Cooling method |
water and oil double cooling |
water and oil double cooling |
water and oil double cooling |
water and oil double cooling |
water and oil double cooling |
water and oil double cooling |
water and oil double cooling |
|
Magnetic lumen diameter(mm) |
160 |
220 |
300 |
220 |
430 |
220 |
600 |
|
yield(T) |
0.5-1.5 |
1-3 |
1.5-4 |
0.5-3 |
1.5-6 |
|
|
|
dimension(mm) |
700*700*1450 |
860*860* 1540 |
1320*1320* 2500 |
1300*1100* 1800 |
1500*1500* 2500 |
1350*1100*1850 |
1500*1500*2000 |
|
Main machine weight (KG) |
450 |
490 |
1020 |
1130 |
1210 |
1500 |
2000 |
|
Usage |
Applicable for 60-300 mesh feedstock of iron elimination |
||||||
