Product Details:
|
| Input Voltage（ACV）: | 380 | Maximumoutput Current（DCA）: | 7 |
|---|---|---|---|
| Maximum Coil Power（KW）: | 3 | Insulation Method: | E |
| Cooling Method: | Water And Oil Double Cooling | Magnetic Lumen Diameter（mm）: | 220 |
| Yield（m³/h）: | 5-7 | Dimension（mm）: | 1326*1167*1452 |
| Mainmachine Weight （KG）: | 800 | Usage: | Applicable For 40-400 Mesh Feedstock Of Iron Elimination |
| Apply: | Electromagnetic Separation Of Ores | ||
| Highlight: | induced roll magnetic separator,wet drum separator |
||

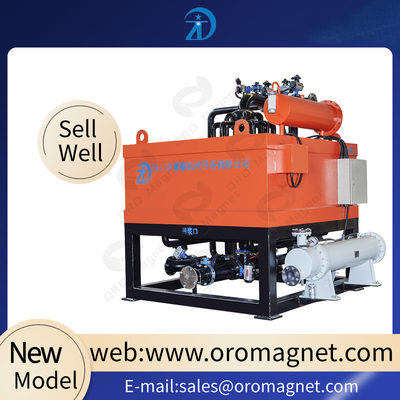

Electromagnetic Separator Efficiency Magnetic Iron Separator
Company profile
Foshan Wandaye Machinery Company Limited is a national high-tech enterprise, owns a number of invention patents, with research and development production, major products are: magnetic separator for non-metallic mineral raw materials, ceramic glaze, metal, plastics, food and all kinds of industries. The main products are: electromagnetic Slurry separator, electromagnetic powder machine, permanent magnetic separator vertical ring electromagnetic separator, vertical ring permanent magnetic separator and different sizes of magnetic plates, magnetic rod, drawer type magnetic separator etc; Our company possesses professional technical team and sophisticated laboratory, can be customized for magnetic separator. Wandaye Limited since 2014 get involved in domestic and international mineral processing engineering technology and the fields of whole line project design etc.
Product characteristic
An obvious efficiency in iron remove
Netting is made from the special material
The valve have a good quality
Applying water to cool the machine
Operation process
Firstly, power on, then open the admission valve and slurry valve, close the back slurry valve and iron discharging valve, then magnetizing.
After a few minutes later(you can set the time what you like depending on yourself condition),close the admission valve and slurry valve, open the back slurry valve to discharge the remaining slurry in the separator.
Then magnetic cutting, close the admission valve, slurry valve and back slurry valve, open the iron discharging valve to discharge the magnetic material which are absorbed on the magnetic media.
Application scope
Electromagnetic slurry separators are widely used in the mine, chemical and food industries to remove the iron and magnetic material from those raw material.
For example:organic chemical industry and related equipment,organic chemical industry and related equipment, Fine chemicals and related equipment,paper treatment ,paper pulp treatment,fiber stuff treatment,food treatment ,flavoring treatment ,grain and oil treatment,water treatmen ,Quartz Beneficiation,Sodium potassium feldspar Beneficiation,Kaolin Beneficiation
Technical parameter
| Model | ZT160S-B-V-1.5 | ZT89B-V-3 | ZT220B-V-3 | ZT250-V-7 | ZT250-V-11 | ZT250-V-18.5 | ZT400-V-20 |
| Magnetic field strength(T) | 2.5 | 2.5 | 2 | 3 | 3.5 | 3 | 3.5 |
| Input voltage(ACV) | 220 | 380 | 380 | 380 | 380 | 380 | 380 |
| Maximumoutput current(DCA) | 10 | 7 | 9 | 20 | 20 | 55 | 25 |
| Maximum coil power(KW) | 1.5 | 3 | 3 | 7 | 11 | 18.5 | 20 |
| Insulation method | E | E | E | E | E | E | E |
| Cooling method | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | Water and oil double cooling |
| Magnetic lumen diameter(mm) | 160 | 89 | 220 | 250 | 250 | 250 | 400 |
| Pipe size(mm) | 50 | 50 | 50 | 89 | 89 | 89 | 89 |
| yield(m³/h) | 3-10 | 0.1-0.5 | 5-10 | 10-30 | 10-30 | 10-30 | 20-60 |
| dimension(mm) | 946(H) | 500*500*1000 | 1326*1167*1452 | 1522*1260*1608 | 1200*1200*1850 | 1400*1400*1850 | 1500*1500*1850 |
| Main machine weight | 180 | 250 | 800 | 1070 | 1210 | 1500 | 3000 |
| (KG) | |||||||
| Usage | Applicable for 40-400 mesh feedstock of iron elimination | ||||||
Clients processing photos
