|Input Voltage（ACV）:||220||Maximumoutput Current（DCA）:||9|
|Maximum Coil Power（KW）:||3||Insulation Method:||E|
|Magnetic Lumen Diameter（mm）:||220||Yield（m³/h）:||5-10|
|Dimension（mm）:||1326*1167*1452||Mainmachine Weight （KG）:||800|
magnetic separator equipment,
magnetic separator for iron ore

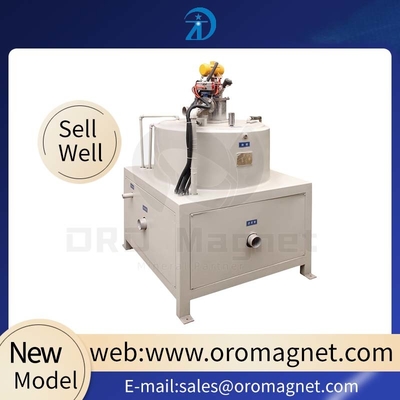

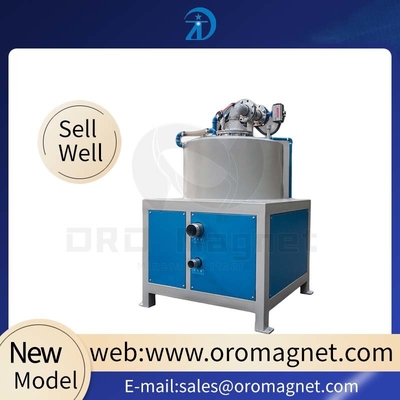

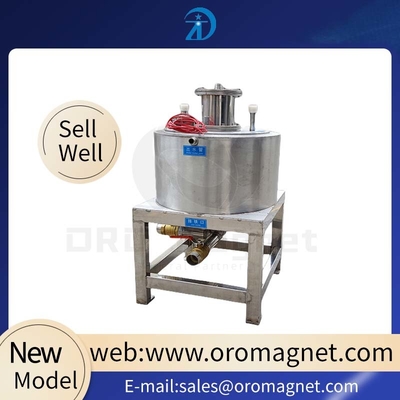

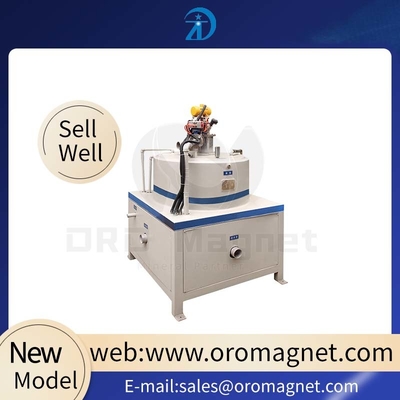

Non Metallic Mineral Raw Materials Magnetic Ore Separator Professional suitable for ceramic slurry and mixture Liquid
Foshan Wandaye Machinery Company Limited is a national high-tech enterprise,owns a number of invention patents, with research and development production,major products are: magnetic separator for non-metallic mineral raw materials, ceramic glaze, metal, plastics, food and all kinds of industries.The main products are: electromagnetic Slurry separator, electromagnetic powder machine, permanent magnetic separator vertical ring electromagnetic separator,vertical ring permanent magnetic separator and different sizes of magnetic plates, magnetic rod, drawer type magnetic separator etc; Our company possesses professional technical team and sophisticated laboratory,can be customized for magnetic separator. Wandaye Limited since 2014 get involved in domestic and international mineral processing engineering technology and the fields of whole line project design etc .
Magnetic Iron Separator is used in materials such as magnetite, pyrrhotine, roasted ore and ilmenite, etc. and it is also applicable for iron removal working of such materials as coal, nonmetal and building materials, etc. Working: The mineral slurry flows into the cell through box feeder of Magnetic Iron Separator, the mineral particle is loose under the function of water flow of feeder water pipe when they flow into the cell. Affected by magnetic field, the magnetic particle swarm together and form magnetic cluster or chain. With the magnetism of mineral slurry, the magnetic cluster or chain moves toward the magnetic pole, and is absorbed to the cylinder. Because of the polarity of magnetic pole, the revolving directions alternate constantly, and remain fixed when it is working. When the magnetic cluster and chain go round and round along with the cylinder, the mingled gangue and other non-magnetic ore fall down due to the mixing phenomena produced by alternation of magnetic poles, and it is concentrate that is absorbed to the cylinder surface. The concentrate moves to the end of magnetic system where the magnetism is weakest along with the revolving cylinder, and is discharged into concentrate tank by the current ejected by the discharging-ore pipe. The non-magnetic or weak magnetic remained are discharged along with the mineral slurry, and they are gangue.
Technology parameter of contrast
|Magnetic field strength(T)||2.5||2.5||2||3||3.5||3||3.5|
|Maximum coil power(KW)||1.5||3||3||7||11||18.5||20|
|Cooling method||water and oil double cooling||water and oil double cooling||water and oil double cooling||water and oil double cooling||water and oil double cooling||water and oil double cooling||Water and oil double cooling|
|Magnetic lumen diameter(mm)||160||89||220||250||250||250||400|
|Main machine weight||180||250||800||1070||1210||1500||3000|
|Usage||Applicable for 40-400 mesh feedstock of iron elimination|
Electromagnetic slurry separators are widely used in the ceramic, mine, chemical, electron, and food industries to remove the iron and magnetic material from those raw material.
