Product Details:
|
| Model: | WG600V-20 | Magnetic Field Strength（T）: | 3 |
|---|---|---|---|
| Inputvoltage（ACV）: | 380 | Maximum Output Current（DCA）: | 40 |
| Maximum Coil Power（KW）: | 20 | Insulation Method: | E |
| Cooling Method: | Water And Oil Double Cooling | Magnetic Lumen Diameter（mm）: | 600 |
| Yield（T）: | 3-8 | Dimension（mm）: | 1500*1500*2000 |
| Main Machine Weight （KG）: | 2000 | Usage: | Applicable For 60-300 Mesh Feedstock Of Iron Elimination |
| High Light: | magnetic roll separator,metal separation equipment |
||

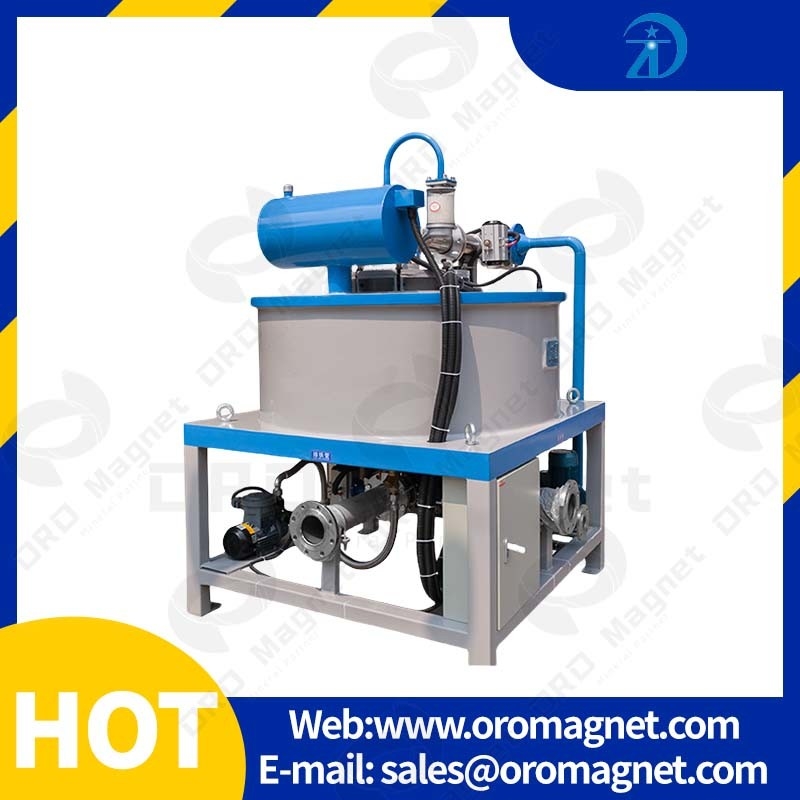

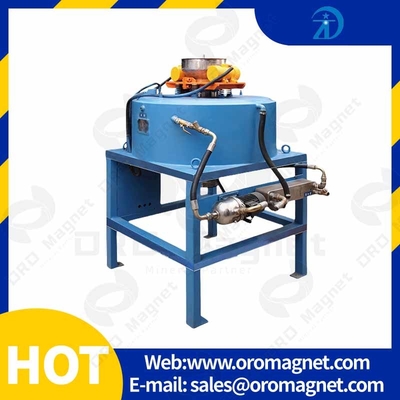

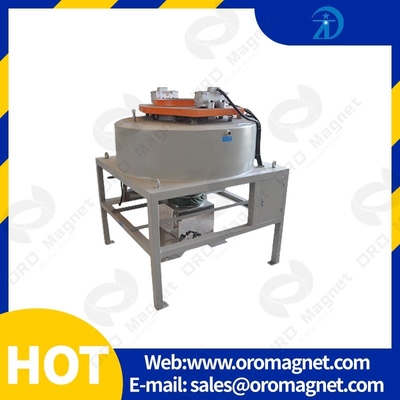

Electromagnet Magnetic Gold Separator Durable Magnetic Separator Equipment
Electromagnetic Separator consists of a strong Electromagnet which can control strength of magnetic force and classified into Auto Cleaning type and Manual Cleaning type according to a scrap belt for transfer and discharge whether or not.
We are among the prominent manufacturers and exporters of Electromagnetic Separators. These are widely utilized for removing large tramp metal contamination from a flow of materials. These comprise of a powerful magnet that has a long functional life. These magnets are functional as long as the power is switched on. Therefore, for cleaning them, the power source must be turned off for them to drop the ferrous material thus extracted.
Benefits:
Technical Parameters
| Model | WG160B-V-3 | WG220B-V-3 | WG300-V-7 | WG220B-V-11 | WG430-V-11 | WG220-V-15 | WG600-V-20 |
| Magnetic field strength(t) | 2 | 2 | 3 | 3 | 3 | 5 | 3 |
| Input voltage(VAC) | 380 | 220 | 380 | 380 | 380 | 380 | 380 |
| Maximun output current(A) | 15 | 7 | 20 | 20 | 20 | 30 | 40 |
| Maximum coil power(KW) | 3 | 3 | 7 | 11 | 11 | 15 | 20 |
| Insulation category | E | E | E | E | E | E | E |
| Cooling method | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling |
| Magnetic lumen diameter(mm) | 160 | 220 | 300 | 220 | 430 | 220 | 600 |
| Yield(m3/h) | 0.5-1.5 | 43833 | 1.5-4 | 0.5-3 | 1.5-6 | 1-3 | 3-8 |
| Dimension(mm) | 700*700 | 860*860 | 1320*1320 | 1300*110 | 1500*1500 | 1350*1100 | 1500*1500 |
| *1450 | *1540 | *2500 | *1800 | *2500 | *1850 | *2000 | |
| Main machine weight(kg) | 450 | 490 | 1020 | 1130 | 1210 | 1500 | 2000 |
| Usage | 60-300 mesh feedstock of iron elimination | ||||||
