Power Wet Magnetic Separator Equipment Electromagnetic Separators

Power Wet Magnetic Separator Equipment Electromagnetic Separators
Power Wet Magnetic Separator Equipment Electromagnetic Separators Power Wet Magnetic Separator Equipment Electromagnetic Separators Power Wet Magnetic Separator Equipment Electromagnetic Separators Power Wet Magnetic Separator Equipment Electromagnetic Separators

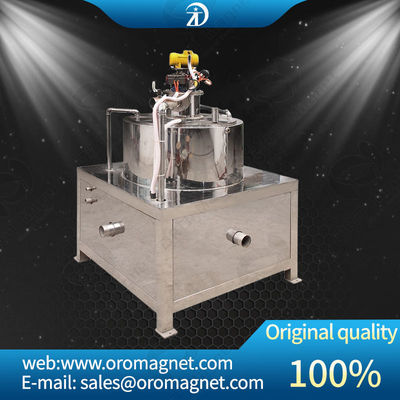

Large Image :  Power Wet Magnetic Separator Equipment Electromagnetic Separators

Product Details:
Place of Origin: FOSHAN,CHINA
Brand Name: ZT
Certification: ISO9001:2008
Model Number: 20A400
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Film And Wooden Case
Delivery Time: Within 30 days after the advance payment is made
Supply Ability: 50 SETS PER MONTH

Power Wet Magnetic Separator Equipment Electromagnetic Separators

Description
Weight: 1.2-5.1T Warranty: 12 Months
Voltage: 220-480 After-sales Service Provided: Field Installation,commissioning And Training,Video Technical Support
Type: Magnetic Separator Condition: New
Production Capacity: Depend On The Model Application: Mining,Sea Sand,Quarry,mineral Beneficiation,fine Magnetic Separator
Installation: Engineer Guide,Under Guidance Power(w): 1.1-11KW
Feeding Size: 0-6mm Product Name: Manganese Ore Magnetic Separator,High-intensity Limonite Iron Ore Wet Magnetic Separator
High Light:

magnetic roller separator

,

dry drum magnetic separator

Power Magnetic Separation Equipment Electromagnetic Separators



Electromagnetic separators have a number of distinct advantages.

  • Fields to magnetize the collecting elements can be matched to the separation requirements, from about 1 through 20 kilogauss in the empty separating space.
  • Large volumes of magnetized matrix spaces can be generated to meet processing needs.
  • Separating spaces can be filled with a virtually endless variety of matrix elements.
  • The magnetic field can be conveniently turned off to allow easy cleaning of the matrix, making it possible to automate the cleaning cycle.
  • Equipment can be designed to meet unusual processing conditions including high temperature, high pressure and many corrosive products.
  • Equipment is available for use in hazardous environments.

Operation process



Firstly, power on ,then open the admission valve and slurry valve, close the back slurry valve and iron discharging valve, then magnetizing.

After a few minutes later(you can set the time what you like depending on yourself condition),close the admission valve and slurry valve, open the back slurry valve to discharge the remaining slurry in the separator, then magnetic cutting, close the admission valve, slurry valve and back slurry valve, open the iron discharging valve to discharge the magnetic material which are absorbed on the magnetic media.





Application scope



Electromagnetic slurry separators are widely used in the ceramic, mine, chemical, electron, and food industries to remove the iron and magnetic material from those raw material.



For example:

organic chemical industry and related equipment,organic chemical industry and  related equipment, Fine chemicals and  related equipment,paper treatment ,paper pulp treatment,fiber stuff treatment,food  treatment ,flavoring treatment ,grain and oil treatment,water treatmen ,Quartz Beneficiation,Sodium potassium feldspar  Beneficiation,Kaolin Beneficiation





Technical parameters of contrast



Model

1.5A160

3A89

3A190

7A250

7A300

11A250

18.5A250

Magnetic field strength(T)

2.5

2.5

2

3

3

3.5

3

Input voltage(ACV)

220

380

220

380

380

380

380

Maximumoutput current(DCA)

10

7

7

20

20

20

55

Maximum coil power(KW)

1.5

3

3

7

7

11

18.5

Insulation method

E

E

E

E

E

E

E

Cooling method

water and oil double cooling

water and oil double cooling

water and oil double cooling

water and oil double cooling

water and oil double cooling

water and oil double cooling

water and oil double cooling

Magnetic lumen diameter(mm)

160

89

190

250

300

250

250

Pipe size(mm)

50

50

50

89

89

89

89

yield(m³/h)

3-10

0.1-0.5

5-10

10-30

15-30

10-30

10-30

dimension(mm)

946(H)

500*500*

1000

860*860*

1540

1200*1200*

1850

1200*1200*

1850

1200*1200*

1850

1400*1400*1850

Main machine weight

(KG)

180

250

510

1050

1070

1210

1500

Usage

Applicable for 40-400 mesh feedstock of iron elimination
