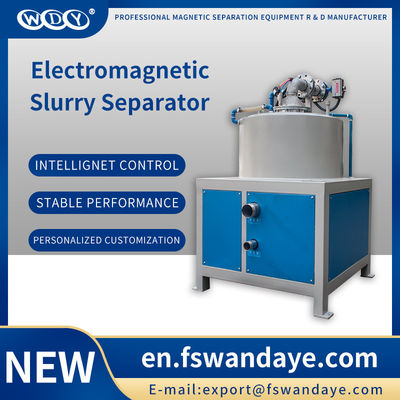

Oil Double Cooling Induced Wet Magnetic Separator Easy To Discharge The Iron ceramic slurry

Oil Double Cooling Induced Wet Magnetic Separator Easy To Discharge The Iron ceramic slurry
Oil Double Cooling Induced Wet Magnetic Separator Easy To Discharge The Iron ceramic slurry Oil Double Cooling Induced Wet Magnetic Separator Easy To Discharge The Iron ceramic slurry Oil Double Cooling Induced Wet Magnetic Separator Easy To Discharge The Iron ceramic slurry

Large Image :  Oil Double Cooling Induced Wet Magnetic Separator Easy To Discharge The Iron ceramic slurry

Product Details:
Place of Origin: FOSHAN.CHINA
Brand Name: ZT
Certification: ISO9001:2008
Model Number: WJ250T
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Film and wooden case
Delivery Time: Within 30 days after the advance payment is made
Payment Terms: T/T, Western Union
Supply Ability: 30 set/sets per month

Oil Double Cooling Induced Wet Magnetic Separator Easy To Discharge The Iron ceramic slurry

Description
Input Voltage(ACV): 380 Maximumoutput Current(DCA): 20
Maximum Coil Power(KW): 11 Insulation Method: E
Cooling Method: Water And Oil Double Cooling Magnetic Lumen Diameter(mm): 250
Pipe Size(mm): 89 Yield(m³/h): 15-30
Dimension(mm): 1200*1200* 1850 Mainmachine Weight (KG): 180
High Light:

rare - earth magnetic separator

,

dry drum magnetic separator



Good Quality Wet High-Intensity Magnetic Separator For Iron Sand





Product characteristi



1. High gradient magnetic field .

2. Applying water to cool the machine, enhanced the life span of the machine.

3. The valve have a good quality and can be durable.

4. Very easy to discharge the iron.





Operation process



Firstly, power on ,then open the admission valve and slurry valve, close the back slurry valve and iron discharging valve, then magnetizing. After a few minutes later(you can set the time what you like depending on yourself condition),close the admission valve and slurry valve, open the back slurry valve to discharge the remaining slurry in the separator, then magnetic cutting, close the admission valve, slurry valve and back slurry valve, open the iron discharging valve to discharge the magnetic material which are absorbed on the magnetic media.





Technology parameter of contrast




Model WJ160S-B-V-1.5 WJ89B-V-3 WJ190B-V-3 WJ250-V-7 WJ250-V-11 WJ250-V-18.5 WJ400-V-20
Magnetic field strength(T) 2.5 2.5 2 3 3.5 3 3.5
Input voltage(ACV) 220 380 220 380 380 380 380
Maximumoutput current(DCA) 10 7 7 20 20 55 25
Maximum coil power(KW) 1.5 3 3 7 11 18.5 20
Insulation method E E E E E E E
Cooling method water and oil double cooling water and oil double cooling water and oil double cooling water and oil double cooling water and oil double cooling water and oil double cooling Water and oil double cooling
Magnetic lumen diameter(mm) 160 89 190 250 250 250 400
Pipe size(mm) 50 50 50 89 89 89 89
yield(m³/h) 3-10 0.1-0.5 5-10 10-30 10-30 10-30 20-60
dimension(mm) 946(H) 500*500*1000 860*860*1540 1200*1200*1850 1200*1200*1850 1400*1400*1850 1500*1500*1850
Main machine weight 180 250 510 1050 1210 1500 3000
(KG)
Usage Applicable for 40-400 mesh feedstock of iron elimination





Application scope



Electromagnetic slurry separators are widely used in the ceramic, mine, chemical, electron, and food industries to remove the iron and magnetic material from those raw material.





Oil Double Cooling Induced Wet Magnetic Separator Easy To Discharge The Iron ceramic slurry 0





Oil Double Cooling Induced Wet Magnetic Separator Easy To Discharge The Iron ceramic slurry 1
