Product Details:
|
| Model: | WG430-V-50 | Magnetic Field Strength（T）: | 3.5 |
|---|---|---|---|
| Inputvoltage（ACV）: | 380 | Maximum Output Current（DCA）: | 100 |
| Maximum Coil Power（KW）: | 50 | Insulation Method: | E |
| Cooling Method: | Water And Oil Double Cooling | Magnetic Lumen Diameter（mm）: | 430 |
| Yield（T）: | 4-6 | Dimension（mm）: | 2414*2100*2400 |
| Main Machine Weight （KG）: | 11500 | Usage: | Applicable For 60-300 Mesh Feedstock Of Iron Elimination |
| High Light: | magnetic separator for grinding machine,magnetic roll separator |
||

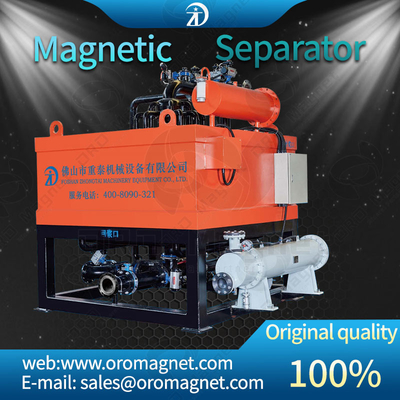

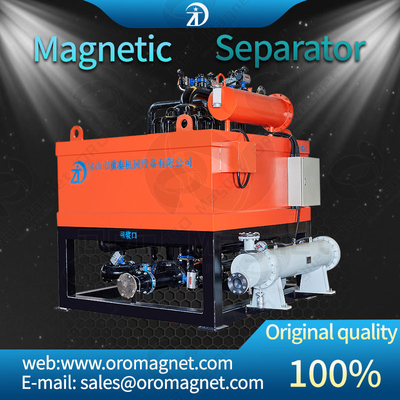

Magnetic Separator Machine Automatic Eletromagnetic Separator for Dried-powder 3T
Product characteristic
1. Water and oil dual cooling, stable performance.
2.Intelligent control, there is no need to manual operation
3.New magnetic medium material, better separation of iron and titanium impurities.
4.The strength of the magnetic field can be adjusted according to the material.
Operation process
1. Feed the dry powder from the hopper, meanwhile make the separator state at the magnetizing and run a vibrator.
2. After a period ,stop feeding, cut off the magnetic device, run the other vibrator(keep the two vibrator running), poke the raffle of drain of material funnel into the iron discharge.
3. Then discharge the magnetic material absorbed on the magnetic media relying on the vibrating force.
Application scope
Electromagnetic dried-powder separators are applied in process the fine mineral, the magnetic fine ferrous mineral particle such as hematite, martite, limonite, chromite, polianite; and also fine nonferrous metals mineral particle, for example wolframite; fine rare earth mineral particle, for example eremite; and fine nonmetallic mineral particle such as feldspar, quartz, kaolin.
Electromagnetic dried-powder separators are suitable for using at the drought and water shortage area.
Technical parameter
| Model | WG300-V-25 | WG430-V-25 | WG430-V-50 |
| Magnetic field strength(t) | 2.5 | 2.5 | 3.5 |
| Input voltage(VAC) | 380 | 380 | 380 |
| Maximun output current(A) | 47 | 47 | 100 |
| Maximum coil power(KW) | 25 | 25 | 50 |
| Insulation category | E | E | E |
| Cooling method | water and oil cooling | water and oil cooling | water and oil cooling |
| Magnetic lumen diameter(mm) | 300 | 430 | 430 |
| Yield(m3/h) | 1-2 | 2-3 | 4-6 |
| Dimension(mm) | 1600*1500 | 1750*1650 | 2414*2100 |
| *2075 | *2075 | *2400 | |
| Main machine weight(kg) | 2100 | 2200 | 11500 |
| Usage | 60-300 mesh feedstock of iron elimination | ||
Client case
Finished products after our magnetic machine The magnetized tailing be detached by our machine
