Product Details:
|
| Magnetic Field Intensity: | High | Installation: | Simple |
|---|---|---|---|
| Operation: | Automatic | Working Temperature: | Normal |
| Maintenance: | Easy | Working Environment: | Wet |
| Material: | Steel | Warranty: | 2 Years |
| Voltage: | Clients Local Standard | After-sales Service Provided: | Online Support,Video Technical Support |
| Type: | Magnetic Separator | Condition: | New |
Our company has recently completed researching and developing a series of permanent high strength magnetic flat type magnetic separators. This magnetic separator equipment is specially designed for high gradient and high intensity.
This equipment is mainly used for removal of 1.2mm fine non-metallic minerals, such as nepheline, quartz, and feldspar. Additionally, it can be used in the purifying process of red iron ore (hematite, limonite, garnet and siderite, etc.), manganese ore, ilmenite, and kaolin, for removing iron impurities.
Specification:
| Model | Magnetic Separation Area Size | Processing Capacity | Feed Concentration | Highest Magnetic Field Strength | Granularity | Power |
| ZT-0815P | 800*1500mm | 5-8t/h | 20%-25% | 9000-14000gs | <2mm | 1.1kw |
| ZT-1020P | 1000*2000mm | 7-10t/h | 20%-25% | 9000-14000gs | <2mm | 1.5kw |
| ZT-1525P | 1500*2500mm | 10-15t/h | 20%-25% | 9000-14000gs | <2mm | 2.2kw |
| ZT-1530P | 1500*3000mm | 12-18t/h | 20%-25% | 9000-14000gs | <2mm | 3.0kw |
| ZT-2025P | 2000*2500mm | 16-20t/h | 20%-25% | 9000-14000gs | <2mm | 4.0kw |
| ZT-2030P | 2000*3000mm | 18-22t/h | 20%-25% | 9000-14000gs | <2mm | 5.5kw |
Terrace magnetic separator is mainly used for the 1.2 mm fine non-metallic minerals, such as nepheline, quartz, feldspar and so on. Additionally, it plays an important role in removing iron impurities from red iron ore (including hematite, limonite, garnet and siderite, etc.), manganese ore, ilmenite and kaolin in order to purify them.
Brand Name: ZT
Model Number: ZT-1525P
Place of Origin: Foshan, Guangdong, China
Certification: ISO9001
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Exporting Package
Delivery Time: Within 35 days after downpayment
Payment Terms: L/C,T/T
Supply Ability: 50 sets per month
Working Temperature: Normal
Operation: Automatic
Material: Steel
Installation: Simple

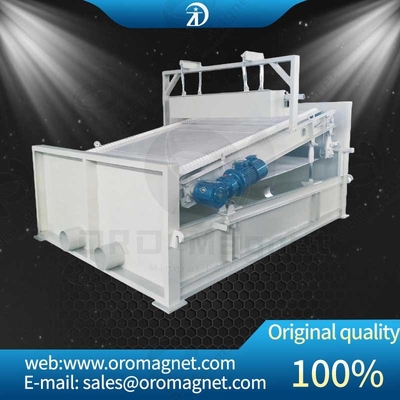

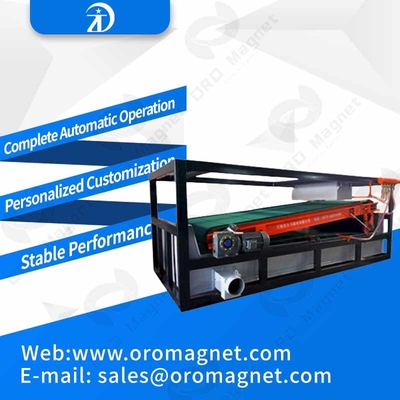

Name: High Gradient Magnetic Separator
This High Gradient Magnetic Separator is a kind of Iron Plate Magnetic Separator, Plate Magnetic Separator, Plate Type Magnetic Separator.
Product Catalog Download Here:
High Intensity Plate Type Magnetic Separator Catal...
High Gradient Magnetic Separator technical support and service includes:
Packaging and Shipping for High Gradient Magnetic Separator:
Q1: What is the brand name of this High Gradient Magnetic Separator?
A1: The brand name is ZT.
Q2: What is the model number of this High Gradient Magnetic Separator?
A2: The model number is ZT-1525P.
Q3: Where is this High Gradient Magnetic Separator manufactured?
A3: It is manufactured in Foshan, Guangdong, China.
Q4: What is the minimum order quantity of this High Gradient Magnetic Separator?
A4: The minimum order quantity is 1 Set.
Q5: What is the certification of this High Gradient Magnetic Separator?
A5: It is certified by ISO9001.
