Product Details:
|
| Maximum Output Current（DCA）: | 1400 | Maxiumum Coil Power（KW）: | 1000 |
|---|---|---|---|
| Insulation Method: | E | Cooling Method: | Water Cooling |
| Magnetic Lumen Diameter（mm）: | 1000 | Pipe Size（mm）: | 150 |
| Yield（m³/h）: | 50-100 | Demension（mm）: | 3052*2185*2814 |
| Main Machine Weight (kg): | 26000 | ||
| High Light: | Water Cooling Magnetic Separator Machine,low energy Magnetic Separator Machine,Kaolin Feldspar iron separator machine |
||

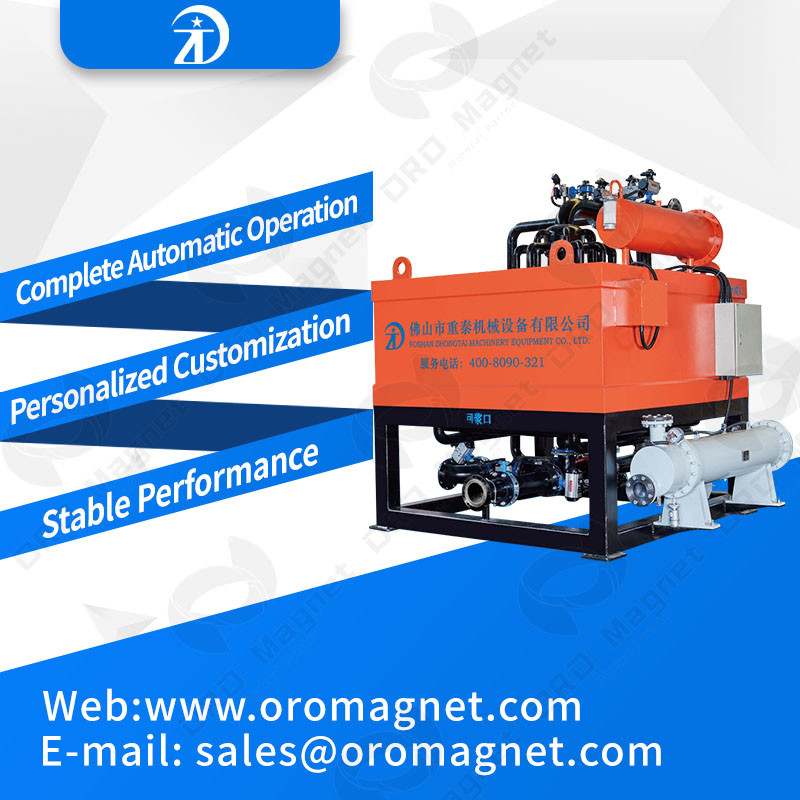

Water Cooling Magnetic Separator Machine For Kaolin Feldspar Ceramic Slurry
Product characteristic
Automatic Water-cooling Eletromagnetic Slurry Separator Series advantages :
1. High intensity magnetic field;
2. The temperature inside of the machine rises slowly;
3. The magnetic field intensity are not easy to decrease when the machine run for a long time;
4. Long working period;
5. Have a wide range of adaption in the particle of feeding ore and the thickness of slurry;
6. High efficiency in mineral processing;
7. Easy to manual and maintain.
Operation process
1. Firstly, power on, then open the admission valve and slurry valve, close the back slurry valve and iron discharging valve, then magnetizing.
2. After a few minutes later(you can set the time whatever you like depending on yourself condition),close the admission valve and slurry valve, open the back slurry valve to discharge the remaining slurry in the separator.
3. Then magnetic cutting, close the admission valve, slurry valve and back slurry valve, open the iron discharging valve to discharge the magnetic material which are absorbed on the magnetic media.
Application scope
Kaolin Beneficiation,Sodium potassium feldspar Beneficiation,Quartz Beneficiation.
1. Ferrous metals mineral: hematite, martite, limonite, siderite, chromite, polianite.
2. Non-ferrous metals mineral: used for separating wolframite from pyrope.
3. Rare earth ore: recycle tantalum-niobium ores and monazite.
4. other industries: iron ore, effluent of power station disposal, disposal of contaminated chemical raw material.
Technology parameter
| Model | WS500-V | WS750-V | WS1000-V | WY750-V | WY1000-VB | WY1200-V | WY1500-V |
| Magnetic field strength(T) | 2 | 2.5 | 2.5 | 2 | 2 | 2.5 | 3 |
| Input voltage(ACV) | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Maximum coil power(KW) | 75 | 103 | 150 | 82 | 120 | 150 | 180 |
| Insulation method | E | E | E | E | E | E | E |
| Cooling method | water cooling | water cooling | water cooling | oil cooling | oil cooling | oil cooling | oil cooling |
| Magnetic lumen diameter(mm) | 500 | 750 | 1000 | 750 | 1000 | 1200 | 1500 |
| Pipe size(mm) | 100 | 150 | 200 | 150 | 200 | 250 | 300 |
| yield(m³/h) | 20-45 | 30-65 | 50-100 | 30-65 | 50-100 | 50-150 | 70-180 |
| dimension(mm) | 2328*1745*2642 |
2659* 1978*2518 |
3052* 2185*2814 |
2958* 2294*3091 |
3503* 2658*3392 |
3950* 2926*3746 |
4349* 3180*3706 |
| Main machine weight | 14000 | 16600 | 26000 | 16000 | 28000 | 53000 | 65000 |
| (KG) | |||||||
| Usage | Applicable for 40-400 mesh feedstock of iron elimination | ||||||
Customer's processing case
