Product Details:
|
| Input Voltage（ACV）: | 380 | Maximumoutput Current（DCA）: | 7 |
|---|---|---|---|
| Maximum Coil Power（KW）: | 3 | Insulation Method: | E |
| Magnetic Lumen Diameter（mm）: | 220 | Yield（m³/h）: | 5-10m3/h |
| Dimension（mm）: | 1326*1167*1452 | Mainmachine Weight （KG）: | 800 |
| High Light: | 10m3/h Wet Magnetic Separator,3.5T Wet Magnetic Separator,3.5T Magnetic Iron Separator |
||

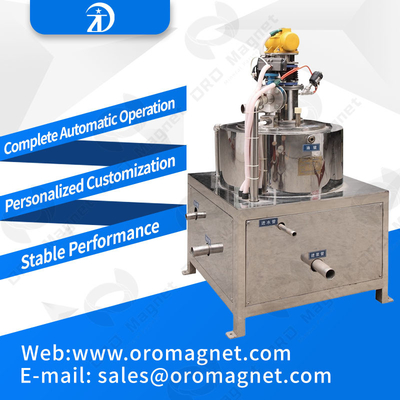

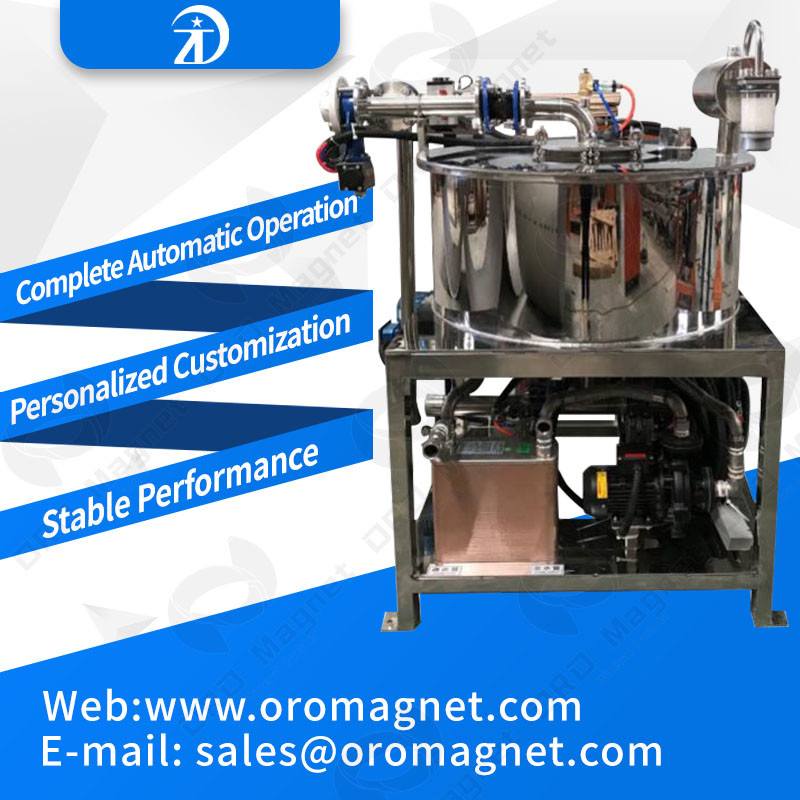

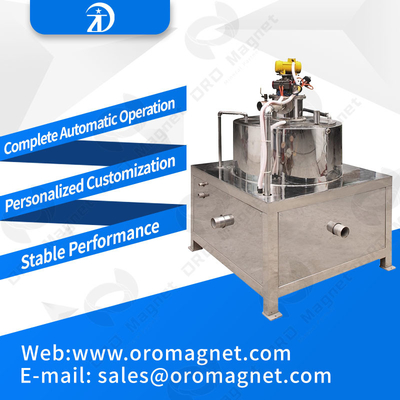

High Efficent Processing Wet Magnetic Separator Machine Easy To Operate
High efficent Processing Plant Wet Magnetic Separator Easy To Operate used for ceramic slurry, chemical solution
Product characteristic
This machine has high intensity magnetic field and high gradient magnetic field, and the magnetic field distribute evenly. It has an obvious efficiency in iron remove.Applying water to cool the machine, it can decrease the temperature about 20℃,enhanced the life span of the coil. Brake valve applying the import material, the valve have a good quality and can be durable.When you closed the valve, there is no slurry effusion. The netting is made from the special material. When the current of the loop is switched off, there is no residual magnetism, so it is very easy to discharge the iron.
Advantages
1. Technology parameter of contrast
2. Easy cleaning
3. High magnetic induction intensity
4. Quality assurance
Operation process
Firstly, power on ,then open the admission valve and slurry valve, close the back slurry valve and iron discharging valve, then magnetizing. After a few minutes later(you can set the time what you like depending on yourself condition),close the admission valve and slurry valve, open the back slurry valve to discharge the remaining slurry in the separator, then magnetic cutting, close the admission valve, slurry valve and back slurry valve, open the iron discharging valve to discharge the magnetic material which are absorbed on the magnetic media.
Technology parameter of contrast
| Model | WJ160S-B-V-1.5 | WJ89B-V-3 | WJ220B-V-3 | WJ250-V-7 | WJ250-V-11 | WJ250-V-18.5 | WJ400-V-20 |
| Magnetic field strength(T) | 2.5 | 2.5 | 2 | 3 | 3.5 | 3 | 3.5 |
| Input voltage(ACV) | 220 | 380 | 380 | 380 | 380 | 380 | 380 |
| Maximumoutput current(DCA) | 10 | 7 | 9 | 20 | 20 | 55 | 25 |
| Maximum coil power(KW) | 1.5 | 3 | 3 | 7 | 11 | 18.5 | 20 |
| Insulation method | E | E | E | E | E | E | E |
| Cooling method | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | Water and oil double cooling |
| Magnetic lumen diameter(mm) | 160 | 89 | 220 | 250 | 250 | 250 | 400 |
| Pipe size(mm) | 50 | 50 | 50 | 89 | 89 | 89 | 89 |
| yield(m³/h) | 3-10 | 0.1-0.5 | 5-10 | 10-30 | 10-30 | 10-30 | 20-60 |
| dimension(mm) | 946(H) | 500*500*1000 | 1326*1167*1452 | 1522*1260*1608 | 1200*1200*1850 | 1400*1400*1850 | 1500*1500*1850 |
| Main machine weight | 180 | 250 | 800 | 1070 | 1210 | 1500 | 3000 |
| (KG) | |||||||
| Usage | Applicable for 40-400 mesh feedstock of iron elimination | ||||||
Application scope
Electromagnetic slurry separators are widely used in the ceramic, mine, chemical, electron, and food industries to remove the iron and magnetic material from those raw material.
