Product Details:
|
| Model: | ZT1000-VB | Input Voltage: | 380V |
|---|---|---|---|
| Output Voltage: | 0-500V | Maximum Output Current（DCA）: | 90A |
| Maximum Coil Power（KW）: | 120KW | Cooling Method: | Water And Oil Double Cooling |
| Magnetic Lumen Diameter（mm）: | 1000mm | Capacity: | 80-200 M³/h |
| Dimension: | 3503*2658*3392mm | Weight: | 28000KG |
| High Light: | Oil Cooling Magnetic Separator Machine,120KW Magnetic Separator Machine,120KW magnetic sorting machine |
||

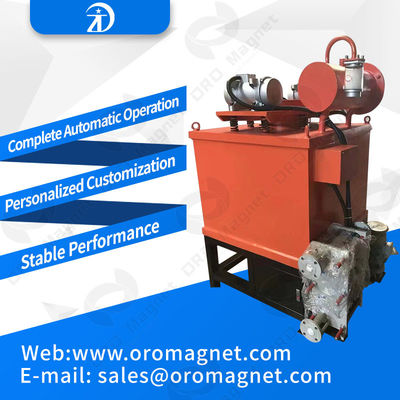

120KW Oil Cooling Magnetic Separator Machine For Non Metallic Ore
High efficent Oil Cooling Magnetic Separator suitable for non-metallic ore kaolin feldspar ceramic slurry and chemical
Ore dressing is developing rapidly in recent years, in order to suit the development and requirement of the market, ore dreessing equipment factories are also creating new products and improve process. In order to increase the the benefit of ore dressing factory, the customers are more and more strict with the equipment. We use new struction, new material and new technology, pay more attention to mechanotronics and automation.
Oil cooling electromagnetic slurry separator is a new type of high efficient iron remover.
Advantages:
High intensity of magnetization; inner temperature rise is small, the intensity of the magnetization will reduce when operating after a long time; long working cycle period; wide adatability for ore; high efficiency and easy to operate.
Technical parameters :
| Model | WS500-V | WS750-V | WS1000-V | WY750-V | WY1000-VB | WY1200-V | WY1500-V |
| Magnetic field strength(T) | 2 | 2.5 | 2.5 | 2 | 2 | 2.5 | 3 |
| Input voltage(ACV) | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Maximum coil power(KW) | 75 | 103 | 150 | 82 | 120 | 150 | 180 |
| Insulation method | E | E | E | E | E | E | E |
| Cooling method | water cooling | water cooling | water cooling | oil cooling | oil cooling | oil cooling | oil cooling |
| Magnetic lumen diameter(mm) | 500 | 750 | 1000 | 750 | 1000 | 1200 | 1500 |
| Pipe size(mm) | 100 | 150 | 200 | 150 | 200 | 250 | 300 |
| yield(m³/h) | 20-45 | 30-65 | 50-100 | 30-65 | 50-100 | 50-150 | 70-180 |
| dimension(mm) | 2328*1745*2642 | 2659*1978*2518 | 3052*2185*2814 | 2958*2294*3091 | 3503*2658*3392 | 3950*2926*3746 | 4349*3180*3706 |
| Main machine weight | 14000 | 16600 | 26000 | 16000 | 28000 | 53000 | 65000 |
| (KG) | |||||||
| Usage | Applicable for 40-400 mesh feedstock of iron elimination | ||||||
Features:
Specialized for the some factories which has strict requirement for iron removing such as heat engine plant, coal mine, port. It can be operated in dusty, wet and high altitude environment. Small volume and light in weight. Compact cooling structure with good thermolysis. Low in temperature rise, long life span in magnetic core.
Cases pictures
