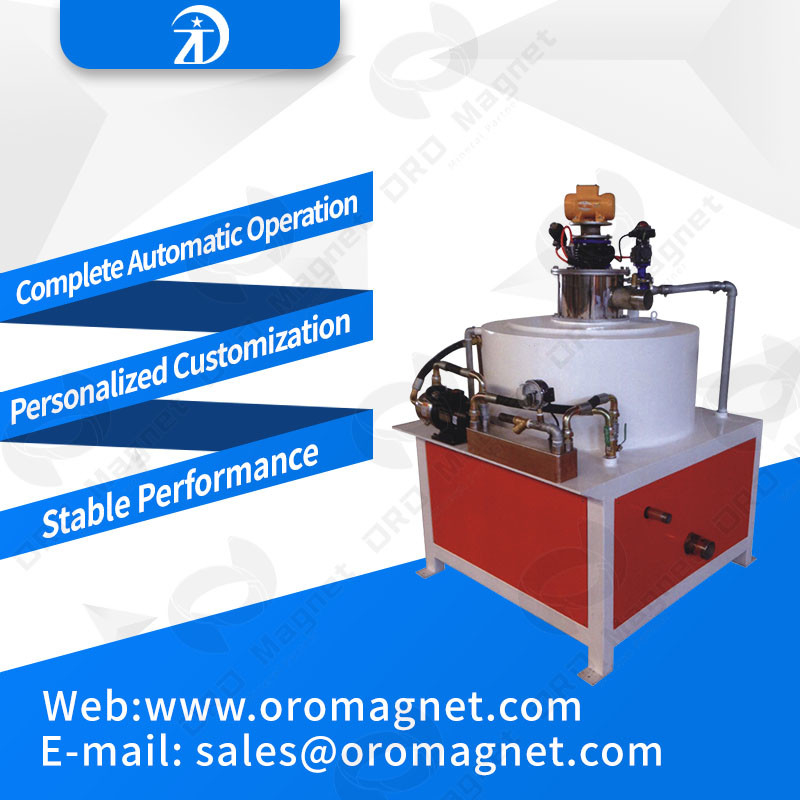

Oil Double Cooling Wet 25000GS Electromagnetic Separator

Oil Double Cooling Wet 25000GS Electromagnetic Separator
Oil Double Cooling Wet 25000GS Electromagnetic Separator

Large Image :  Oil Double Cooling Wet 25000GS Electromagnetic Separator

Product Details:
Place of Origin: FOSHAN.CHINA
Brand Name: ZT
Certification: ISO9001:2008
Model Number: WJ400-V-20
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Film And Wooden Case
Delivery Time: Within 25 days after the advance payment is made
Supply Ability: 50 SETS PER MONTH

Oil Double Cooling Wet 25000GS Electromagnetic Separator

Description
Magnetic Field Strength (T): 2.5 Input Voltage(ACV): 380
Maximumoutput Current(DCA): 10 Maximum Coil Power(KW): 20
Insulation Method: E Cooling Method: Water And Oil Double Cooling
Magnetic Lumen Diameter(mm): 400 Pipe Size(mm): 150
Yield(m³/h): 20-60 Dimension(mm): 1500*1500*1850
Mainmachine Weight (KG): 3000 Usage: Applicable For 40-400 Mesh Feedstock Of Iron Elimination
High Light:

Chemicals Slurry Electromagnetic Separator

,

Slurry Battery Electromagnetic Separator

Wet high Magnetic 25000GS Separator Electromagnetic Separator For Chemicals solution ceramics slurry battery solution



Electromagnetic Separator For Fine Chemicals





Product characteristic



High gradient magnetic field, and the magnetic field distribute evenly.

An obvious efficiency in iron remove.

Applying water to cool the machine

The valve have a good quality and can be durable.

The netting is made from the special material.





Operation process



Firstly, power on ,then open the admission valve and slurry valve, close the back slurry valve and iron discharging valve, then magnetizing.

After a few minutes later(you can set the time what you like depending on yourself condition),close the admission valve and slurry valve, open the back slurry valve to discharge the remaining slurry in the separator, then magnetic cutting, close the admission valve, slurry valve and back slurry valve, open the iron discharging valve to discharge the magnetic material which are absorbed on the magnetic media.





Application scope



Electromagnetic slurry separators are widely used in the ceramic, mine, chemical, electron, and food industries to remove the iron and magnetic material from those raw material.

For example:

1. Organic chemical industry and related equipment,organic chemical industry and  related equipment, 2. Fine chemicals and  related equipment,paper treatment ,paper pulp treatment,fiber stuff treatment,food  treatment ,flavoring treatment ,grain and oil treatment,water treatmen

3. Quartz Beneficiation,Sodium potassium feldspar  Beneficiation,Kaolin Beneficiation





Technical parameter of contrast



Electromagnetic Separator For Fine Chemicals  ceramics slurry battery solution



Model WJ160S-B-V-1.5 WJ89B-V-3 WJ190B-V-3 WJ250-V-7 WJ250-V-11 WJ250-V-18.5 WJ400-V-20
Magnetic field strength(T) 2.5 2.5 2 3 3.5 3 3.5
Input voltage(ACV) 220 380 220 380 380 380 380
Maximumoutput current(DCA) 10 7 7 20 20 55 25
Maximum coil power(KW) 1.5 3 3 7 11 18.5 20
Insulation method E E E E E E E
Cooling method water and oil double cooling water and oil double cooling water and oil double cooling water and oil double cooling water and oil double cooling water and oil double cooling Water and oil double cooling
Magnetic lumen diameter(mm) 160 89 190 250 250 250 400
Pipe size(mm) 50 50 50 89 89 89 89
yield(m³/h) 3-10 0.1-0.5 5-10 10-30 10-30 10-30 20-60
dimension(mm) 946(H) 500*500*1000 860*860*1540 1200*1200*1850 1200*1200*1850 1400*1400*1850 1500*1500*1850
Main machine weight 180 250 510 1050 1210 1500 3000
(KG)
Usage Applicable for 40-400 mesh feedstock of iron elimination
