Product Details:
|
| Maximum Output Current（DCA）: | 1400 | Maxiumum Coil Power（KW）: | 75 |
|---|---|---|---|
| Insulation Method: | E | Cooling Method: | Water Cooling |
| Magnetic Lumen Diameter（mm）: | 1000 | Pipe Size（mm）: | 200 |
| Yield（m³/h）: | 40-130 | Demension（mm）: | 3674*2737*3542 |
| High Light: | Feldspar Slurry Ceramic Magnetic Separator,Coil Cooling Magnetic Separator |
||

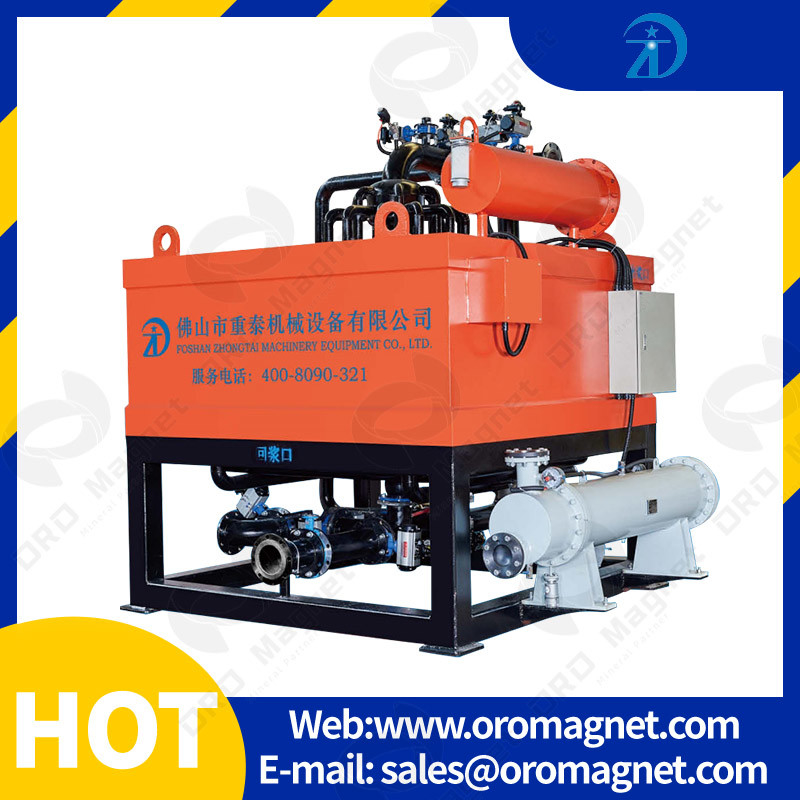

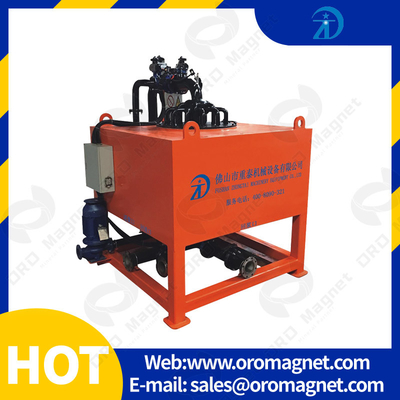

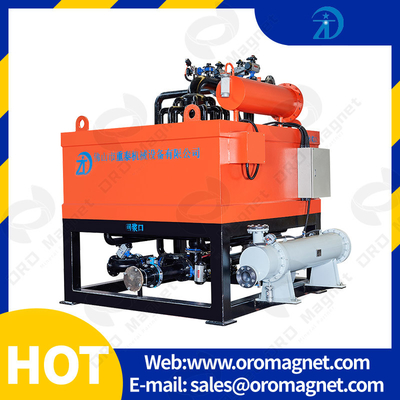

Magnetic Separator Machine 5T Automatic Water-cooling for Slurry 380ACV 1400DCA
Mining Industry High Intensity Magnetic Separator Machine With Automati coil Cooling kaolin feldspar slurry ceramic
Product characteristic
Automatic Water-cooling Eletromagnetic Slurry Separator Series advantages :
1. High intensity magnetic field;
2. The temperature inside of the machine rises slowly;
3. The magnetic field intensity are not easy to decrease when the machine run for a long time;
4. Long working period;
5. Have a wide range of adaption in the particle of feeding ore and the thickness of slurry;
6. High efficiency in mineral processing;
7. Easy to manual and maintain.
Operation process
Application scope
Kaolin Beneficiation,Sodium potassium feldspar Beneficiation,Quartz Beneficiation.
1. Ferrous metals mineral: hematite, martite, limonite, siderite, chromite, polianite.
2. Non-ferrous metals mineral: used for separating wolframite from pyrope.
3. Rare earth ore: recycle tantalum-niobium ores and monazite.
4. other industries: iron ore, effluent of power station disposal, disposal of contaminated chemical raw material.
Technology parameter
|
Model |
750-V |
1000-V |
1200-V |
1500-V |
|
|
Magnetic field strength(T) |
2 |
2 |
2 |
2 |
|
|
Input voltage(ACV) |
380 |
380 |
380 |
380 |
|
|
Maximum output current(DCA) |
|
|
|
|
|
|
Maxiumum coil power(KW) |
82 |
120 |
150 |
180 |
|
|
Insulation method |
E |
E |
E |
E |
|
|
Cooling method |
Water cooling |
Water cooling |
Water cooling |
Oil cooling |
|
|
Magnetic lumen diameter(mm) |
750 |
1000 |
1200 |
1500 |
|
|
Pipe size(mm) |
200 |
150 |
100 |
300 |
|
|
yield(m³/h) |
80-200 |
40-100 |
30-80 |
50-180 |
|
|
demension(mm) |
2710*2410*3500 |
2600*2000*3000 |
2370*2000*2650 |
4349*3180*3706 |
|
|
Main machine weight(KG) |
16000 |
45000 |
53000 |
65000 |
|
|
Usage |
Applicable for 40-400 mesh feedstock of iron elimination |
||||
