Product Details:
|
| Model: | 15A220 | Magnetic Field Strength（T）: | 3 |
|---|---|---|---|
| Inputvoltage（ACV）: | 220 | Maximum Output Current（DCA）: | 15 |
| Maximum Coil Power（KW）: | 11 | Insulation Method: | E |
| Cooling Method: | Water And Oil Double Cooling | Magnetic Lumen Diameter（mm）: | 430 |
| Yield（T）: | 2.5-6 | Dimension（mm）: | 1600*1720*2500 |
| Main Machine Weight （KG）: | 1500 | Usage: | Applicable For 60-300 Mesh Feedstock Of Iron Elimination |
| High Light: | magnetic roll separator,metal separation equipment |
||
automatic powder magnetic separator machine 15A220
Application:
This product is widely used in removing the iron powder, micro iron powder and magnetic substance, etc. from the dry-powder materials in industries such as ceramics, mining, chemicals, electronics, and food, etc.
Features:
1. Low energy consumption, high magnetic field gradient, even magnetic field distribution, good iron removing effect.
2. Completely automated iron separation, easy to clean.
3. Time for the stages of separation and cleaning can be adjusted freely, suitable for a wide range of situations.

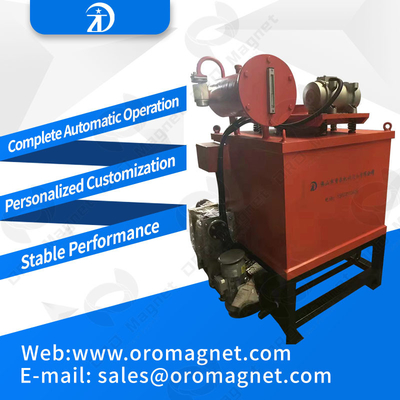

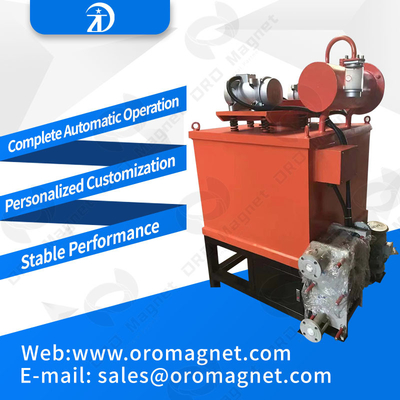

The image:
Technical parameter of contrast:
| Model | WG160B-V-3 | WG220B-V-3 | WG300-V-7 | WG220B-V-11 | WG430-V-11 | WG220-V-15 | WG600-V-20 |
| Magnetic field strength(t) | 2 | 2 | 3 | 3 | 3 | 5 | 3 |
| Input voltage(VAC) | 380 | 220 | 380 | 380 | 380 | 380 | 380 |
| Maximun output current(A) | 15 | 7 | 20 | 20 | 20 | 30 | 40 |
| Maximum coil power(KW) | 3 | 3 | 7 | 11 | 11 | 15 | 20 |
| Insulation category | E | E | E | E | E | E | E |
| Cooling method | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling |
| Magnetic lumen diameter(mm) | 160 | 220 | 300 | 220 | 430 | 220 | 600 |
| Yield(m3/h) | 0.5-1.5 | 43833 | 1.5-4 | 0.5-3 | 1.5-6 | 1-3 | 3-8 |
| Dimension(mm) | 700*700 | 860*860 | 1320*1320 | 1300*110 | 1500*1500 | 1350*1100 | 1500*1500 |
| *1450 | *1540 | *2500 | *1800 | *2500 | *1850 | *2000 | |
| Main machine weight(kg) | 450 | 490 | 1020 | 1130 | 1210 | 1500 | 2000 |
| Usage | 60-300 mesh feedstock of iron elimination | ||||||
Application scope
Electromagnetic dried-powder separators are applied in process the fine mineral particle, the magnetic fine ferrous mineral particle such as hematite, martite, limonite, siderite and also fine nonferrous metals mineral particle, for example wolframite; fine rare earth mineral particle, for example eremite; and fine nonmetallic mineral particle such as feldspar, quartz, kaolin.
Electromagnetic dried-powder separators are suitable for using at the drought and water shortage area.
