Durable Drum Type Magnetic Separator For Iron Ore , Easy To Block Up

Durable Drum Type Magnetic Separator For Iron Ore , Easy To Block Up
Durable Drum Type Magnetic Separator For Iron Ore , Easy To Block Up Durable Drum Type Magnetic Separator For Iron Ore , Easy To Block Up

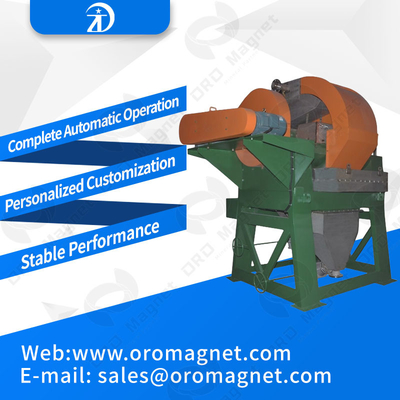

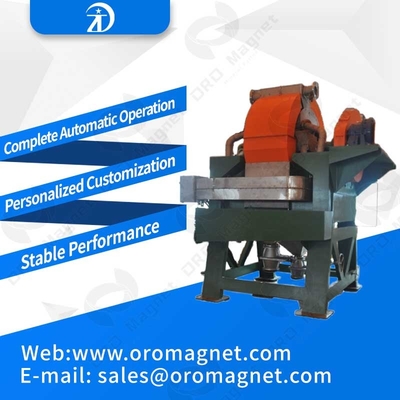

Large Image :  Durable Drum Type Magnetic Separator For Iron Ore , Easy To Block Up

Product Details:
Place of Origin: FOSHAN,CHINA
Brand Name: ZT
Certification: ISO9001:2008
Model Number: WD1750
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Film and wooden case
Delivery Time: Within 30 days after the advance payment is made
Supply Ability: 50 SETS PER MONTH

Durable Drum Type Magnetic Separator For Iron Ore , Easy To Block Up

Description
Swivel Outer Diameter(mm): 1750 Ore Size(mm), (-200 %): -1.2(30-100)
Ore Density(%): 10-40 Ore Pulp Transit Capability(m³/h): 75-150
Dry Ore Throughput(t/h): 30-50 Rated Background Magnetic Field(T): 1.0
Rated Energizing Current (A): 1200 Rated Energizing Voltage(V): 31
Rated Exciting Power(Kw): 37 Rotaing Pulsation Power(Kw): 4
Pulse Stroke(mm): 1-30 Pulse Speed (times/minute): 1-300
Water Supplied Speed(Mpa): 0.2-0.3 Water Consumption(m³/h): 80-120
Cooling Water Processing(m³/h): 4-5 Weight Of Biggest Parts(T): 11
High Light:

magnetic roller separator

,

dry drum magnetic separator

Durable Drum Type Magnetic Separator For Iron Ore , Easy To Block Up



Product characteristic



Vertical ring magnetic separator come over the technical problem that the magnetic media of high gradient flat ring magnetic separator is easy to block up.

The separator possesses many advantages such as high magnetic field intensity, high gradient magnetic field, big concentration ratio, having a wide range  in the particle size of feeding ore and the thickness of slurry, intelligent control operation, get a satisfactory mineral processing result when separate the low intensity magnetic ores.



Magnetic Separation Functions: Separate magnetic substance from minerals according to their different magnetism, used in the process of roughing, scavenging and cleaning.



Operation process



1. When mineral processing, firstly, filled the separation cavity with water, open the pulsating equipment, then feeding the raw ore from the feed box.

2. The magnetic particle in the separation cavity separate from the non-magnetic particle by the different magnetic force, pulsating fluid force and gravity which those particles are acted on.

3. The magnetic particles are absorbed on the magnetic media, the nonmagnetic particle will discharge from the iron discharge. several minutes later, magnetic cutting, then flushing the magnetic particle from the magnetic media.


Applicable Minerals including


1. Hematite, limonite, siderite, ilmenite, chromite, wolframite, tantalum niobium, tungsten, cassiterite, etc.
2. Quartz, feldspar, nephelite, fluorite, sillimanite, spodumene, kaolin, etc.
3. Tailings or concentrates of minerals after processing, such as red mud ( residues of alumina after Bayer process )



Technical parameter



Model

WD-1250

WD-1500

WD-1750

WD-2000

Swivel outer diameter(mm)

1250

1500

1750

2000

Ore size(mm),

(-200 mesh %)

-1.2(30-100)

-1.2(30-100)

-1.2(30-100)

-1.2(30-100)

Ore density(%)

10-40

10-40

10-40

10-40

Ore pulp transit capability(m³/h)

20-50

50-100

75-150

100-200

Dry ore throughput(t/h)

10-18

20-30

30-50

50-80

Rated background magnetic field(T)

1.0

1.0

1.0

1.0











Rated energizing current(A)

850

950

1200

1200

Rated energizing voltage(V)

23

29

31

35

Rated exciting power(Kw)

19

27

37

40

Swivel rotating power(Kw)

1.5

3

4

5.5

Rotating pulsation power(Kw)

2.2

4

4

7.5

Pulse stroke(mm)

0-20

0-30

0-30

0-30

Pulse speed(times/min)

0-300

0-300

0-300

0-300

Water consumption(Mpa)

0.15-0.3

0.2-0.3

0.2-0.3

0.2-0.3

Water consumption(m³/h)

30-45

60-90

80-120

100-150

Cooling water processing(m³/h)

2.5-3

3-4

4-5

5-6

Weight of biggest parts(T)

4

5

11

14

dimension(length x width x height,mm)

3200x2340x2700

3600x2900x3200

3900x3300x3800

4200x3550x4200
