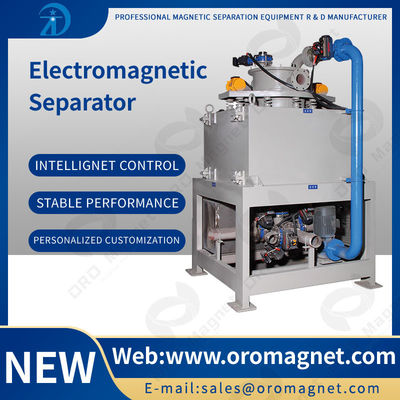

Nanoparticles Magnetic Separation Equipment 380v Wet High Intensity Magnetic Separator

Nanoparticles Magnetic Separation Equipment 380v Wet High Intensity Magnetic Separator
Nanoparticles Magnetic Separation Equipment 380v Wet High Intensity Magnetic Separator Nanoparticles Magnetic Separation Equipment 380v Wet High Intensity Magnetic Separator

Large Image :  Nanoparticles Magnetic Separation Equipment 380v Wet High Intensity Magnetic Separator

Product Details:
Place of Origin: Foshan.China
Brand Name: ZT
Certification: ISO9001:2008
Model Number: WS750
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Film and wooden case
Delivery Time: Within 30 days after the advance payment is made
Payment Terms: T/T, Western Union, L/C, Western Union, MoneyGram
Supply Ability: 50 SETS PER MONTH

Nanoparticles Magnetic Separation Equipment 380v Wet High Intensity Magnetic Separator

Description
Model: WS750 Magnetic Field Strength(T): 5
Input Voltage(ACV): 380 Maximum Output Current(DCA): 1400
Maxiumum Coil Power(KW): 75 Insulation Method: E
High Light:

wet drum magnetic separator

,

wet high intensity magnetic separator

Nanoparticles Magnetic Separation Equipment 380v Wet High Intensity Magnetic Separator


Zhongtai LIMITED are a highly efficient and resource saving piece of equipment. Using the combined forces of magnetism, a pulsating slurry and gravity they can be used to beneficiate weakly magnetite materials such as concentrations of hematite martite, limonite, vanadium-bearing titanomagnetite, manganese, liminite or for the purification of non magnetic materials such as kaolin, feldspar, nepheline, fluorite, ceramic etc.

Product characteristic

A new model of separator with high efficiency.
High intensity magnetic field.
The temperature inside of the machine rises slowly.
Running long time and the magnetic field intensity are not easy to decrease.

Technology parameter

Model

1000

750

WS500T2 - I

W500SL

X500

Magnetic field strength(T)

5

5

5

3

5

Input voltage(ACV)

380

380

380

380

380

Maximum output current(DCA)

2500

1400

1400

1400

1400

Maxiumum coil power(KW)

180

75

75

30

45

Insulation method

E

E

E

E

E

Cooling method

Water cooling

Water cooling

Water cooling

Water cooling

Water
cooling

Magnetic lumen diameter(mm)

1000

750

530

530

530

Pipe size(mm)

200

150

100

100

100

yield(m³/h)

80-200

40-100

30-70

20-50

20-50

demension(mm)

2710*2410*3500

2600*2000*3000

2200*1700*3000

1400*1700*2345

2000*
1600*2800

Main machine weight(KG)

35000

16350

14100

6500

9580

Usage

Applicable for 40-400 mesh feedstock of iron elimination


 Operation process

 After a few minutes later(you can set the time whatever you like depending on yourself condition),close the admission valve and slurry valve, open the back slurry valve to discharge the remaining slurry in the separator, then magnetic cutting, close the admission valve, slurry valve and back slurry valve, open the iron discharging valve to discharge the magnetic material which are absorbed on the magnetic media.


Application scope

Non-metallic mineral: It is used for purifying the non-metallic mineral such as quartz, feldspar and kaolin.
Ferrous metals mineral: hematite, martite, limonite, siderite, chromite, polianite.
Non-ferrous metals mineral: used for separatinwolframite from pyrope
Rare earth ore: recycle tantalum-niobium ores and monazite.
other industries: iron ore, effluent of power station disposal, disposal of contaminated chemical raw material.


Nanoparticles Magnetic Separation Equipment 380v Wet High Intensity Magnetic Separator 0

Nanoparticles Magnetic Separation Equipment 380v Wet High Intensity Magnetic Separator 1
