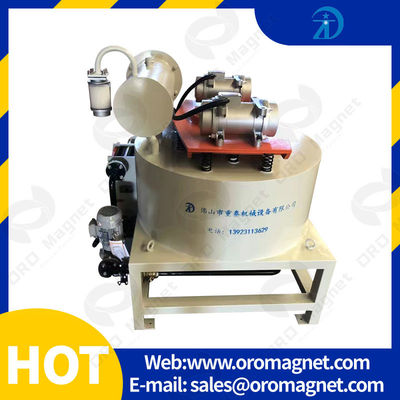

Dry Powder Electric Magnetic Iron Separator For Non Ferrous dried powder feldspar chemical food medicine

Dry Powder Electric Magnetic Iron Separator For Non Ferrous dried powder feldspar chemical food medicine
Dry Powder Electric Magnetic Iron Separator For Non Ferrous dried powder feldspar chemical food medicine Dry Powder Electric Magnetic Iron Separator For Non Ferrous dried powder feldspar chemical food medicine Dry Powder Electric Magnetic Iron Separator For Non Ferrous dried powder feldspar chemical food medicine

Large Image :  Dry Powder Electric Magnetic Iron Separator For Non Ferrous dried powder feldspar chemical food medicine

Product Details:
Place of Origin: FOSHAN,CHINA
Brand Name: ZT
Certification: ISO9001:2008
Model Number: WG160-B-V-3
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Film and wooden case
Delivery Time: Within 35 days after the advance payment is made
Payment Terms: T/T, Western Union
Supply Ability: 50 SETS PER MONTH

Dry Powder Electric Magnetic Iron Separator For Non Ferrous dried powder feldspar chemical food medicine

Description
Name: Non Ferrous Metal Separator Magnetic Field Strength(T): 2
Inputvoltage(ACV): 380 Maximum Coil Power(KW): 3
Insulation Method: E Cooling Method: Oil And Water Double Cooling
Magnetic Lumen Diameter(mm): 160 Yield(T): 0.5-1.5
Dimension(mm): 700*700*1450 Usage: Applicable For 60-300 Mesh Feedstock Of Iron Elimination
High Light:

drum type magnetic separator

,

wet drum magnetic separator

Dry powder electric magnetic iron separator



Dry Powder Electric Magnetic Iron Separator For Non Ferrous dried powder feldspar chemical food medicine 0



1.Specifications

Magnetic Separator:
1.Large inhaling capacity
2.Low consumption
2.Reasonable circulation of slurry
3.Automatic operation



Model WG160B-V-3 WG220B-V-3 WG300-V-7 WG220B-V-11 WG430-V-11 WG220-V-15 WG600-V-20
Magnetic field strength(t) 2 2 3 3 3 5 3
Input voltage(VAC) 380 220 380 380 380 380 380
Maximun output current(A) 15 7 20 20 20 30 40
Maximum coil power(KW) 3 3 7 11 11 15 20
Insulation category E E E E E E E
Cooling method water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling
Magnetic lumen diameter(mm) 160 220 300 220 430 220 600
Yield(m3/h) 0.5-1.5 43833 1.5-4 0.5-3 1.5-6 1-3 3-8
Dimension(mm) 700*700 860*860 1320*1320 1300*110 1500*1500 1350*1100 1500*1500
*1450 *1540 *2500 *1800 *2500 *1850 *2000
Main machine weight(kg) 450 490 1020 1130 1210 1500 2000
Usage 60-300 mesh feedstock of iron elimination



2.Introduction



Magnetic separator is suitable for the wet magnetic separation of the materials whose granularity is below 3mm such as magnetite, pyrrhotite, calcined ore and ilmenite and can also be used for removing iron from the materials such as coal, non-metal ore and building material. The magnetic system of magnetic separator is a compound of fine ferrite material and rare earth magnets and the average magnetic induction intensity of the surface of the cylinder is 100~600mT. According to specific need, customers can choose from many kinds of magnetic separators with different surface magnetic intensity such as downstream type, semi-reflux type and reflux-type. This product has the advantages of simple structure, big processing capacity, convenient operation and easy maintenance.



3.Delivery Scene

This is prepared transported to India. It is used for a copper production line. Besides domestic markets, our products have been exported to West Asia, Central Asia, Africa and Europe, winning praise from the government and trust from the society and customers.



4.Scene picture

This is a scene picture of Magnetic separation. It is removing metal impurities in magnetic material by using magnetic force. The application of magnetic separation is by using the difference of various minerals or materials, process of sorting in the magnetic force and other force. It is usually divided into four classes: 1. Strong magnetic minerals 2. the secondary magnetic minerals 3. weak magnetic minerals 4. non-magnetic minerals.





5.Beneficiation production line



At first, ore is preliminary broken by jaw crusher. When it has been broken to a reasonable size, it will be sent to ball mill symmetrical through bucket and feeder. Then, ball mill will crush and grand ore and go to next step flotation. After flotation, the ore powder will be into rotary kiln, than the final product is concentrate.





6.Foreign visiting picture

Until now, we have successful cooperation with more than 8000 mineral processing units and individuals in China, Asia, Africa, Europe, North and South America etc 40 countries. When they visited our company, most of them said they are surprised for our company. Because we have the biggest workshop, the good service attitude, and professional guidance.



Dry Powder Electric Magnetic Iron Separator For Non Ferrous dried powder feldspar chemical food medicine 1
