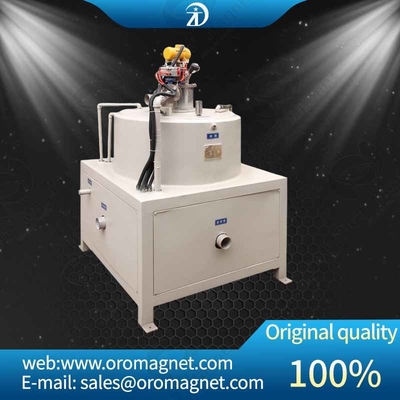

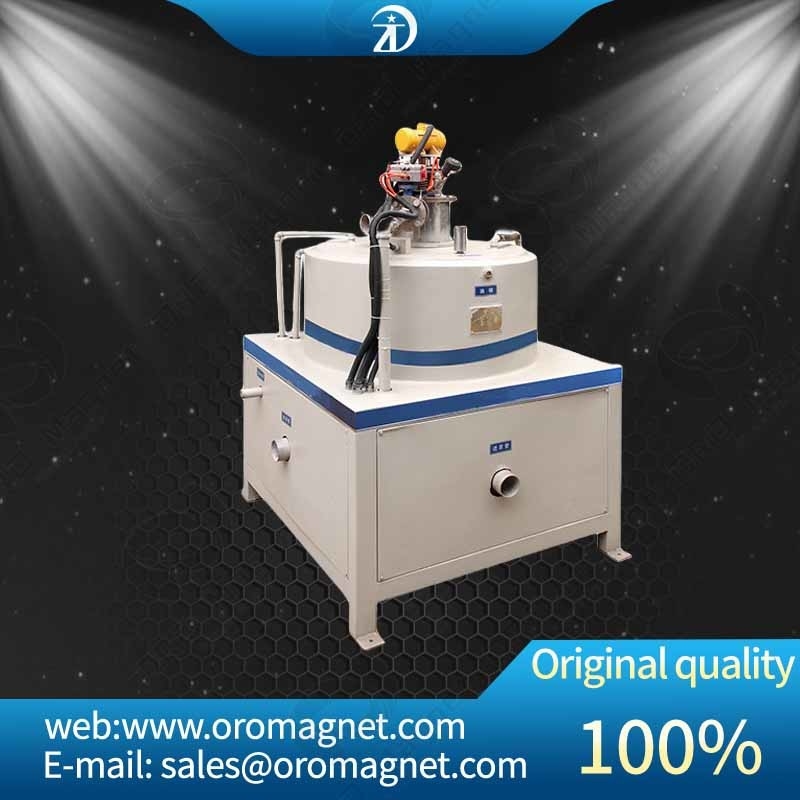

High Gradient Magnetic Separation Equipment High Tension Separator ceramic kaolin slurry

High Gradient Magnetic Separation Equipment High Tension Separator ceramic kaolin slurry
High Gradient Magnetic Separation Equipment High Tension Separator ceramic kaolin slurry High Gradient Magnetic Separation Equipment High Tension Separator ceramic kaolin slurry

Large Image :  High Gradient Magnetic Separation Equipment High Tension Separator ceramic kaolin slurry

Product Details:
Place of Origin: FOSHAN.CHINA
Brand Name: ZT
Certification: ISO9001:2008
Model Number: WJ89TS
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Film and wooden case
Delivery Time: Within 25 days after the advance payment is made
Payment Terms: T/T, Western Union
Supply Ability: 30 set/sets per month

High Gradient Magnetic Separation Equipment High Tension Separator ceramic kaolin slurry

Description
Input Voltage(ACV): 380 Maximumoutput Current(DCA): 20
Maximum Coil Power(KW): 11 Insulation Method: E
Cooling Method: Water And Oil Double Cooling Magnetic Lumen Diameter(mm): 250
Pipe Size(mm): 89 Yield(m³/h): 15-30
Dimension(mm): 1200*1200* 1850 Mainmachine Weight (KG): 180
High Light:

magnetic roller separator

,

dry drum magnetic separator



Wet High-intensity Magnetic Separator For Iron Ore Low Price with ISO9001 Approved





Product characteristi



1. High gradient magnetic field .

2. Applying water to cool the machine, enhanced the life span of the machine.

3. The valve have a good quality and can be durable.

4. Very easy to discharge the iron.





Operation process



Firstly, power on ,then open the admission valve and slurry valve, close the back slurry valve and iron discharging valve, then magnetizing. After a few minutes later(you can set the time what you like depending on yourself condition),close the admission valve and slurry valve, open the back slurry valve to discharge the remaining slurry in the separator, then magnetic cutting, close the admission valve, slurry valve and back slurry valve, open the iron discharging valve to discharge the magnetic material which are absorbed on the magnetic media.





Technology parameter of contrast



Model

1.5A160

3A89

3A190

7A250

11A250

18.5A250

20A400

Magnetic field strength(T)

2.5

2.5

2

3

3.5

3

3.5

Input voltage(ACV)

220

380

220

380

380

380

380

Maximumoutput current(DCA)

10

7

7

20

20

55

25

Maximum coil power(KW)

1.5

3

3

7

11

18.5

20

Insulation method

E

E

E

E

E

E

E

Cooling method

water and oil double cooling

water and oil double cooling

water and oil double cooling

water and oil double cooling

water and oil double cooling

water and oil double cooling

Water and oil double cooling

Magnetic lumen diameter(mm)

160

89

190

250

250

250

400

Pipe size(mm)

50

50

50

89

89

89

89

yield(m³/h)

3-10

0.1-0.5

5-10

10-30

10-30

10-30

20-60

dimension(mm)

946(H)

500*500*

1000

860*860*

1540

1200*1200*

1850

1200*1200*

1850

1400*1400*1850

1500*1500*

1850

Main machine weight

(KG)

180

250

510

1050

1210

1500

3000

Usage

Applicable for 40-400 mesh feedstock of iron elimination





Application scope



Electromagnetic slurry separators are widely used in the ceramic, mine, chemical, electron, and food industries to remove the iron and magnetic material from those raw material.
