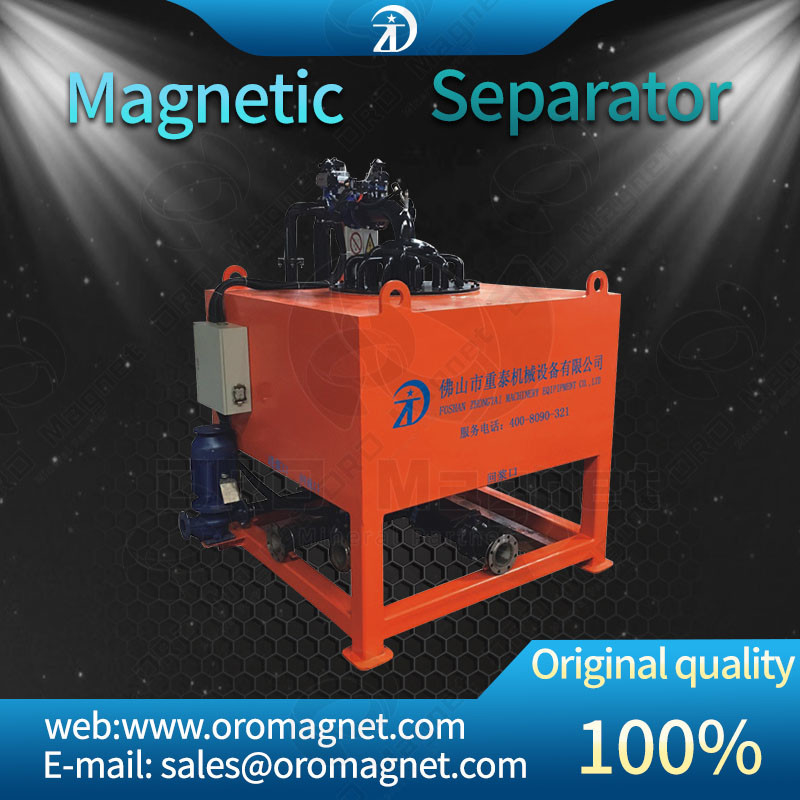

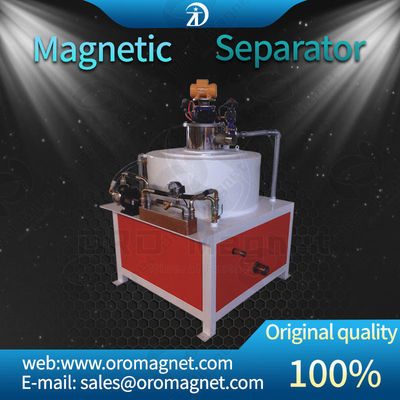

Water Oil Double Cooling Wet Magnetic Separator For Ceramic Kaolin Slurry

Water Oil Double Cooling Wet Magnetic Separator For Ceramic Kaolin Slurry
Water Oil Double Cooling Wet Magnetic Separator For Ceramic Kaolin Slurry Water Oil Double Cooling Wet Magnetic Separator For Ceramic Kaolin Slurry

Large Image :  Water Oil Double Cooling Wet Magnetic Separator For Ceramic Kaolin Slurry

Product Details:
Place of Origin: FOSHAN.CHINA
Brand Name: ZT
Certification: ISO9001:2008
Model Number: WJ430-V-11
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Film And Wooden Case
Delivery Time: Within 35 days after the advance payment is made
Supply Ability: 30 SETS PER MONTH

Water Oil Double Cooling Wet Magnetic Separator For Ceramic Kaolin Slurry

Description
Magnetic Field Strength (T): 2 Input Voltage(ACV): 380
Maximumoutput Current(DCA): 18 Maximum Coil Power(KW): 11
Insulation Method: E Cooling Method: Water And Oil Double Cooling
Magnetic Lumen Diameter(mm): 430 Pipe Size(mm): 89
Yield(m³/h): 15-35 Dimension(mm): 1785*1360*1765
Mainmachine Weight (KG): 1600 Usage: Applicable For 40-400 Mesh Feedstock Of Iron Elimination
High Light:

ceramic slurry Wet Magnetic Separator

,

380V Wet Magnetic Separator

,

Electromagnetic slurry separator

Water Oil Double Cooling Wet Magnetic Separator For Ceramic Kaolin Slurry



Wet Magnetic Separator Of Minerals suitable for ceramic slurry , Magnetic Bead Separation For Ceramic Kaolin Slurry



Operation process



1, power on ,then open the admission valve and slurry valve, close the back slurry valve and iron discharging valve, then magnetizing.

2, After a few minutes later(you can set the time what you like depending on yourself condition),close the admission valve and slurry valve, open the back slurry valve to discharge the remaining slurry in the separator, then magnetic cutting, close the admission valve, slurry valve and back slurry valve, open the iron discharging valve to discharge the magnetic material which are absorbed on the magnetic media.



Product characteristic



The magnetic field distribute evenly

An obvious efficiency in iron remove.

Applying water to cool the machine

Enhanced the life span of the coil.

Brake valve applying the import material.



Technology parameter of contrast



WJ160S-B-V-1.5 WJ89B-V-3 WJ220B-V-3 WJ250-V-7 WJ250-V-11 WJ250-V-18.5 WJ400-V-20
2.5 2.5 2 3 3.5 3 3.5
220 380 380 380 380 380 380
10 7 9 20 20 55 25
1.5 3 3 7 11 18.5 20
E E E E E E E
water and oil double cooling water and oil double cooling water and oil double cooling water and oil double cooling water and oil double cooling water and oil double cooling Water and oil double cooling
160 89 220 250 250 250 400
50 50 50 89 89 89 89
3-10 0.1-0.5 5-10 10-30 10-30 10-30 20-60
946(H) 500*500*1000 1326*1167*1452 1522*1260*1608 1200*1200*1850 1400*1400*1850 1500*1500*1850
180 250 800 1070 1210 1500 3000
Applicable for 40-400 mesh feedstock of iron elimination





Application scope



Electromagnetic slurry separators series :organic chemical industry and related equipment, Fine chemicals and  related equipment,paper treatment ,paper pulp treatment,fiber stuff treatment,food  treatment ,flavoring treatment ,grain and oil treatment,water treatmen ,Quartz Beneficiation,Sodium potassium feldspar Beneficiation,Kaolin Beneficiation.



Ceramic Plant Processing Pictures





Water Oil Double Cooling Wet Magnetic Separator For Ceramic Kaolin Slurry 0
