380AVC Magnetic Ore Separator , Automatic Magnetic Separators For Slurry

380AVC Magnetic Ore Separator , Automatic Magnetic Separators For Slurry
380AVC Magnetic Ore Separator , Automatic Magnetic Separators For Slurry 380AVC Magnetic Ore Separator , Automatic Magnetic Separators For Slurry

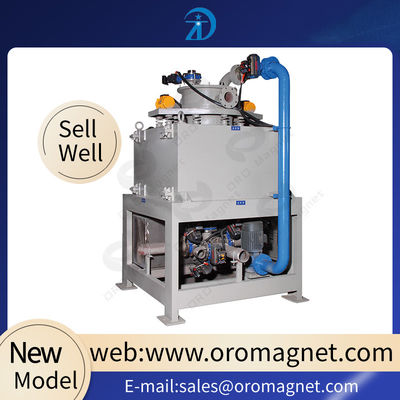

Large Image :  380AVC Magnetic Ore Separator , Automatic Magnetic Separators For Slurry

Product Details:
Place of Origin: FOSHAN.CHINA
Brand Name: ZT
Certification: ISO9001:2008
Model Number: WS1000T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Film and wooden case
Delivery Time: Within 30 days after the advance payment is made
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50 SETS PER MONTH

380AVC Magnetic Ore Separator , Automatic Magnetic Separators For Slurry

Description
Input Voltage(ACV): 380 Main Machine Weight(KG): 35000
High Light:

drum type magnetic separator

,

wet high intensity magnetic separator



380AVC Magnetic Ore Separator , Automatic Magnetic Separators For Slurry





Product characteristic



1. A new model of separator with high efficiency.

2. High intensity magnetic field;

3. The temperature inside of the machine rises slowly.

4. Long working period;

5. High efficiency in mineral processing;

6. Have a wide range of adaption in the particle of feeding ore and the thickness of slurry.





Technology Parameter



Model

WS1000T

750

600

G500

W500SL

X500

Magnetic field strength(T)

5

5

5

5

3

5

Input voltage(ACV)

380

380

380

380

380

380

Maximum output current(DCA)

2500

1400

2100

1400

1400

1400

Maxiumum coil power(KW)

180

75

75

75

30

45

Insulation method

E

E

E

E

E

E

Cooling method

Water cooling

Water cooling

Water cooling

Water cooling

Water cooling

Water cooling

Magnetic lumen diameter(mm)

1000

750

600

530

530

530

Pipe size(mm)

200

150

100

100

100

100

yield(m³/h)

80-200

40-100

30-80

30-70

20-50

20-50

demension(mm)

2710*2410*3500

2600*2000*3000

2370*2000*2650

2200*

1700*3000

1400*

1700*2345

2000*

1600*2800

Main machine weight(KG)

35000

16350

14730

14100

6500

9580

Usage

Applicable for 40-400 mesh feedstock of iron elimination





Operation process



Firstly, power on, then open the admission valve and slurry valve, close the return slurry valve and iron discharging valve, then magnetizing. After a few minutes later(you can set the time whatever you like depending on yourself condition),close the admission valve and slurry valve, open the back slurry valve to discharge the remaining slurry in the separator, then magnetic cutting, close the admission valve, slurry valve and back slurry valve, open the iron discharging valve to discharge the magnetic material which are absorbed on the magnetic media.





Application scope



Non-metallic mineral: Kaolin Beneficiation,Sodium potassium feldspar  Beneficiation,Quartz Beneficiation

Ferrous metals mineral:  martite, limonite, siderite, chromite, polianite.

Non-ferrous metals mineral: used for separating wolframite from pyrope

Rare earth ore: recycle tantalum-niobium ores and monazite.

Other industries: iron ore, effluent of power station disposal, disposal of contaminated chemical raw material

380AVC Magnetic Ore Separator , Automatic Magnetic Separators For Slurry 0



380AVC Magnetic Ore Separator , Automatic Magnetic Separators For Slurry 1
