Product Details:
|
| Model: | WG300-V-7 | Magnetic Field Strength（T）: | 3 |
|---|---|---|---|
| Inputvoltage（ACV）: | 380 | Maximum Output Current（DCA）: | 20 |
| Maximum Coil Power（KW）: | 11 | Insulation Method: | E |
| Cooling Method: | Water And Oil Double Cooling | Magnetic Lumen Diameter（mm）: | 300 |
| Yield（T）: | 1.5-4 | Dimension（mm）: | 1320*1320* 2500 |
| Main Machine Weight （KG）: | 1020 | Usage: | Applicable For 60-300 Mesh Feedstock Of Iron Elimination |
| High Light: | magnetic roll separator,metal separation equipment |
||

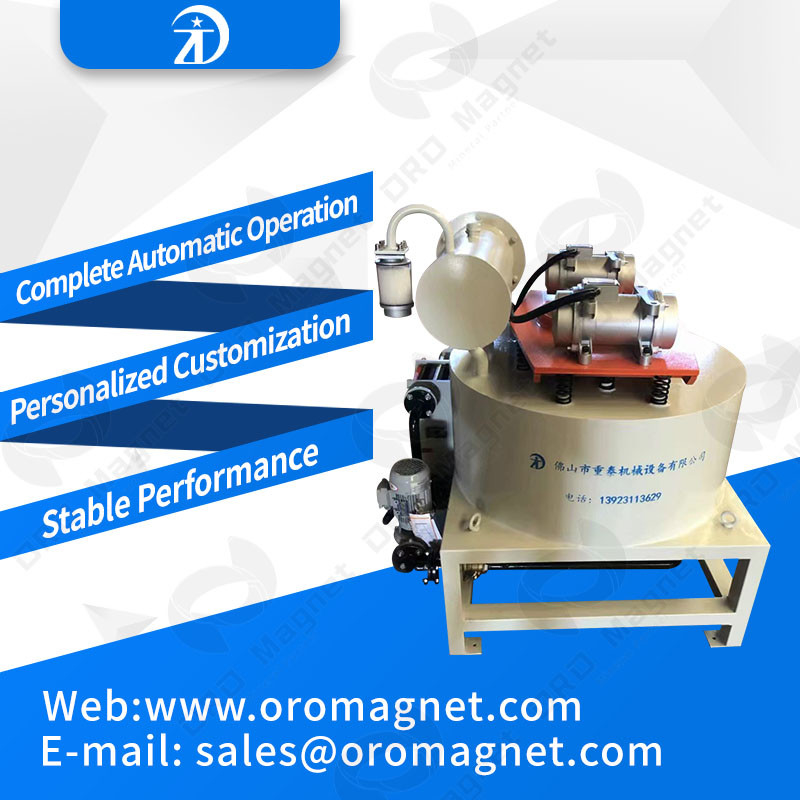

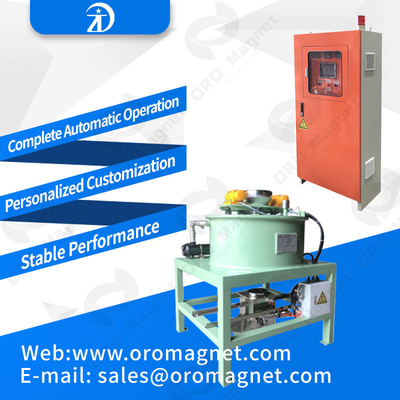

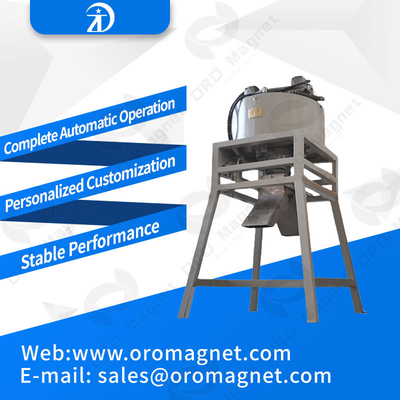

Electromagnetic Dry Powder Iron Separator / fine Magnetic Separator
Product Description
1.Introduction of dry magnetic separator
It can be used to remove the weak magnetic oxides, chip-like skin contaminants such as rust from powder-like material. It has been widely used in ceramics, glass, refractory material and other non-metallic minerals, medicine, chemical industry, purification of food materials and other industries.
2.Advantage of dry magnetic separator
1.Simple installation, convenient cleaning.
2.Its magnetism is designed uniquely.The magnetic source is permanent magnetic NdFeB materials ,which is the king of magnetism.With high magnetic field on each nodes, it has high gradient magnetic field and good effect of iron eliminating.
3.Little consumption.Low energy consumption and easy for operation and maintenance
4.With small size and easy disassemble.
3.Technical parameter of the machine
| Model | WG160B-V-3 | WG220B-V-3 | WG300-V-7 | WG220B-V-11 | WG430-V-11 | WG220-V-15 | WG600-V-20 |
| Magnetic field strength(t) | 2 | 2 | 3 | 3 | 3 | 5 | 3 |
| Input voltage(VAC) | 380 | 220 | 380 | 380 | 380 | 380 | 380 |
| Maximun output current(A) | 15 | 7 | 20 | 20 | 20 | 30 | 40 |
| Maximum coil power(KW) | 3 | 3 | 7 | 11 | 11 | 15 | 20 |
| Insulation category | E | E | E | E | E | E | E |
| Cooling method | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling |
| Magnetic lumen diameter(mm) | 160 | 220 | 300 | 220 | 430 | 220 | 600 |
| Yield(m3/h) | 0.5-1.5 | 43833 | 1.5-4 | 0.5-3 | 1.5-6 | 1-3 | 3-8 |
| Dimension(mm) | 700*700 | 860*860 | 1320*1320 | 1300*110 | 1500*1500 | 1350*1100 | 1500*1500 |
| *1450 | *1540 | *2500 | *1800 | *2500 | *1850 | *2000 | |
| Main machine weight(kg) | 450 | 490 | 1020 | 1130 | 1210 | 1500 | 2000 |
| Usage | 60-300 mesh feedstock of iron elimination | ||||||
