Product Details:
|
| Input Voltage（ACV）: | 380 | Maximumoutput Current（DCA）: | 7 |
|---|---|---|---|
| Maximum Coil Power（KW）: | 3 | Insulation Method: | E |
| Cooling Method: | Water And Oil Double Cooling | Magnetic Lumen Diameter（mm）: | 89 |
| Yield（m³/h）: | 0.1-0.5 | Dimension（mm）: | 500*500* 1000 |
| Mainmachine Weight （KG）: | 250 | Usage: | Applicable For 40-400 Mesh Feedstock Of Iron Elimination |
| High Light: | Electro magnetic Separator,wet drum separator |
||

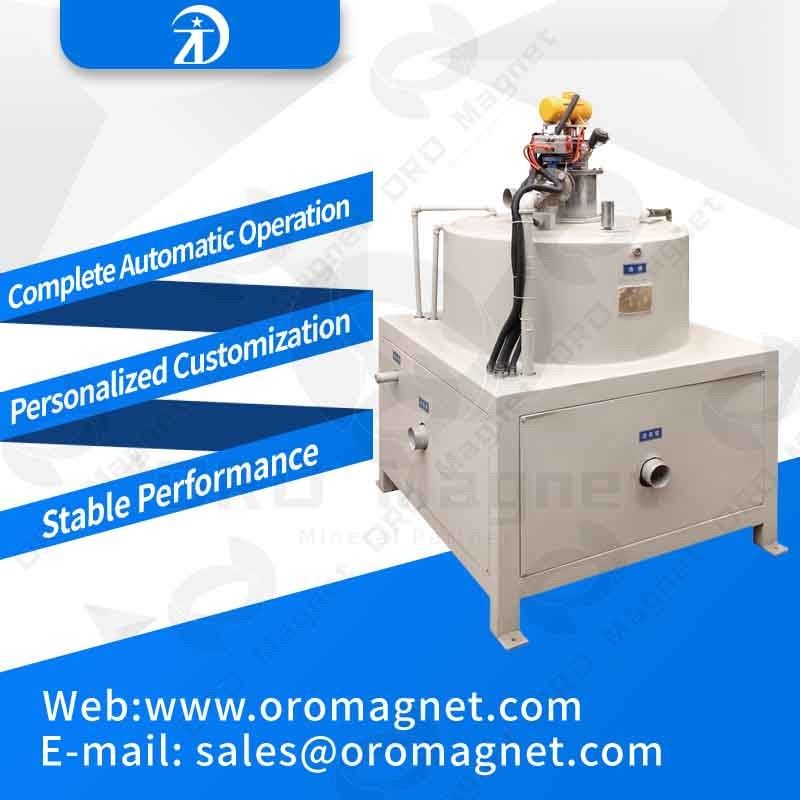

Efficiency Laboratory Small Electromagnetic Separator 3kw 380v 50hz
Product characteristic
An obvious efficiency in iron remove.
Applying water to cool the machine
The valve have a good quality
Netting is made from the special material
Operation process
Firstly, power on ,then open the admission valve and slurry valve, close the back slurry valve and iron discharging valve, then magnetizing.
After a few minutes later(you can set the time what you like depending on yourself condition),close the admission valve and slurry valve, open the back slurry valve to discharge the remaining slurry in the separator.
Then magnetic cutting, close the admission valve, slurry valve and back slurry valve, open the iron discharging valve to discharge the magnetic material which are absorbed on the magnetic media.
Application scope
Electromagnetic slurry separators are widely used in the mine, chemical and food industries to remove the iron and magnetic material from those raw material.
For example:organic chemical industry and related equipment,organic chemical industry and related equipment, Fine chemicals and related equipment,paper treatment ,paper pulp treatment,fiber stuff treatment,food treatment ,flavoring treatment ,grain and oil treatment,water treatmen ,Quartz Beneficiation,Sodium potassium feldspar Beneficiation,Kaolin Beneficiation
Technical parameter
|
Model |
1.5A160 |
3A190 |
7A250 |
7A300 |
11A250 |
18.5A250 |
20A400 |
|
Magnetic field strength(T) |
2.5 |
2 |
3 |
3 |
3.5 |
3 |
3.5 |
|
Input voltage(ACV) |
220 |
220 |
380 |
380 |
380 |
380 |
380 |
|
Maximumoutput current(DCA) |
10 |
7 |
20 |
20 |
20 |
55 |
25 |
|
Maximum coil power(KW) |
1.5 |
3 |
7 |
7 |
11 |
18.5 |
20 |
|
Insulation method |
E |
E |
E |
E |
E |
E |
E |
|
Cooling method |
water and oil double cooling |
water and oil double cooling |
water and oil double cooling |
water and oil double cooling |
water and oil double cooling |
water and oil double cooling |
Water and oil double cooling |
|
Magnetic lumen diameter(mm) |
160 |
190 |
250 |
300 |
250 |
250 |
400 |
|
Pipe size(mm) |
50 |
50 |
89 |
89 |
89 |
89 |
89 |
|
yield(m³/h) |
3-10 |
5-10 |
10-30 |
15-30 |
10-30 |
10-30 |
20-60 |
|
dimension(mm) |
946(H) |
860*860* 1540 |
1200*1200* 1850 |
1200*1200* 1850 |
1200*1200* 1850 |
1400*1400*1850 |
1500*1500* 1850 |
|
Main machine weight (KG) |
180 |
510 |
1050 |
1070 |
1210 |
1500 |
3000 |
|
Usage |
Applicable for 40-400 mesh feedstock of iron elimination |
||||||
