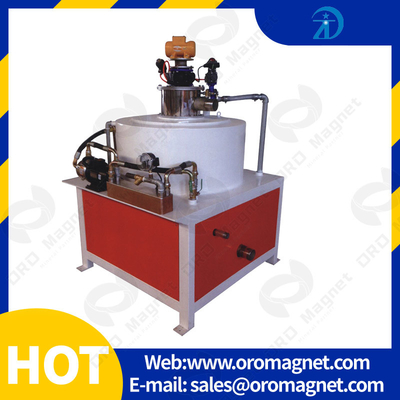

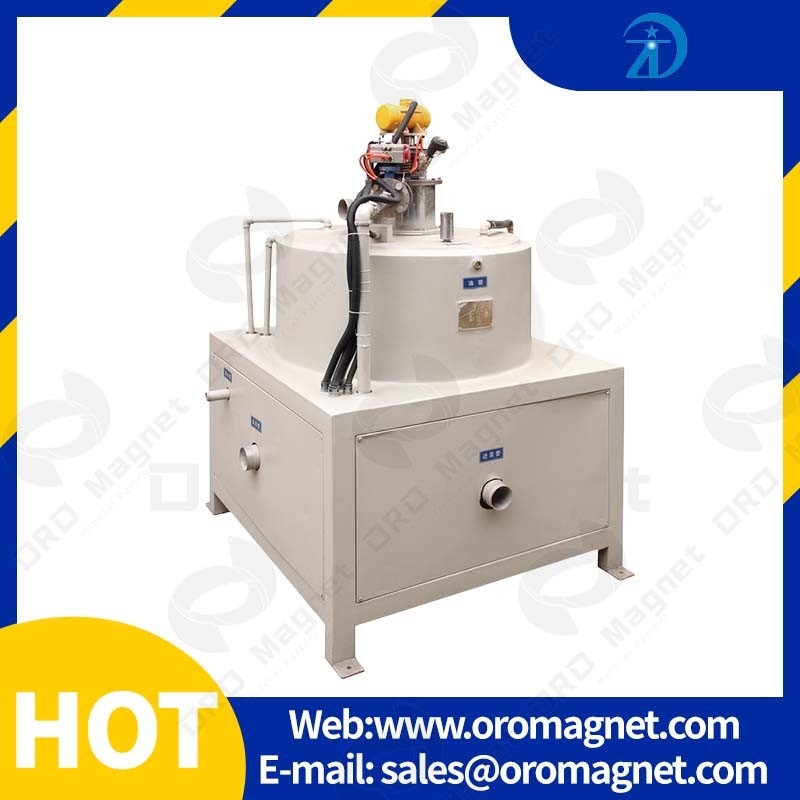

Magnetic Separation Equipment For Iron Ore Beneficiation Plant 18.5KW φ 250mm

Magnetic Separation Equipment For Iron Ore Beneficiation Plant 18.5KW φ 250mm
Magnetic Separation Equipment For Iron Ore Beneficiation Plant 18.5KW φ 250mm Magnetic Separation Equipment For Iron Ore Beneficiation Plant 18.5KW φ 250mm

Large Image :  Magnetic Separation Equipment For Iron Ore Beneficiation Plant 18.5KW φ 250mm

Product Details:
Place of Origin: FOSHAN,GUANGDONG,CHINA
Brand Name: ZT
Certification: ISO9001:2008
Model Number: 18.5A250
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Film And Wooden Case
Delivery Time: Within 25 days after the advance payment is made
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50 SETS PER MONTH

Magnetic Separation Equipment For Iron Ore Beneficiation Plant 18.5KW φ 250mm

Description
Magnetic Field Strength (T): 3 Input Voltage(ACV): 380
Maximumoutput Current(DCA): 55 Maximum Coil Power(KW): 18.5
Insulation Method: E Cooling Method: Water And Oil Double Cooling
Magnetic Lumen Diameter(mm): 250 Pipe Size(mm): 89
Yield(m³/h): 10-30 Dimension(mm): 1400*1400*1850
Mainmachine Weight (KG): 1500 Usage: Applicable For 40-400 Mesh Feedstock Of Iron Elimination
High Light:

Electro magnetic Separator

,

wet drum separator



350ACV 55DCA Eletromagnetic Separator Automatic for Slurry 3T coil power 18.5KW





 Operation process



1, power on ,then open the admission valve and slurry valve, close the back slurry valve and iron discharging valve, then magnetizing.

2,After a few minutes later(you can set the time what you like depending on yourself condition),close the admission valve and slurry valve, open the back slurry valve to discharge the remaining slurry in the separator, then magnetic cutting, close the admission valve, slurry valve and back slurry valve, open the iron discharging valve to discharge the magnetic material which are absorbed on the magnetic media.





Product characteristic



High gradient magnetic field

Efficiency in iron removed

Water-cooling machine

Convenient and quick





Technology parameter of contrast



Model

1.5A160

3A89

3A190

7A250

7A300

11A250

20A400

Magnetic field strength(T)

2.5

2.5

2

3

3

3.5

3.5

Input voltage(ACV)

220

380

220

380

380

380

380

Maximumoutput current(DCA)

10

7

7

20

20

20

25

Maximum coil power(KW)

1.5

3

3

7

7

11

20

Insulation method

E

E

E

E

E

E

E

Cooling method

water and oil double cooling

water and oil double cooling

water and oil double cooling

water and oil double cooling

water and oil double cooling

water and oil double cooling

Water and oil double cooling

Magnetic lumen diameter(mm)

160

89

190

250

300

250

400

Pipe size(mm)

50

50

50

89

89

89

89

yield(m³/h)

3-10

0.1-0.5

5-10

10-30

15-30

10-30

20-60

dimension(mm)

946(H)

500*500*

1000

860*860*

1540

1200*1200*

1850

1200*1200*

1850

1200*1200*

1850

1500*1500*

1850

Main machine weight

(KG)

180

250

510

1050

1070

1210

3000

Usage

Applicable for 40-400 mesh feedstock of iron elimination





Application scope



Electromagnetic slurry separators series :organic chemical industry and related equipment, Fine chemicals and  related equipment,paper treatment ,paper pulp treatment,fiber stuff treatment,food  treatment ,flavoring treatment ,grain and oil treatment,water treatmen ,Quartz Beneficiation,Sodium potassium feldspar  Beneficiation,Kaolin Beneficiation.
