Product Details:
|
| Swivel Outer Diameter（mm）: | 1750 | Ore Size（mm）， （-200 %）: | -1.2（30-100） |
|---|---|---|---|
| Ore Density（%）: | 10-40 | Ore Pulp Transit Capability（m³/h）: | 50-100 75-150 |
| Dry Ore Throughput（t/h）: | 30-50 | Rated Background Magnetic Field（T）: | 1.0 |
| Rated Energizing Current （A）: | 1200 | Rated Energizing Voltage（V）: | 31 |
| Rated Exciting Power（Kw）: | 37 | Rotaing Pulsation Power（Kw）: | 4 |
| Pulse Stroke（mm）: | 1-30 | Water Supplied Speed（Mpa）: | 0.2-0.3 |
| Water Consumption（m³/h）: | 80-120 | Cooling Water Processing（m³/h）: | 4-5 |
| Weight Of Biggest Parts（T）: | 11 | Dimension（length X Wide X Height，mm）: | 3900x3300x3800 |
| High Light: | dry drum magnetic separator,drum magnetic separator |
||

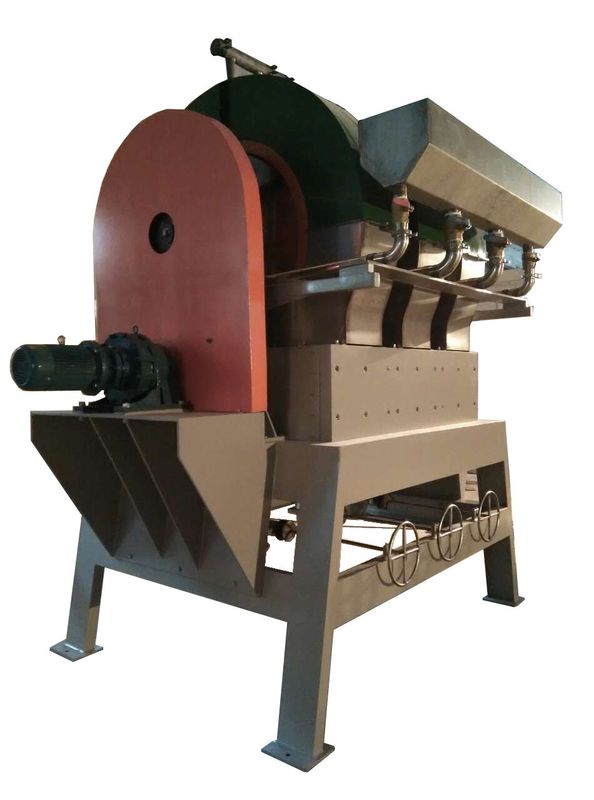

Feldspar,Quartz,Kaolin Magnetic Particle Separator Magnetic Iron Separator ISO
Company profile
Foshan Zhongtai Machinery Company Limited is a national high-tech enterprise,owns a number of invention patents, with research and development production,major products are: magnetic separator for non-metallic mineral raw materials, ceramic glaze, metal, plastics, food and all kinds of industries.The main products are: electromagnetic Slurry separator, electromagnetic powder machine, permanent magnetic separator vertical ring electromagnetic separator,vertical ring permanent magnetic separator and different sizes of magnetic plates, magnetic rod, drawer type magnetic separator etc; Our company possesses professional technical team and sophisticated laboratory,can be customized for magnetic separator. Zhongtai Limited since 2014 get involved in domestic and international mineral processing engineering technology and the fields of whole line project design etc .
Product characteristic
Vertical ring magnetic separator come over the technical problem that the magnetic media of high gradient flat ring magnetic separator is easy to block up.
The separator possesses many advantages such as high magnetic field intensity, high gradient magnetic field, big concentration ratio, having a wide range in the particle size of feeding ore and the thickness of slurry, intelligent control operation, get a satisfactory mineral processing result when separate the low intensity magnetic ores.
Operation process
1. When mineral processing, firstly, filled the separation cavity with water, open the pulsating equipment, then feeding the raw ore from the feed box.
2. The magnetic particle in the separation cavity separate from the non-magnetic particle by the different magnetic force, pulsating fluid force and gravity which those particles are acted on.
3. The magnetic particles are absorbed on the magnetic media, the nonmagnetic particle will discharge from the iron discharge. several minutes later, magnetic cutting, then flushing the magnetic particle from the magnetic media.
Application scope
It is used to purify the non-metallic minerals and separate the low intensity magnetic minerals. The non-metallic minerals includes quartz, feldspar, nepheline, fluorite,spodumene,kaolin. The low intensity magnetic minerals includes hematite, limonite and tantalum-niobium ores.
Technical parameter
|
Model |
WD-1250 |
WD-1500 |
WL1750T |
WD-2000 |
|
Swivel outer diameter(mm) |
1250 |
1500 |
1750 |
2000 |
|
Ore size(mm), (-200 mesh %) |
-1.2(30-100) |
-1.2(30-100) |
-1.2(30-100) |
-1.2(30-100) |
|
Ore density(%) |
10-40 |
10-40 |
10-40 |
10-40 |
|
Ore pulp transit capability(m³/h) |
20-50 |
50-100 |
75-150 |
100-200 |
|
Dry ore throughput(t/h) |
10-18 |
20-30 |
30-50 |
50-80 |
|
Rated background magnetic field(T) |
1.0 |
1.0 |
1.0 |
1.0 |
|
Rated energizing current(A) |
850 |
950 |
1200 |
1200 |
|
Rated energizing voltage(V) |
23 |
29 |
31 |
35 |
|
Rated exciting power(Kw) |
19 |
27 |
37 |
40 |
|
Swivel rotating power(Kw) |
1.5 |
3 |
4 |
5.5 |
|
Rotating pulsation power(Kw) |
2.2 |
4 |
4 |
7.5 |
|
Pulse stroke(mm) |
0-20 |
0-30 |
0-30 |
0-30 |
|
Pulse speed(times/min) |
0-300 |
0-300 |
0-300 |
0-300 |
|
Water consumption(Mpa) |
0.15-0.3 |
0.2-0.3 |
0.2-0.3 |
0.2-0.3 |
|
Water consumption(m³/h) |
30-45 |
60-90 |
80-120 |
100-150 |
|
Cooling water processing(m³/h) |
2.5-3 |
3-4 |
4-5 |
5-6 |
|
Weight of biggest parts(T) |
4 |
5 |
11 |
14 |
|
dimension(length x width x height,mm) |
3200x2340x2700 |
3600x2900x3200 |
3900x3300x3800 |
4200x3550x4200 |
