ISO9001 Mineral Processing Dried Powder Electro Magnetic Separator Mineral Processing Projects

Customer Reviews
Product was sent very quickly and arrived on time and in good shape. Packaging was good to insure no damage to the unit.

—— Joseph Camara Jr.

great product ,great price arrived as expected

—— Darrin Lynn

I saved money (30%) by getting this at this website versus a local company. Works good looks bigger in photos but worth the price

—— William H.

Works great! Highly recommend.

—— gus ott

I'm Online Chat Now

ISO9001 Mineral Processing Dried Powder Electro Magnetic Separator Mineral Processing Projects

ISO9001 Mineral Processing Dried Powder Electro Magnetic Separator Mineral Processing Projects
ISO9001 Mineral Processing Dried Powder Electro Magnetic Separator Mineral Processing Projects ISO9001 Mineral Processing Dried Powder Electro Magnetic Separator Mineral Processing Projects ISO9001 Mineral Processing Dried Powder Electro Magnetic Separator Mineral Processing Projects

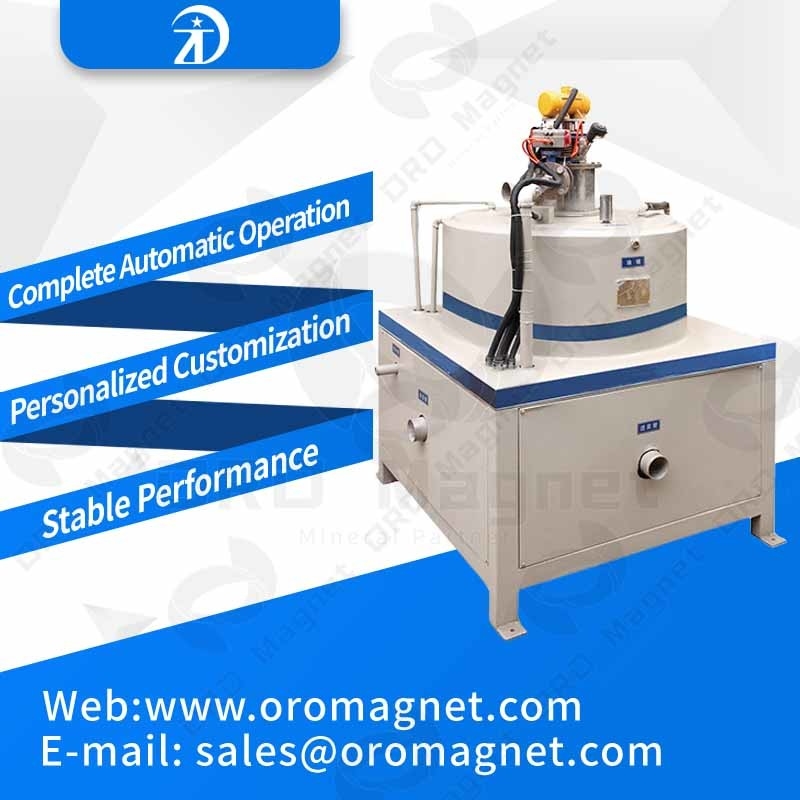

Large Image :  ISO9001 Mineral Processing Dried Powder Electro Magnetic Separator Mineral Processing Projects

Product Details:
Place of Origin: FOSHAN,GUANGDONG,CHINA
Brand Name: ZT
Certification: ISO9001:2008
Model Number: WD-7A300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Film And Wooden Case
Delivery Time: Within 30 days after the advance payment is made
Supply Ability: 50 SETS PER MONTH

ISO9001 Mineral Processing Dried Powder Electro Magnetic Separator Mineral Processing Projects

Description
Model: 7A300 Magnetic Field Strength(T): 3
Inputvoltage(ACV): 380 Maximum Output Current(DCA): 20
Maximum Coil Power(KW): 11 Insulation Method: E
Cooling Method: Water And Oil Double Cooling Magnetic Lumen Diameter(mm): 300
Yield(T): 1.5-4 Dimension(mm): 1320*1320* 2500
Main Machine Weight (KG): 1020 Usage: Applicable For 60-300 Mesh Feedstock Of Iron Elimination
High Light:

Electro magnetic Separator

,

wet drum separator



ISO9001 Approved Mineral Processing Dried Powder Electromagnetic Separator





Company profile

Foshan Zhongtai Machinery Company Limited provide customers with convenient services,meantime, though the research platform cooperation and communication with people in the technology industry,continues update the whole line science solutions of non-metallic mineraI. As a have technology and marketing services high-tech enterprise, Zhongtai Limited provides high-quality products, advanced production technology, excellent product quality ,perfect after- service and the support and trust from customers around the world. To up the; set up national famous brands, moving towards the world- class enterprise.



Product characteristic



strong magnetic force

Large wrap angle and multi-magnetic-pole.

With the mechanical vibrating equipment

Easier to discharge the iron.





Operation process



Mineral Processing Projects Electromagnetic Separator,Feed the dry powder from the hopper, meanwhile make the separator state at the magnetizing and run a vibrator. After a period ,stop feeding, cut off the magnetic device, run the other vibrator(keep the two vibrator running), poke the raffle of drain of material funnel into the iron discharge. Then discharge the magnetic material absorbed on the magnetic media relying on the vibrating force.





Technical parameter of contrast



Model

3A160

3A220

11A220

11A430

15A220

20A600

Magnetic field strength(T)

2

2

3

3

5

3

Input voltage(ACV)

380

220

380

380

380

380

Maximum output current(DCA)

15

7

20

20

30

40

Maximum coil power(KW)

3

3

11

11

15

20

Insulation method

E

E

E

E

E

E

Cooling method

water and oil double cooling

water and oil double cooling

water and oil double cooling

water and oil double cooling

water and oil double cooling

water and oil double cooling

Magnetic lumen diameter(mm)

160

220

220

430

220

600

yield(T)

0.5-1.5

1-3

0.5-3

1.5-6





dimension(mm)

700*700*1450

860*860*

1540

1300*1100*

1800

1500*1500*

2500

1350*1100*1850

1500*1500*2000

Main machine weight

(KG)

450

490

1130

1210

1500

2000

Usage

Applicable for 60-300 mesh feedstock of iron elimination





Application scope



1. Mineral Processing Projects Electromagnetic Separator are applied in process the fine mineral particle, the magnetic fine ferrous mineral particle such as  hematite, martite, limonite, siderite, chromite, polianite; and also fine nonferrous metals mineral particle, for example wolframite; fine rare earth mineral particle, for example eremite; and fine nonmetallic mineral particle such as feldspar, quartz, kaolin. 2. Electromagnetic dried-powder separators are suitable for using at the drought and water shortage area.

For example:Kaolin Beneficiation,Sodium potassium feldspar  Beneficiation,Quartz Beneficiation  ,Polarity powder material Beneficiation ,pharmacy  treatment,active pharmaceutical ingredient(API)treatment,antibiotics treatment,paper treatment ,paper pulp treatment,fiber stuff treatment,organic chemical industry and  related equipment  ,Fine chemicals and  related equipment.



ISO9001 Mineral Processing Dried Powder Electro Magnetic Separator Mineral Processing Projects 0
