Mineral Processing High Gradient Magnetic Separator Electromagnetic magnetic Separation Equipment

Mineral Processing High Gradient Magnetic Separator Electromagnetic magnetic Separation Equipment
Mineral Processing High Gradient Magnetic Separator Electromagnetic magnetic Separation Equipment

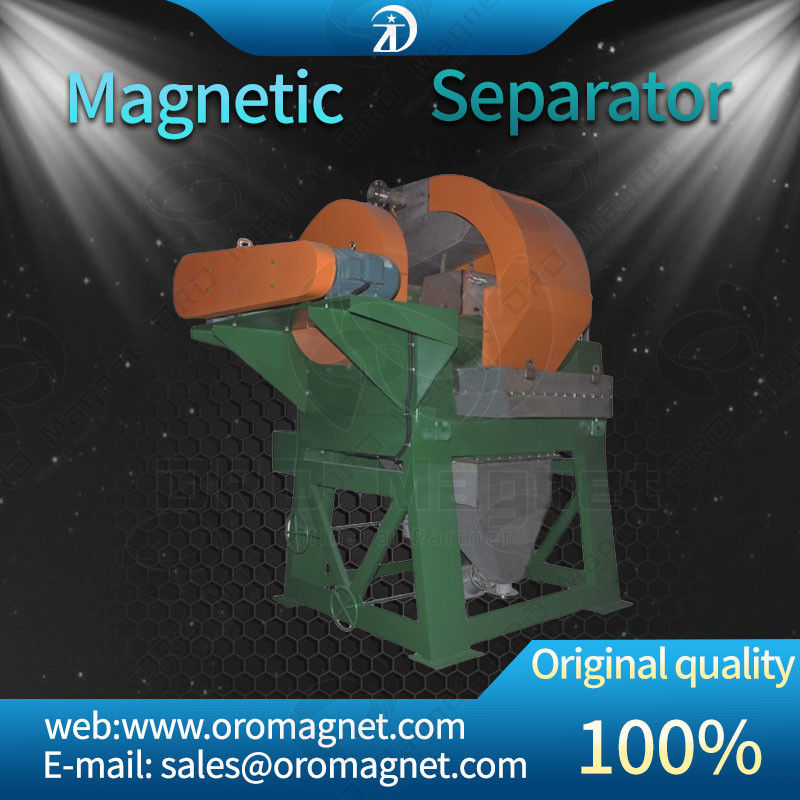

Large Image :  Mineral Processing High Gradient Magnetic Separator Electromagnetic magnetic Separation Equipment

Product Details:
Place of Origin: Foshan.China
Brand Name: ZT
Certification: ISO9001:2008
Model Number: WL1750T
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Film and wooden case
Delivery Time: Within 30 days after the advance payment is made
Supply Ability: 50 SETS PER MONTH

Mineral Processing High Gradient Magnetic Separator Electromagnetic magnetic Separation Equipment

Description
Swivel Outer Diameter(mm): 1750 Ore Size(mm), (-200 %): -1.2(30-100)
Ore Density(%): 10-40 Ore Pulp Transit Capability(m³/h): 50-100 75-150
Dry Ore Throughput(t/h): 30-50 Rated Background Magnetic Field(T): 1.0
Rated Energizing Current (A): 1200 Rated Energizing Voltage(V): 31
Rated Exciting Power(Kw): 37 Rotaing Pulsation Power(Kw): 4
Pulse Stroke(mm): 1-30 Water Supplied Speed(Mpa): 0.2-0.3
Water Consumption(m³/h): 80-120 Cooling Water Processing(m³/h): 4-5
Weight Of Biggest Parts(T): 11 Dimension(length X Wide X Height,mm): 3900x3300x3800
High Light:

magnetic roller separator

,

drum magnetic separator

Feldspar,Quartz,Kaolin Magnetic Particle Separator Magnetic Iron Separator ISO



Company profile



Foshan Zhongtai Machinery Company Limited is a national high-tech enterprise,owns a number of invention patents, with research and development production,major products are: magnetic separator for non-metallic mineral raw materials, ceramic glaze, metal, plastics, food and all kinds of industries.The main products are: electromagnetic Slurry separator, electromagnetic powder machine, permanent magnetic separator vertical ring electromagnetic separator,vertical ring permanent magnetic separator and different sizes of magnetic plates, magnetic rod, drawer type magnetic separator etc; Our company possesses professional technical team and sophisticated laboratory,can be customized for magnetic separator. Zhongtai Limited since 2014 get involved in domestic and international mineral processing engineering technology and the fields of whole line project design etc .



Product features



Vertical ring magnetic separator coming over the technical problem that the magnetic media of high gradient flat ring magnetic separator is easy to block up.



The separator possesses many advantages such as high magnetic field intensity, high gradient magnetic field, big concentration ratio, having a wide range  in the particle size of feeding ore and the thickness of slurry, intelligent control operation, get a satisfactory mineral processing result when separate the low intensity magnetic ores.



Operation process



1. When mineral processing, firstly, filled the separation cavity with water, open the pulsating equipment, then feeding the raw ore from the feed box.

2. The magnetic particle in the separation cavity separate from the non-magnetic particle by the different magnetic force, pulsating fluid force and gravity which those particles are acted on.

3. The magnetic particles are absorbed on the magnetic media, the nonmagnetic particle will discharge from the iron discharge. several minutes later, magnetic cutting, then flushing the magnetic particle from the magnetic media.



Application scope



It is used to purify the non-metallic minerals and separate the low intensity magnetic minerals. The non-metallic minerals includes quartz, feldspar, nepheline, fluorite,spodumene,kaolin. The low intensity magnetic minerals includes hematite, limonite and tantalum-niobium ores.



Technical parameter



Model

WD-1250

WD-1500

WL1750T

WD-2000

Swivel outer diameter(mm)

1250

1500

1750

2000

Ore size(mm),

(-200 mesh %)

-1.2(30-100)

-1.2(30-100)

-1.2(30-100)

-1.2(30-100)

Ore density(%)

10-40

10-40

10-40

10-40

Ore pulp transit capability(m³/h)

20-50

50-100

75-150

100-200

Dry ore throughput(t/h)

10-18

20-30

30-50

50-80

Rated background magnetic field(T)

1.0

1.0

1.0

1.0

Rated energizing current(A)

850

950

1200

1200

Rated energizing voltage(V)

23

29

31

35

Rated exciting power(Kw)

19

27

37

40

Swivel rotating power(Kw)

1.5

3

4

5.5

Rotating pulsation power(Kw)

2.2

4

4

7.5

Pulse stroke(mm)

0-20

0-30

0-30

0-30

Pulse speed(times/min)

0-300

0-300

0-300

0-300

Water consumption(Mpa)

0.15-0.3

0.2-0.3

0.2-0.3

0.2-0.3

Water consumption(m³/h)

30-45

60-90

80-120

100-150

Cooling water processing(m³/h)

2.5-3

3-4

4-5

5-6

Weight of biggest parts(T)

4

5

11

14

dimension(length x width x height,mm)

3200x2340x2700

3600x2900x3200

3900x3300x3800

4200x3550x4200
