Product Details:
|
| Model: | WG160-B-V-3 | Magnetic Field Strength（T）: | 2 |
|---|---|---|---|
| Inputvoltage（ACV）: | 380 | Maximum Output Current（DCA）: | 9 |
| Maximum Coil Power（KW）: | 3 | Insulation Method: | E |
| Cooling Method: | Water And Oil Double Cooling | Magnetic Lumen Diameter（mm）: | 380 |
| Yield（T）: | 0.5-1 | Dimension（mm）: | 860*860* 1540 |
| Main Machine Weight （KG）: | 490 | Usage: | Applicable For 60-300 Mesh Feedstock Of Iron Elimination |
| High Light: | drum type magnetic separator,wet high intensity magnetic separator |
||

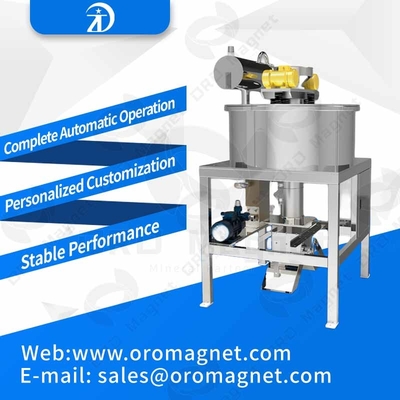

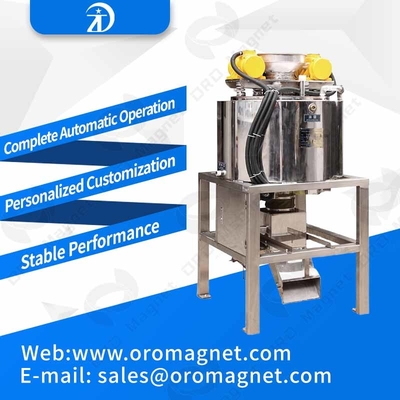

Electromagnetic Powder Separator non-metallic powder plastic particle medicine chemical powder
Foshan Zhontai Machinery Company Limited provide customers with convenient services,meantime, though the research platform cooperation and communication with people in the technology industry ,continues update the whole line science solutions of non-metallic mineraI.As a have technology and marketing services high-tech enterprise, Zhongtai Limited provides high-quality products, advanced production technology,excellent product quality, perfect after- service and the support and trust from customers around the world.To up the ; set up national famous brands, moving towards the world- class enterprise.
＜Usage＞
1. Model 3A220S is designed to remove fine iron powders from dry powdered materials
to get the best results in food, chemical, plastic, ceramic, medical industries and many other.
2. Specific product is designed only to be used for secondary cell battery to handle cathode material and anode material.
Electrically conductive materials like lead, copper, zinc, tin, bronze are not used for this case.
＜Features＞
1. Electro-magnetized screens capture fine iron particles in microns.
2. Vibration motor ensures effective flow to the filter screen.
3. Limited amount of roll-in material.
＜Specifications＞
1. Standard high magnetic force (20000 gauss)
2. Additional Maghammer helps better flow rate.
3. Screen pitch can be selected for best results.
4. Controller included
＜Technical parameter＞
| Model | WG160B-V-3 | WG220B-V-3 | WG300-V-7 | WG220B-V-11 | WG430-V-11 | WG220-V-15 | WG600-V-20 |
| Magnetic field strength(t) | 2 | 2 | 3 | 3 | 3 | 3.5 | 3 |
| Input voltage(VAC) | 380 | 220 | 380 | 380 | 380 | 380 | 380 |
| Maximun output current(A) | 15 | 7 | 20 | 20 | 20 | 30 | 40 |
| Maximum coil power(KW) | 3 | 3 | 7 | 11 | 11 | 15 | 20 |
| Insulation category | E | E | E | E | E | E | E |
| Cooling method | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling |
| Magnetic lumen diameter(mm) | 160 | 220 | 300 | 220 | 430 | 220 | 600 |
| Yield(m3/h) | 0.5-1.5 | 43833 | 1.5-4 | 0.5-3 | 1.5-6 | 1-3 | 3-8 |
| Dimension(mm) | 700*700 | 860*860 | 1320*1320 | 1260*1260 | 1367*1367 | 1350*1100 | 1500*1500 |
| *1450 | *1540 | *2500 | *2017 | *2017 | *1850 | *2500 | |
| Main machine weight(kg) | 450 | 490 | 1020 | 1130 | 1210 | 1500 | 2000 |
| Usage | 60-300 mesh feedstock of iron elimination | ||||||
Client's processing picture
