|Maxiumum Coil Power（KW）:||103||Maximum Output Current（DCA）:||1400|
|Magnetic Lumen Diameter:||750mm||Insulation Me:||E|
|Main Machine Weight（KG）:||16600||Dimension（L*W*H):||2659*1978*2518|
drum type magnetic separator,
wet high intensity magnetic separator

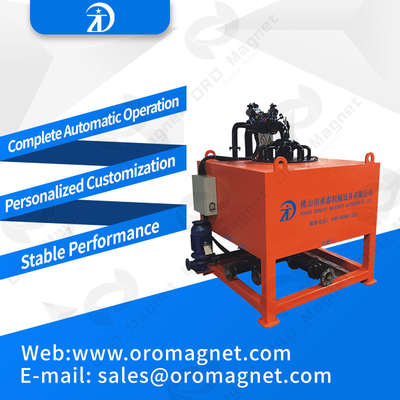

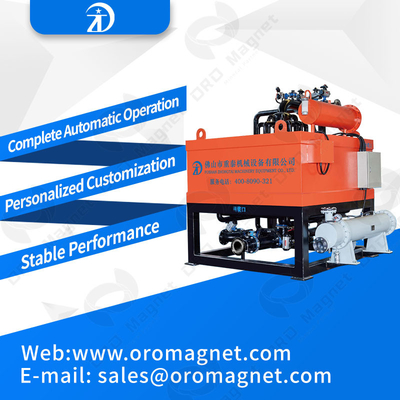

1400DCA Magnetic Water Coolant Separator , High Intensity Magnetic Separation Equipment 750 mm
Foshan Wandaye Machinery Company Limited is a national high-tech enterprise,owns a number of invention patents, with research and development production,major products are: magnetic separator for non-metallic mineral raw materials, ceramic glaze, metal, plastics, food and all kinds of industries.The main products are: electromagnetic Slurry separator, electromagnetic powder machine, permanent magnetic separator vertical ring electromagnetic separator,vertical ring permanent magnetic separator and different sizes of magnetic plates, magnetic rod, drawer type magnetic separator etc; Our company possesses professional technical team and sophisticated laboratory,can be customized for magnetic separator. Wandaye Limited since 2014 get involved in domestic and international mineral processing engineering technology and the fields of whole line project design etc .
Automatic Water-cooling Eletromagnetic Slurry Separator Series advantages :
High intensity magnetic field;
The temperature inside of the machine rises slowly;
The magnetic field intensity are not easy to decrease when the machine run for a long time;
Long working period;
Have a wide range of adaption in the particle of feeding ore and the thickness of slurry;
High efficiency in mineral processing;
Easy to manual and maintain.
1. Firstly, power on, then open the admission valve and slurry valve, close the back slurry valve and iron discharging valve, then magnetizing.
2. After a few minutes later(you can set the time whatever you like depending on yourself condition),close the admission valve and slurry valve, open the back slurry valve to discharge the remaining slurry in the separator.
3. Then magnetic cutting, close the admission valve, slurry valve and back slurry valve, open the iron discharging valve to discharge the magnetic material which are absorbed on the magnetic media.
Kaolin Beneficiation,Sodium potassium feldspar Beneficiation,Quartz Beneficiation.
Ferrous metals mineral: hematite, martite, limonite, siderite, chromite, polianite.
Non-ferrous metals mineral: used for separating wolframite from pyrope.
Rare earth ore: recycle tantalum-niobium ores and monazite.
other industries: iron ore, effluent of power station disposal, disposal of contaminated chemical raw material.
|Magnetic field strength(T)||2||2.5||2.5|
|Maximum coil power(KW)||75||103||150|
|Cooling method||water cooling||water cooling||water cooling|
|Magnetic lumen diameter(mm)||500||750||1000|
|Main machine weight||14000||16600||26000|
