Product Details:
|
| Model: | WG230-V-15 | Magnetic Field Strength（T）: | 3 |
|---|---|---|---|
| Inputvoltage（ACV）: | 380 | Maximum Output Current（DCA）: | 20 |
| Maximum Coil Power（KW）: | 15 | Insulation Method: | E |
| Cooling Method: | Water And Oil Double Cooling | Magnetic Lumen Diameter（mm）: | 230 |
| Yield（T）: | 1-3 | Dimension（mm）: | 1315*1100*1856 |
| Main Machine Weight (KG）: | 1500 | Usage: | Applicable For 60-300 Mesh Feedstock Of Iron Elimination |
| High Light: | magnetic roller separator,drum magnetic separator |
||

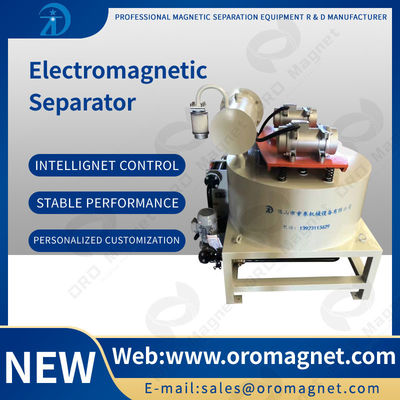

Electromagnetic High Intensity Dried-powder Magnetic Separator Machine
Company profile
Foshan Zhongtai Machinery Company Limited is a national high-tech enterprise,owns a number of invention patents, with research and development production,major products are: magnetic separator for non-metallic mineral raw materials, ceramic glaze, metal, plastics, food and all kinds of industries.The main products are: electromagnetic Slurry separator, electromagnetic powder machine, permanent magnetic separator vertical ring electromagnetic separator,vertical ring permanent magnetic separator and different sizes of magnetic plates, magnetic rod, drawer type magnetic separator etc; Our company possesses professional technical team and sophisticated laboratory,can be customized for magnetic separator. Zhongtai Limited since 2014 get involved in domestic and international mineral processing engineering technology and the fields of whole line project design etc.
Foshan Zhongtai Machinery Company Limited provide customers with convenient services ,meantime,though the research platform cooperation and communication with people in the technology industry ,continues update the whole line science solutions of non-metallic mineraI. As a have technology and marketing services high-tech enterprise, Zhongtai Limited provides high-quality products, advanced production technology,excellent product quality ,perfect after- service and the support and trust from customers around the world.To up the ;set up national famous brands, moving towards the world- class enterprise.
Operation process
Reliable High Tension Separator,Feed the dry powder from the hopper, meanwhile make the separator state at the magnetizing and run a vibrator. After a period ,stop feeding, cut off the magnetic device, run the other vibrator(keep the two vibrator running), poke the raffle of drain of material funnel into the iron discharge. Then discharge the magnetic material absorbed on the magnetic media relying on the vibrating force.
Technical parameter of contrast
| Model | WG160B-V-3 | WG220-V-25 | WG300-V-7 | WG220B-V-11 | WG430-V-11 | WG230-V-15 | WG600-V-20 |
| Magnetic field strength(t) | 2 | 3.5 | 3 | 3 | 3 | 3 | 3 |
| Input voltage(VAC) | 380 | 220 | 380 | 380 | 380 | 380 | 380 |
| Maximun output current(A) | 15 | 47 | 20 | 20 | 20 | 30 | 40 |
| Maximum coil power(KW) | 3 | 25 | 7 | 11 | 11 | 15 | 20 |
| Insulation category | E | E | E | E | E | E | E |
| Cooling method | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling |
| Magnetic lumen diameter(mm) | 160 | 220 | 300 | 220 | 430 | 230 | 600 |
| Yield(m3/h) | 0.5-1.5 | 0.5-3 | 1.5-4 | 0.5-3 | 1.5-6 | 1-3 | 3-8 |
| Dimension(mm) | 1000*860 | 2046*1980 | 1100*1100 | 1260*1260 | 1367*1367 | 1315*1100 | 1500*1500 |
| *1718 | *1977 | *1937 | *2017 | *2017 | *1856 | *2500 | |
| Main machine weight(kg) | 450 | 2080 | 1020 | 1130 | 1210 | 1500 | 2000 |
| Usage | 60-300 mesh feedstock of iron elimination | ||||||
Application scope
1.Reliable High Tension Separator are applied in process the fine mineral particle, the magnetic fine ferrous mineral particle such as hematite, martite, limonite, siderite, chromite, polianite; and also fine nonferrous metals mineral particle, for example wolframite; fine rare earth mineral particle, for example eremite; and fine nonmetallic mineral particle such as feldspar, quartz, kaolin.
2. Electromagnetic dried-powder separators are suitable for using at the drought and water shortage area.
For example:Kaolin Beneficiation,Sodium potassium feldspar Beneficiation,Quartz Beneficiation ,Polarity powder material Beneficiation ,pharmacy treatment,active pharmaceutical ingredient(API)treatment,antibiotics treatment,paper treatment ,paper pulp treatment,fiber stuff treatment,organic chemical industry and related equipment ,Fine chemicals and related equipment.
Client's processing pictures
