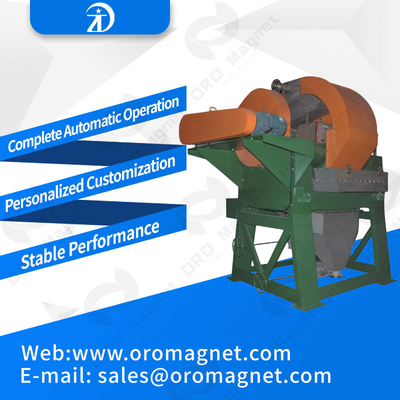

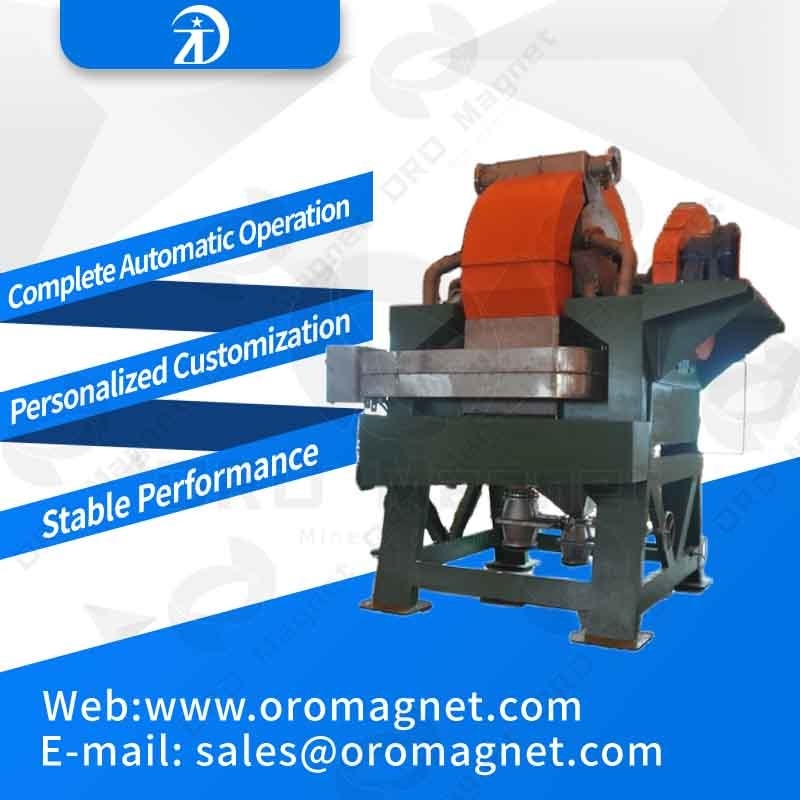

Hot Sale Model Vertical Ring High Gradient Magnetic Separator With ISO Certificate

Hot Sale Model Vertical Ring High Gradient Magnetic Separator With ISO Certificate
Hot Sale Model Vertical Ring High Gradient Magnetic Separator With ISO Certificate

Large Image :  Hot Sale Model Vertical Ring High Gradient Magnetic Separator With ISO Certificate

Product Details:
Place of Origin: FOSHAN,CHINA
Brand Name: ZT
Certification: ISO9001:2008
Model Number: 1000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Film and wooden case
Delivery Time: Within 10 days after the advance payment is made
Payment Terms: T/T, L/C

Hot Sale Model Vertical Ring High Gradient Magnetic Separator With ISO Certificate

Swivel Outer Diameter(mm): 1000 Ore Size(mm), (-200 %): -1.2
Ore Density(%): 10-40 Ore Pulp Transit Capability(m³/h): 12.5-20
Dry Ore Throughput(t/h): 4-7 Rated Background Magnetic Field(T): 1.0
Rated Energizing Current (A): 650 Rated Energizing Voltage(V): 26.5
Rated Exciting Power(Kw): 17 Rotaing Pulsation Power(Kw): 1.1
Pulse Stroke(mm): 2.2 Pulse Speed (times/minute): 0-300
Water Supplied Speed(Mpa): 0.2-0.3 Water Consumption(m³/h): 10-20
Cooling Water Processing(m³/h): 2-2.5 Weight Of Biggest Parts(T): 2.22
High Light:

magnetic roller separator


dry drum magnetic separator

Hot Sale Model Vertical Ring High Gradient Magnetic Separator With ISO Certificate


Vertical ring pulse-type high gradient magnetic separator is the strongest magnetic equipment with the best performance, state-of-the-art technology at home and abroad. This equipment fundamentally solved the blocking problem of horizontal ring magnetic separator & high gradient magnetic medium, with advantages of high concentration ratio, strong adaptability to feeding ore granularity, density and grade fluctuation, reliable operation, easy maintenance, etc. Achieving concentrate ore with high grade and high recovery rate by picking weak magnetic ore.

Working Principle

Magnetic separator consists of idler wheel, medium box, assembly part of up & low iron cores, excitation coils, ore feeding hopper, concentrate hopper, middle hopper, tailing hopper, concentrate flushing device and pulsation generator.


1.High frequency vibrating mechanism 2.Bottom iron yoke 3.Excitation coils 4.Rortary ring 5.Upper iron yoke 6.Feeding ore hopper 7.Water rinsing hopper 8.Concentrate hopper 9.Middle hopper 10.Tailings hopper 11.Liquid level box 12.Concentrate flushing device 13.Rotary ring driving mechanism 14. Rack
F-Ore feeding W–Water C–Concentrate M-Middlings T–Tailings

Magnet conductivity stainless steel bar medium box or stainless steel mesh magnet medium pile is installed with Rotary ring(4). During mineral selection, rotary ring(4)rotates clockwise, and ore slurry will be fed from feeding hopper(6),then flowing through the circle in rotary ring along gap of upper iron yoke(5),the magnetic medium is magnetized in magnetic field, forming high gradient magnetic field in surface, magnetic particles in ore slurry are attracted to the surface of magnetic medium, rotary ring(4)takes it to the top of nonmagnetic field area, and then washed into concentrate hopper by flushing water of concentrate flusher(12),nonmagnetic particles via inner annulus to outer annulus flow into tailings hopper(10) along gap of bottom iron yoke(2)and then discharged.

Main Features

* High gradient magnetic separator adopts vertical ring rotation, reverse flushing the ore. This separators adopt the vertical ring rotation type, for each group of magnetic medium, the direction of reverse flushing is opposite to the feeding direction, and the coarse particles can be flushed out by water without passing through the magnetic medium pile. Thereby it effectively avoids magnetic mediums blocking.

* Using ore slurry pulsing mechanism to drive ore slurry to generate pulsating hydro-force. Under the action of pulsating hydro-force, the mineral granules in the slurry are always scattered, which improves the quality of magnetic concentrate.

* Horizontal ring magnetic separator has strict requirements to the feeding particle granularity. We designed the unique magnetic system structure &optimized combination of magnetic medium which raises the upper limit of mineral grain size up to 2.0mm, simplifies the mineral grading work and increased adaptability of separator.

* High magnetic field strength, the background magnetic field is up to 1.3T, the surface magnetic field of medium box is up to 2.6T.

* Due to the special design of the medium box, magnetic field can generate high gradient magnetic field within high density and disorderly bars medium structure.

According to attractive force formula of magnetic field to material F=K×X×B×ΔH×V, which illustrates high gradient magnetic field makes it easier to attract paramagnetic mine.

F:attractive force; K: coefficient; X: specific susceptibility; B: flux density; ΔH: gradient; V: materials’ volume.

* Outlet box is simple, beautiful and easy connection to the site interface.

* With automatic precaution function. When the cooling water pressure is insufficient or the cooling water outlet temperature is too high, the system will give sound and light to alarm, meanwhile it will automatic cut off power supply, thus service life is extended.

* Technical parameters, like magnetic field, ring rotating speed, pulse box stroke & pulse box frequency all are adjustable, thus it is easy for user to finalize the optimum technical parameters.

* The electrical control cabinet adopts air cooling, which is more reliable and safer.

Application Range

Separation of weak magnetic minerals, such as: hematite, limonite, siderite, chromite, titanic iron ore, scheelite, wolframite, manganese and tantalum-niobium ores, etc.

For iron separation from nonmetallic minerals, such as quartz, feldspar, nepheline, fluorite, sillimanite, spodumene and kaolin, etc.


Model Designation


Hot Sale Model Vertical Ring High Gradient Magnetic Separator With ISO Certificate 0
