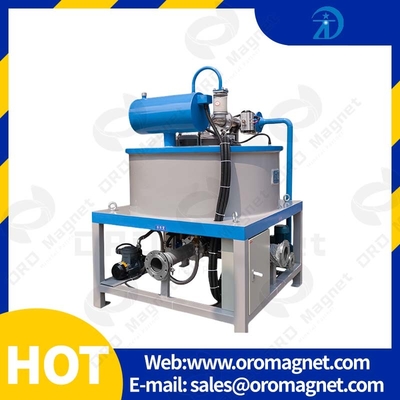

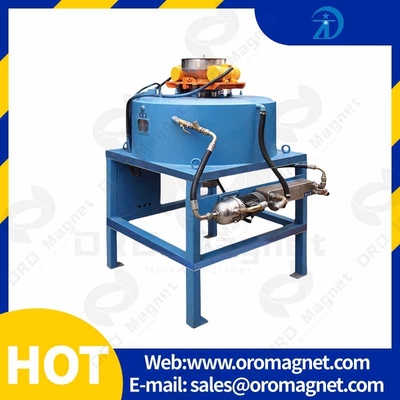

Electromagnetic dried-powder separator is a new development machine. The characteristics of magnetic system are large wrap angle, multi-magnetic-pole. The absolute value of magnetic flux density of separator area is evenly. We can design different magnetic filed intensity as the property of raw ores. Also, dried-powder separator doesn't need to come over the gravity and resistance of the raw material. When the nonmagnetic minerals break away from the magnetic cylinder very well. With the mechanical vibrating equipment, it  can not only improve the efficiency of iron remove but also can be easier to discharge the iron.





Model	WG160B-V-3	WG220B-V-3	WG300-V-7	WG220B-V-11	WG430-V-11	WG220-V-15	WG600-V-20
Magnetic field strength(t)	2	2	3	3	3	5	3
Input voltage(VAC)	380	220	380	380	380	380	380
Maximun output current(A)	15	7	20	20	20	30	40
Maximum coil power(KW)	3	3	7	11	11	15	20
Insulation category	E	E	E	E	E	E	E
Cooling method	water and oil cooling	water and oil cooling	water and oil cooling	water and oil cooling	water and oil cooling	water and oil cooling	water and oil cooling





Feed the dry powder from the hopper, meanwhile make the separators state at the magnetizing and run a vibrator. After a period, stop feeding, cut off the magnetic device, run the other vibrator(keep the two vibrator running), poke the raffle of drain of material funnel into the iron discharge. Then discharge the magnetic material absorbed on the magnetic media relying on the vibrating force.









Electromagnetic dried-powder separators are applied in process the fine mineral particle, the magnetic fine ferrous mineral particle such as hematite, martite, limonite, siderite, chromite, polianite; and also fine nonferrous metals mineral particle, for example wolfframite; fine rare earth mineral particle, for example eremite; and fine nonmetallic mineral particle such as feldspar,quartz, kaolin.





Electromagnetic dried-powder separators are suitable for using at the drought and water shortage area.
