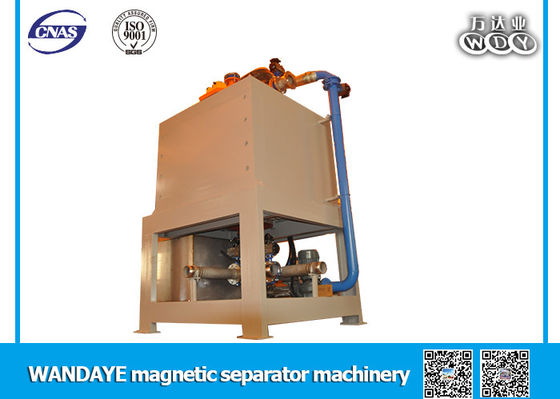

Product Details:
|
| Magnetic Field Strength（T）: | 5 | Input Voltage（ACV）: | 380 |
|---|---|---|---|
| Maximum Output Current（DCA）: | 2100 | Maxiumum Coil Power（KW）: | 75 |
| Insulation Method: | E | Cooling Method: | Water Cooling |
| Magnetic Lumen Diameter（mm）: | 600 | Pipe Size（mm）: | 100 |
| Yield（m³/h）: | 30-80 | Demension（mm）: | 2370*2000*2650 |
| Main Machine Weight（KG）: | 16350 | Usage: | Applicable For 40-400 Mesh Feedstock Of Iron Elimination |
| High Light: | wet drum magnetic separator,wet high intensity magnetic separator |
||
Product characteristic
A new model of separator with high efficiency.
High intensity magnetic field.
The temperature inside of the machine rises slowly.
Running long time and the magnetic field intensity are not easy to decrease.
Operation process
1. power on, then open the admission valve and slurry valve, close the back slurry valve and iron discharging valve, then magnetizing.
2. After a few minutes later(you can set the time whatever you like depending on yourself condition),close the admission valve and slurry valve, open the back slurry valve to discharge the remaining slurry in the separator, then magnetic cutting, close the admission valve, slurry valve and back slurry valve, open the iron discharging valve to discharge the magnetic material which are absorbed on the magnetic media.
Technology parameter
|
Model |
1000 |
750 |
G500 |
W500SL |
X500 |
|
Magnetic field strength(T) |
5 |
5 |
5 |
3 |
5 |
|
Input voltage(ACV) |
380 |
380 |
380 |
380 |
380 |
|
Maximum output current(DCA) |
2500 |
1400 |
1400 |
1400 |
1400 |
|
Maxiumum coil power(KW) |
180 |
75 |
75 |
30 |
45 |
|
Insulation method |
E |
E |
E |
E |
E |
|
Cooling method |
Water cooling |
Water cooling |
Water cooling |
Water cooling |
Water cooling |
|
Magnetic lumen diameter(mm) |
1000 |
750 |
530 |
530 |
530 |
|
Pipe size(mm) |
200 |
150 |
100 |
100 |
100 |
|
yield(m³/h) |
80-200 |
40-100 |
30-70 |
20-50 |
20-50 |
|
demension(mm) |
2710*2410*3500 |
2600*2000*3000 |
2200*1700*3000 |
1400*1700*2345 |
2000*1600*2800 |
|
Main machine weight(KG) |
35000 |
16350 |
14100 |
6500 |
9580 |
|
Usage |
Applicable for 40-400 mesh feedstock of iron elimination |
||||
Application scope
Non-metallic mineral: It is used for purifying the non-metallic mineral such as quartz, feldspar and kaolin.
Ferrous metals mineral: hematite, martite, limonite, siderite, chromite, polianite.
Non-ferrous metals mineral: used for separating wolframite from pyrope
Rare earth ore: recycle tantalum-niobium ores and monazite.
other industries: iron ore, effluent of power station disposal, disposal of contaminated chemical raw material.
