Product Details:
|
Weight: | According To Model | Type: | Magnetic Separator |
---|---|---|---|
Condition: | New | Voltage: | 380V Or Customized |
Warranty: | 12 Months | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support |
Production Capacity: | High Level | Power(w): | Depend On Model |
Installation: | Engineer Guide,Technical Guidance | Application: | Silica Sand And So On |
High Light: | wet drum magnetic separator,wet high intensity magnetic separator |

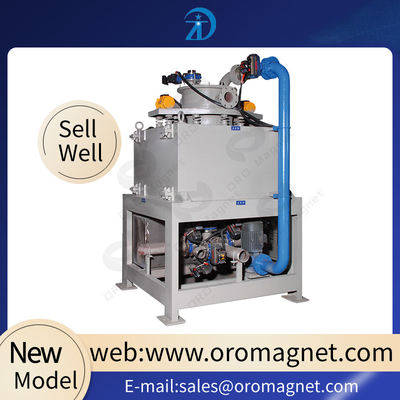

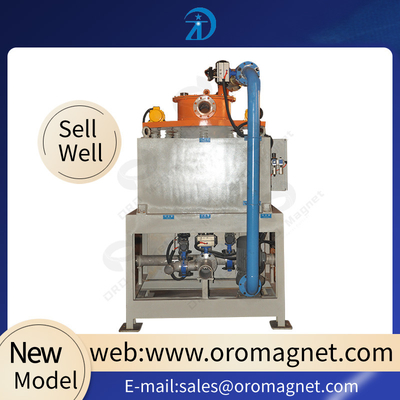

Magnetic Coolant Separator Automatic Water Cooling for Slurry 2000 X 1600 X2800 mm
Specifications
High field strength and large gradient.
Strong magnetic force.
Effectively remove strong magnetic impurities in pulp.
High efficiency in mineral processing.
Easy to manual and maintain.
Product characteristic
1. Automatic Water-cooling Eletromagnetic Slurry Separator is a new model of separator with high efficiency. The machine cools itself by deionized water circulating in the hollow copper pipe through circulating pump.
2. Owing to the special structure,Water-cooling Eletromagnetic Slurry Separator have the following advantages: high intensity magnetic field; the temperature inside of the machine rises slowly, the magnetic field intensity are not easy to decrease when the machine run for a long time; long working period, have a wide range of adaption in the particle of feeding ore and the thickness of slurry; high efficiency in mineral processing; easy to manual and maintain.
Operation process
Firstly, power on, then open the admission valve and slurry valve, close the return slurry valve and iron discharging valve, then magnetizing. After a few minutes later(you can set the time whatever you like depending on yourself condition),close the admission valve and slurry valve, open the back slurry valve to discharge the remaining slurry in the separator, then magnetic cutting, close the admission valve, slurry valve and back slurry valve, open the iron discharging valve to discharge the magnetic material which are absorbed on the magnetic media.
Description:
Work magnetic source using high magnetic energy product and dielectric materials with high gradient, high field intensity, big gradient, strong magnetic force.
Uniform distribution, the density of soft magnetic medium has greatly increased the capture probability of ferromagnetic impurities in pulp.
Due to the resistance of dielectric materials can make the iron slurry is longer than the time slowly through the magnetic field in a row, effectively remove of strong magnetic impurities and part of the weak magnetic iron oxide and titanium oxide, improve product whiteness, in order to achieve the ideal effect of iron removal.
PLC control, continuous work, automatically remove iron, automatic cleaning, cleaning time and cycle are adjustable, high reliability, long service life.
High intensity magnetic iron absorption, demagnetization wash, iron clean, less water, can remove working medium inspection, cleaning, effectively avoid cross effects of different size.
The host is not electricity, low use cost, achieving energy saving and environmental protection, high efficiency on iron removal.
Technology parameter
Model |
1000 |
750 |
600 |
G500 |
W500SL |
Magnetic field strength(T) |
5 |
5 |
5 |
5 |
3 |
Input voltage(ACV) |
380 |
380 |
380 |
380 |
380 |
Maximum output current(DCA) |
2500 |
1400 |
2100 |
1400 |
1400 |
Maxiumum coil power(KW) |
180 |
75 |
75 |
75 |
30 |
Insulation method |
E |
E |
E |
E |
E |
Cooling method |
Water cooling |
Water cooling |
Water cooling |
Water cooling |
Water cooling |
Magnetic lumen diameter(mm) |
1000 |
750 |
600 |
530 |
530 |
Pipe size(mm) |
200 |
150 |
100 |
100 |
100 |
yield(m³/h) |
80-200 |
40-100 |
30-80 |
30-70 |
20-50 |
demension(mm) |
2710*2410*3500 |
2600*2000*3000 |
2370*2000*2650 |
2200*1700*3000 |
1400*1700*2345 |
Main machine weight(KG) |
35000 |
16350 |
14730 |
14100 |
6500 |
Usage |
Applicable for 40-400 mesh feedstock of iron elimination |
Application scope
Automatic Water-cooling Eletromagnetic Slurry Separator Series: It is used for purifying the non-metallic mineral such as quartz, feldspar and kaolin.
Ferrous metals mineral: hematite, martite, limonite, siderite, chromite, polianite.
Non-ferrous metals mineral: used for separating wolframite from pyrope
other industries: iron ore, effluent of power station disposal, disposal of contaminated chemical raw material.
