Product Details:
|
Model: | WY1000-VB | Maximum Output Current(DCA): | 280 |
---|---|---|---|
Maxiumum Coil Power(KW): | 120 | Background Magnetic Field(T): | 2 |
Insulation Method: | E | Cooling Method: | Oil Cooling |
Magnetic Lumen Diameter(mm): | 1000 | Pipe Size(mm): | 200 |
Yield(m³/h): | 30-120 | ||
High Light: | Oil Cooling Magnetic Separator Equipment,Kaolin Magnetic Separator Equipment,Kaolin magnetic drum separator |

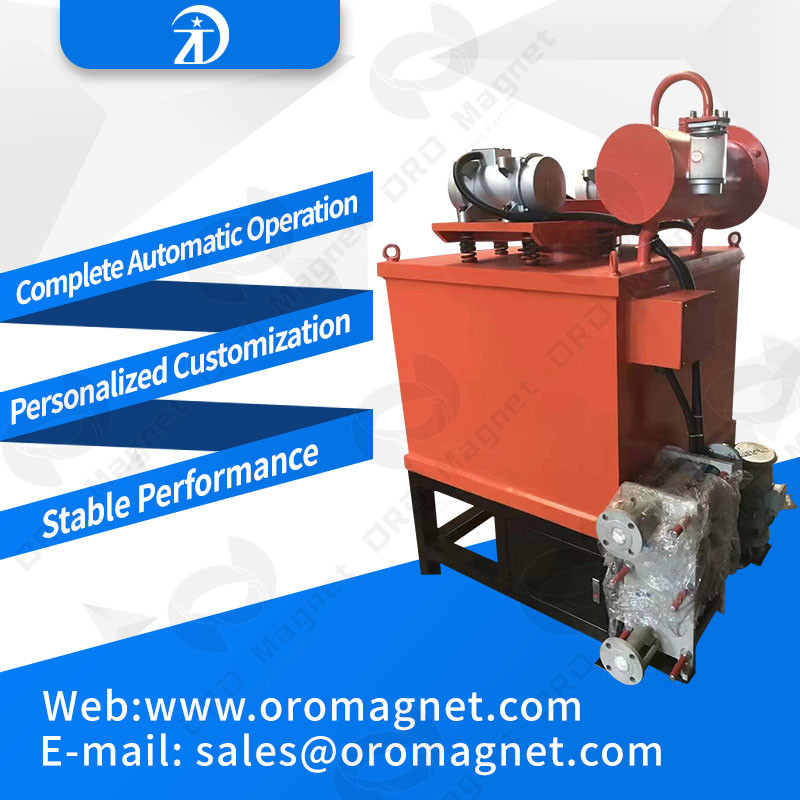

Automatic Oil Cooling Magnetic Separator Equipment For Kaolin
Automatic Oil - Cooling Electromagnetic Separator For Kaolin, Non-Metallic Mineral Ceramics Slurry With Energy-Saving
Product characteristic
Automatic Oil-cooling Eletromagnetic Slurry Separator Series advantages :
1. High intensity magnetic field and more than 30% energy saving, greatly reduce operating cost;
2. Oil and Water dual medium cooling system designed to effecttively control The temperature of the machine rises slowly;
3. The magnetic field intensity are not easy to decrease when the machine run for a long time;
4. Long working period with very low falture rate ;
5. Have a wide range of adaption in the particle of feeding ore and the thickness of slurry;
6. High efficiency in mineral processing;
7. Inteelligent control, there is no need to more manual operation.
Application scope
Kaolin Beneficiation,Sodium potassium feldspar Beneficiation,Quartz Beneficiation.
1. Non-metallic mineral, Kaolin, Feldspar,quartz, or other industries Ceramics slurry, wastewater treatment.
2. Purification of Zirconium and titanium ore, effluent of power station disposal, disposal of contaminated chemical raw material.
Technology parameter
Model | WS500-V | WS750-V | WS1000-V | WY750-V | WY1000-VB | WY1200-V | WY1500-V |
Magnetic field strength(T) | 2 | 2.5 | 2.5 | 2 | 2 | 2.5 | 3 |
Input voltage(ACV) | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
Maximum coil power(KW) | 75 | 103 | 150 | 82 | 120 | 150 | 180 |
Insulation method | E | E | E | E | E | E | E |
Cooling method | water cooling | water cooling | water cooling | oil cooling | oil cooling | oil cooling | oil cooling |
Magnetic lumen diameter(mm) | 500 | 750 | 1000 | 750 | 1000 | 1200 | 1500 |
Pipe size(mm) | 100 | 150 | 200 | 150 | 200 | 250 | 300 |
yield(m³/h) | 20-45 | 30-65 | 50-100 | 30-65 | 50-100 | 50-150 | 70-180 |
dimension(mm) | 2328*1745*2642 | 2659*1978*2518 | 3052*2185*2814 | 2958*2294*3091 | 3503*2658*3392 | 3950*2926*3746 | 4349*3180*3706 |
Main machine weight | 14000 | 16600 | 26000 | 16000 | 28000 | 53000 | 65000 |
(KG) | |||||||
Usage | Applicable for 40-400 mesh feedstock of iron elimination |
Clients processing pictures
