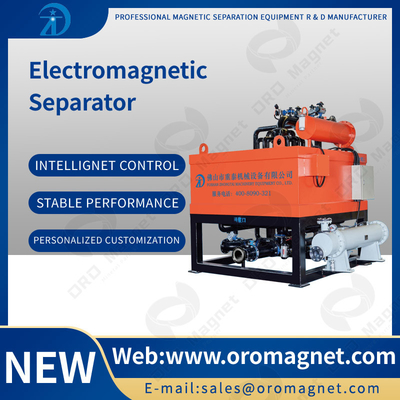

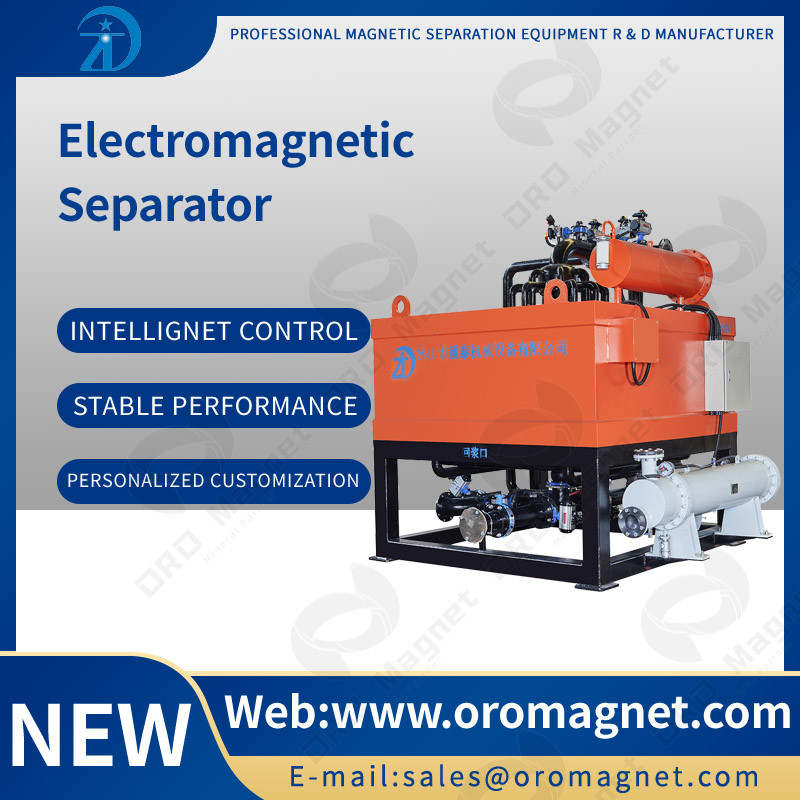

Kaolin Electromagnetic Separator Non Metallic Mineral Ceramics Slurry Energy Saving

Kaolin Electromagnetic Separator Non Metallic Mineral Ceramics Slurry Energy Saving
Kaolin Electromagnetic Separator Non Metallic Mineral Ceramics Slurry Energy Saving Kaolin Electromagnetic Separator Non Metallic Mineral Ceramics Slurry Energy Saving

Large Image :  Kaolin Electromagnetic Separator Non Metallic Mineral Ceramics Slurry Energy Saving

Product Details:
Place of Origin: FOSHAN.CHINA
Brand Name: ZT
Certification: ISO9001:2008
Model Number: WY1000-VB
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Film and wooden case
Delivery Time: Within 25 days after the advance payment is made
Supply Ability: 50 SETS PER MONTH

Kaolin Electromagnetic Separator Non Metallic Mineral Ceramics Slurry Energy Saving

Description
Maximum Output Current(DCA): 280 Maxiumum Coil Power(KW): 120
Background Magnetic Field(T): 2 Insulation Method: E
Magnetic Lumen Diameter(mm): 1000 Yield(m³/h): 30-120
Demension(mm): 3503*2658*3392 Weight(KG): 28000
High Light:

Kaolin Electromagnetic Separator

,

Energy Saving Electromagnetic Separator

,

Kaolin magnetic drum separator

Kaolin Electromagnetic Separator Non Metallic Mineral Ceramics Slurry Energy Saving



Automatic Oil - Cooling Electromagnetic Separator For Kaolin, Non-Metallic Mineral Ceramics Slurry With Energy Saving


Product characteristic

Automatic Oil-cooling Eletromagnetic Slurry Separator Series advantages :
1. High intensity magnetic field and more than 30% energy saving, greatly reduce operating cost;
2. Oil and Water dual medium cooling system designed to effecttively control The temperature of the machine rises slowly;
3. The magnetic field intensity are not easy to decrease when the machine run for a long time;
4. Long working period with very low falture rate ;
5. Have a wide range of adaption in the particle of feeding ore and the thickness of slurry;
6. High efficiency in mineral processing;
7. Inteelligent control, there is no need to more manual operation.


Operation process

1. Firstly, power on, then open the admission valve and slurry valve, close the back slurry valve and iron discharging valve, then magnetizing.
2. After a few minutes later(you can set the time whatever you like depending on yourself condition),close the admission valve and slurry valve, open the back slurry valve to discharge the remaining slurry in the separator.
3. Then magnetic cutting, close the admission valve, slurry valve and back slurry valve, open the iron discharging valve to discharge the magnetic material which are absorbed on the magnetic media.



Technology parameter



Model WS500-V WS750-V WS1000-V WY750-V WY1000-VB WY1200-V WY1500-V
Magnetic field strength(T) 2 2.5 2.5 2 2 2.5 3
Input voltage(ACV) 380 380 380 380 380 380 380
Maximum coil power(KW) 75 103 150 82 120 150 180
Insulation method E E E E E E E
Cooling method water cooling water cooling water cooling oil cooling oil cooling oil cooling oil cooling
Magnetic lumen diameter(mm) 500 750 1000 750 1000 1200 1500
Pipe size(mm) 100 150 200 150 200 250 300
yield(m³/h) 20-45 30-65 50-100 30-65 50-100 50-150 70-180
dimension(mm) 2328*1745*2642 2659*1978*2518 3052*2185*2814 2958*2294*3091 3503*2658*3392 3950*2926*3746 4349*3180*3706
Main machine weight 14000 16600 26000                 16000                 28000                 53000                65000
(KG)
Usage Applicable for 40-400 mesh feedstock of iron elimination


Clients processing pictures


 Kaolin Electromagnetic Separator Non Metallic Mineral Ceramics Slurry Energy Saving 0Kaolin Electromagnetic Separator Non Metallic Mineral Ceramics Slurry Energy Saving 1Kaolin Electromagnetic Separator Non Metallic Mineral Ceramics Slurry Energy Saving 2

Kaolin Electromagnetic Separator Non Metallic Mineral Ceramics Slurry Energy Saving 3
