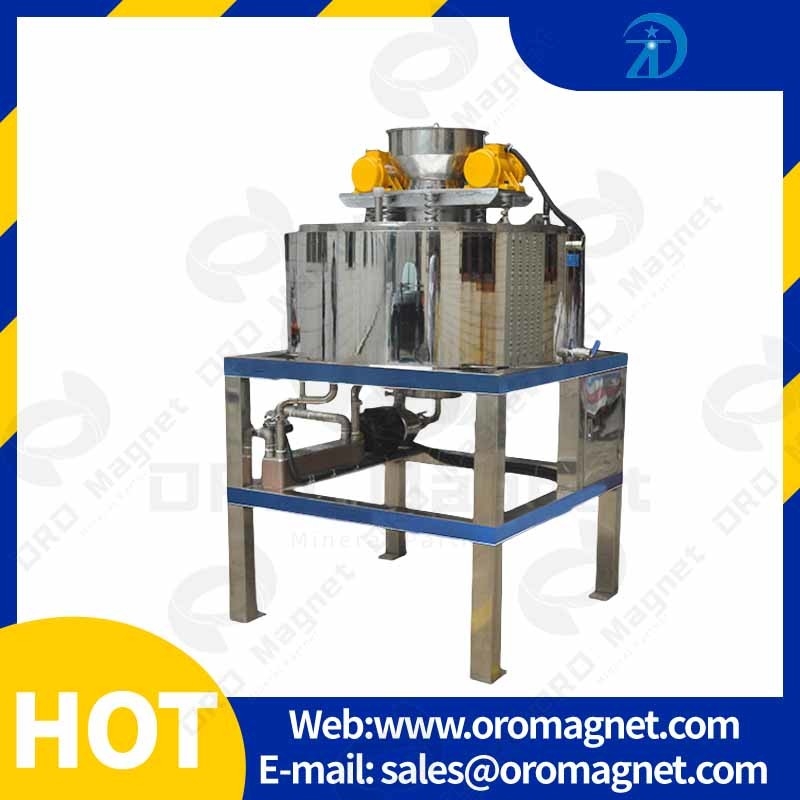

Plastic Particles Electromagnetic 380VAC Dry Magnetic Separator

Plastic Particles Electromagnetic 380VAC Dry Magnetic Separator
Plastic Particles Electromagnetic 380VAC Dry Magnetic Separator Plastic Particles Electromagnetic 380VAC Dry Magnetic Separator Plastic Particles Electromagnetic 380VAC Dry Magnetic Separator

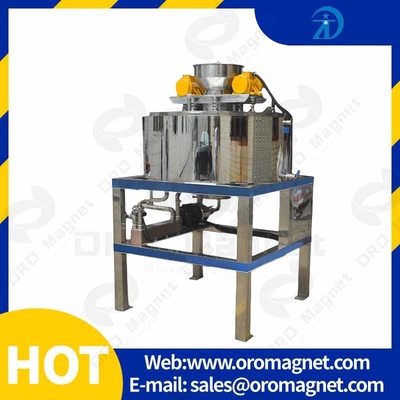

Large Image :  Plastic Particles Electromagnetic 380VAC Dry Magnetic Separator

Product Details:
Place of Origin: FOSHAN.CHINA
Brand Name: ZT
Certification: ISO9001:2008
Model Number: WG220B-V-11
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: export wooden case
Delivery Time: Within 35 days after the advance payment is made
Supply Ability: 50 SETS PER MONTH

Plastic Particles Electromagnetic 380VAC Dry Magnetic Separator

Description
Magnetic Field Strength(T): 3 Input Voltage(ACV): 380
Maximum Output Current: 20 Maximum Coil Power(KW): 11
Insulation Method: E Cooling Method: Water And Oil Double Cooling
Magnetic Lumen Diameter(mm): 220 Yield(T): 0.5-3
Dimension(mm): 1260*1260*2017 Main Machine Weight (KG): 1130
High Light:

380VAC Dry Magnetic Separator

,

380VAC dry electromagnetic separator

,

3T Dry Magnetic Separator

Plastic Particles Electromagnetic 380VAC Dry Magnetic Separator



Dried type Electromagnetic Separator apply for kind of dried powder such as quartz kaolin feldspar plastic particles





Product characteristic



1. Intelligence Can design different magnetic field intensity as the property of raw ores.

2. Energy saving Doesn’t need to come over the gravity and resistance of the raw material.

3. Efficient With the mechanical vibrating equipment.

4. EP Easier to discharge the iron.





Operation process



Feed the dry powder from the hopper, meanwhile make the separator state at the magnetizing and run a vibrator. After a period ,stop feeding, cut off the magnetic device, run the other vibrator(keep the two vibrator running), poke the raffle of drain of material funnel into the iron discharge. Then discharge the magnetic material absorbed on the magnetic media relying on the vibrating force.





Application scope



Electromagnetic dried-powder separators are applied in process the fine mineral particle, the magnetic fine ferrous mineral particle such as   eremite; and fine nonmetallic mineral particle such as feldspar, quartz, kaolin.

Electromagnetic dried-powder separators are suitable for using at the drought and water shortage area.





Technical parameter

Model WG160B-V-3 WG220-V-25 WG300-V-7 WG220B-V-11 WG430-V-11 WG230-V-15 WG600-V-20
Magnetic field strength(t) 2 3.5 3 3 3 3 3
Input voltage(VAC) 380 220 380 380 380 380 380
Maximun output current(A) 15 47 20 20 20 30 40
Maximum coil power(KW) 3 25 7 11 11 15 20
Insulation category E E E E E E E
Cooling method water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling
Magnetic lumen diameter(mm) 160 220 300 220 430 230 600
Yield(m3/h) 0.5-1.5 0.5-3 1.5-4 0.5-3 1.5-6 1-3 3-8
Dimension(mm) 1000*860 2046*1980 1100*1100 1260*1260 1367*1367 1315*1100 1500*1500
*1718 *1977 *1937 *2017 *2017 *1856 *2500
Main machine weight(kg) 450 2080 1020 1130 1210 1500 2000
Usage 60-300 mesh feedstock of iron elimination



Client's processing pictures



Plastic Particles Electromagnetic 380VAC Dry Magnetic Separator 0Plastic Particles Electromagnetic 380VAC Dry Magnetic Separator 1
