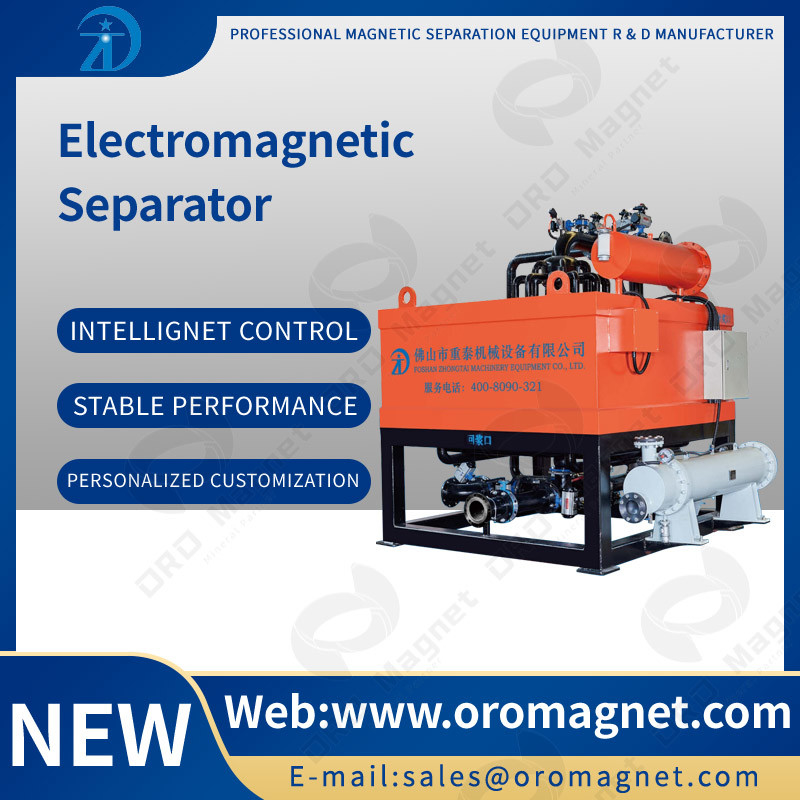

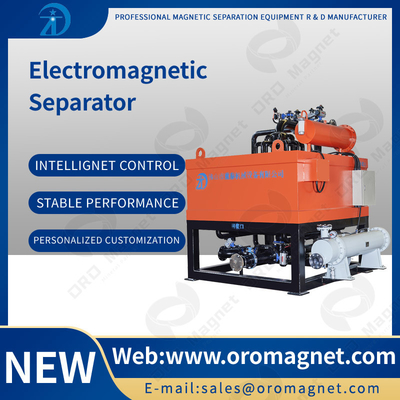

Product Details:
|
| Model: | WS-750-V | Magnetic Field Strength(T): | 2.5 |
|---|---|---|---|
| Input Voltage(ACV): | 380 | Maximum Output Current(DCA): | 2300 |
| Maxiumum Coil Power(KW): | 103(Adjustive) | Insulation Method: | E |
| Lumen Diameter (mm): | 750 | Pipe Size(in): | 6 |
| Capacity(m³/h）: | 30-65 | Weight（T）: | 16.6 |
| Dimension（mm）: | 2659*1978*2518 | ||
| High Light: | 3T Electromagnetic Separator,2.5T Electromagnetic Separator,3T Ceramic Slurry magnetic Separator |
||
Foshan Zhongtai Machinery Company Limited provide customers with convenient services ,meantime,though the research platform cooperation and communication with people in the technology industry ,continues update the whole line science solutions of non-metallic mineraI. As a have technology and marketing services high-tech enterprise, Zhongtai Limited provides high-quality products, advanced production technology,excellent product quality ,perfect after- service and the support and trust from customers around the world.To up the ;set up national famous brands, moving towards the world- class enterprise.
Product characteristic
A new model of separator with high efficiency.
High intensity magnetic field.
The temperature inside of the machine rises slowly.
Running long time and the magnetic field intensity are not easy to decrease.
Technology parameter
| Model | WS500-V | WS750-V | WS1000-V | WY750-V | WY1000-VB | WY1200-V | WY1500-V |
| Magnetic field strength(T) | 2 | 2.5 | 2.5 | 2 | 2 | 2.5 | 3 |
| Input voltage(ACV) | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Maximum coil power(KW) | 75 | 103 | 150 | 82 | 120 | 150 | 180 |
| Insulation method | E | E | E | E | E | E | E |
| Cooling method | water cooling | water cooling | water cooling | oil cooling | oil cooling | oil cooling | oil cooling |
| Magnetic lumen diameter(mm) | 500 | 750 | 1000 | 750 | 1000 | 1200 | 1500 |
| Pipe size(mm) | 100 | 150 | 200 | 150 | 200 | 250 | 300 |
| yield(m³/h) | 20-45 | 30-65 | 50-100 | 30-65 | 50-100 | 50-150 | 70-180 |
| dimension(mm) |
2328*1745* 2642 |
2659*1978* 2518 |
3052*2185* 2814 |
2958*2294* 3091 |
3503*2658* 3392 |
3950*2926* 3746 |
4349*3180* 3706 |
| Main machine weight | 14000 | 16600 | 26000 | 16000 | 28000 | 53000 | 65000 |
| (KG) | |||||||
| Usage | Applicable for 40-400 mesh feedstock of iron elimination | ||||||
Operation process
After a few minutes later(you can set the time whatever you like depending on yourself condition),close the admission valve and slurry valve, open the back slurry valve to discharge the remaining slurry in the separator, then magnetic cutting, close the admission valve, slurry valve and back slurry valve, open the iron discharging valve to discharge the magnetic material which are absorbed on the magnetic media.
Application scope
Non-metallic mineral: It is used for purifying the non-metallic mineral such as quartz, feldspar and kaolin.
Non-ferrous metals mineral: used for separating wolframite from pyrope
Rare earth ore: recycle tantalum-niobium ores and monazite.
other industries: iron ore, effluent of power station disposal, disposal of contaminated chemical raw material.
The customers processing pictures as below:
