Product Details:
|
Name: | Magnetic Iron Separator | Magnetic Field Strength(T): | 2.5 |
---|---|---|---|
Inputvoltage(ACV): | 380 | Maximum Coil Power(KW): | 11 |
Insulation Method: | E | Cooling Method: | Oil Cooling |
Magnetic Lumen Diameter(mm): | 430 | Yield(T): | 3-5 |
Dimension(mm): | 1500*1500*2500 | Usage: | Applicable For 60-300 Mesh Feedstock Of Iron Elimination |
High Light: | Quartz Sand electromagnetic separator,Feldspar magnetic iron separator,380V Dry Magnetic Separator |

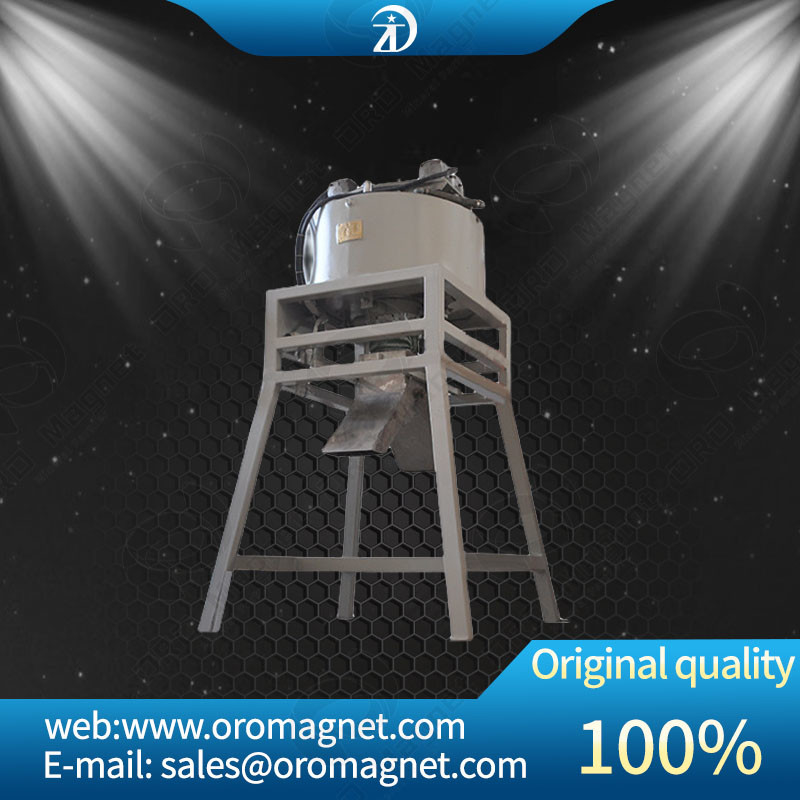

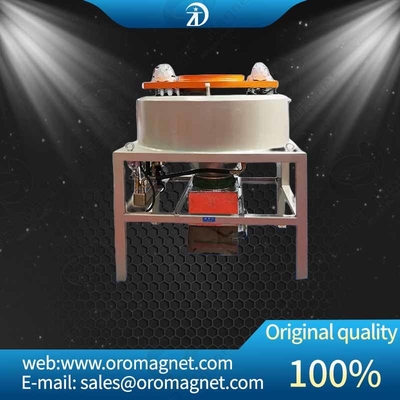

Dry powder electric magnetic iron separator
Magnetic Separator:
1.Large inhaling capacity
2.low consumption
2.Reasonable circulation of cooling
3.Automatic operation
2.Introduction
Magnetic separator is suitable for the wet magnetic separation of the materials whose granularity is below 3mm such as magnetite, pyrrhotite, calcined ore and ilmenite and can also be used for removing iron from the materials such as coal, non-metal ore and building material. The magnetic system of magnetic separator is a compound of fine ferrite material and rare earth magnets and the average magnetic induction intensity of the surface of the cylinder is 100~600mT. According to specific need, customers can choose from many kinds of magnetic separators with different surface magnetic intensity such as downstream type, semi-reflux type and reflux-type. This product has the advantages of simple structure, big processing capacity, convenient operation and easy maintenance.
3.Delivery Scene
This is CTB900*2100 Magnetic separator, it is prepared transported to India. It is used for a copper production line. Besides domestic markets, our products have been exported to West Asia, Central Asia, Africa and Europe, winning praise from the government and trust from the society and customers.
4.Scene picture
This is a scene picture of Magnetic separation. It is removing metal impurities in magnetic material by using magnetic force. The application of magnetic separation is by using the difference of various minerals or materials, process of sorting in the magnetic force and other force. It is usually divided into four classes: 1. Strong magnetic minerals 2. the secondary magnetic minerals 3. weak magnetic minerals 4. non-magnetic minerals.
5.Beneficiation production line
At first, ore is preliminary broken by jaw crusher. When it has been broken to a reasonable size, it will be send to ball mill symmetrical through bucket and feeder. Next, ball mill will crush and grand ore then go to next step flotation. After flotation, the ore powder will be into rotary kiln, than the final product is concentrate.
6.Foreign visiting picture
Until now, we have successful cooperation with more than 8000 mineral processing units and individuals in China, Asia, Africa, Europe, North and South America etc 40 countries. When they visited our company, most of them said they are surprised for our company. Because we have the biggest workshop, the good service attitude, and professional guidance.
Model | WG160B-V-3 | WG220B-V-3 | WG300-V-7 | WG220B-V-11 | WG430-V-11 | WG220-V-15 | WG600-V-20 |
Magnetic field strength(t) | 2 | 2 | 3 | 3 | 3 | 5 | 3 |
Input voltage(VAC) | 380 | 220 | 380 | 380 | 380 | 380 | 380 |
Maximun output current(A) | 15 | 7 | 20 | 20 | 20 | 30 | 40 |
Maximum coil power(KW) | 3 | 3 | 7 | 11 | 11 | 15 | 20 |
Insulation category | E | E | E | E | E | E | E |
Cooling method | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling |
Magnetic lumen diameter(mm) | 160 | 220 | 300 | 220 | 430 | 220 | 600 |
Yield(m3/h) | 0.5-1.5 | 43833 | 1.5-4 | 0.5-3 | 1.5-6 | 1-3 | 3-8 |
Dimension(mm) | 700*700 | 860*860 | 1320*1320 | 1300*1100 | 1500*1500 | 1350*1100 | 1500*1500 |
*1450 | *1540 | *2500 | *1800 | *2500 | *1850 | *2000 | |
Main machine weight(kg) | 450 | 490 | 1020 | 1130 | 1210 | 1500 | 2000 |
Usage | 60-300 mesh feedstock of iron elimination |
