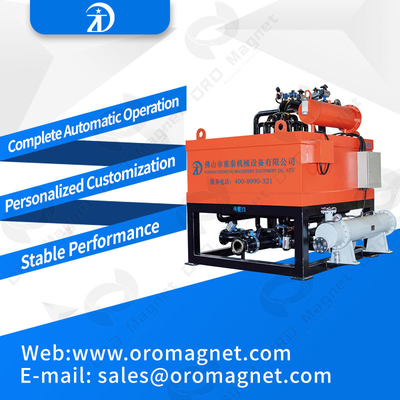

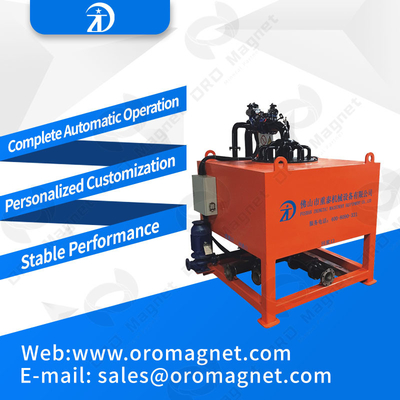

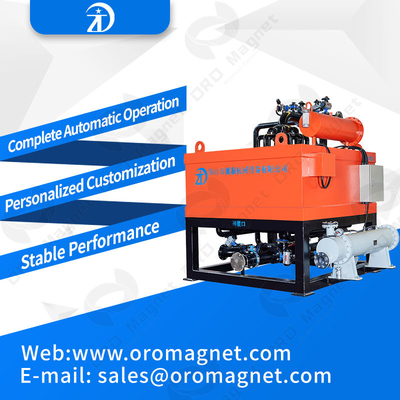

Automatic Oil - Cooling Electromagnetic Separator For Kaolin, Non-Metallic Mineral Ceramics Slurry With Energy Saving

Automatic Oil - Cooling Electromagnetic Separator For Kaolin, Non-Metallic Mineral Ceramics Slurry With Energy Saving
Automatic Oil - Cooling Electromagnetic Separator For Kaolin, Non-Metallic Mineral Ceramics Slurry With Energy Saving Automatic Oil - Cooling Electromagnetic Separator For Kaolin, Non-Metallic Mineral Ceramics Slurry With Energy Saving Automatic Oil - Cooling Electromagnetic Separator For Kaolin, Non-Metallic Mineral Ceramics Slurry With Energy Saving

Large Image :  Automatic Oil - Cooling Electromagnetic Separator For Kaolin, Non-Metallic Mineral Ceramics Slurry With Energy Saving

Product Details:
Place of Origin: FOSHAN.CHINA
Brand Name: ZT
Certification: ISO9001:2008
Model Number: WY1000-VB
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Film and wooden case
Delivery Time: Within 30 days after the advance payment is made
Supply Ability: 50 SETS PER MONTH

Automatic Oil - Cooling Electromagnetic Separator For Kaolin, Non-Metallic Mineral Ceramics Slurry With Energy Saving

Description
Model: WY1000-VB Maximum Output Current(DCA): 280
Maxiumum Coil Power(KW): 120 Background Magnetic Field(T): 2
Insulation Method: E Cooling Method: Oil Cooling
Magnetic Lumen Diameter(mm): 1000 Pipe Size(mm): 200
Yield(m³/h): 30-120 Demension(mm): 3503*2658*3392
Weight(KG): 28000
High Light:

Oil Cooling Electromagnetic Separator

,

380ACV Electromagnetic Separator

,

Magnetic slurry separator

Automatic Oil - Cooling Electromagnetic Separator For Kaolin, Non-Metallic Mineral Ceramics Slurry With Energy Saving


Product characteristic

Automatic Oil-cooling Eletromagnetic Slurry Separator Series advantages :
1. High intensity magnetic field and more than 30% energy saving, greatly reduce operating cost;
2. Oil and Water dual medium cooling system designed to effecttively control The temperature of the machine rises slowly;
3. The magnetic field intensity are not easy to decrease when the machine run for a long time;
4. Long working period with very low falture rate ;
5. Have a wide range of adaption in the particle of feeding ore and the thickness of slurry;
6. High efficiency in mineral processing;
7. Inteelligent control, there is no need to more manual operation.


Operation process

1. Firstly, power on, then open the admission valve and slurry valve, close the back slurry valve and iron discharging valve, then magnetizing.
2. After a few minutes later(you can set the time whatever you like depending on yourself condition),close the admission valve and slurry valve, open the back slurry valve to discharge the remaining slurry in the separator.
3. Then magnetic cutting, close the admission valve, slurry valve and back slurry valve, open the iron discharging valve to discharge the magnetic material which are absorbed on the magnetic media.


Application scope

Kaolin Beneficiation,Sodium potassium feldspar  Beneficiation,Quartz Beneficiation.

1. Non-metallic mineral,  Kaolin, Feldspar,quartz, or other industries Ceramics slurry, wastewater treatment.

2. Purification of Zirconium and titanium ore,  effluent of power station disposal, disposal of contaminated chemical raw material.


Technology parameter


ModelWS500-VWS750-VWS1000-VWY750-VWY1000-VBWY1200-VWY1500-V
Magnetic field strength(T)22.52.5222.53
Input voltage(ACV)380380380380380380380
Maximum coil power(KW)7510315082120150180
Insulation methodEEEEEEE
Cooling methodwater coolingwater coolingwater coolingoil coolingoil coolingoil coolingoil cooling
Magnetic lumen diameter(mm)5007501000750100012001500
Pipe size(mm)100150200150200250300
yield(m³/h)20-4530-6550-10030-6550-10050-15070-180
dimension(mm)2328*1745*26422659*1978*25183052*2185*28142958*2294*30913503*2658*33923950*2926*37464349*3180*3706
Main machine weight140001660026000                16000                28000                53000               65000
(KG)
UsageApplicable for 40-400 mesh feedstock of iron elimination


Clients processing pictures
 Automatic Oil - Cooling Electromagnetic Separator For Kaolin, Non-Metallic Mineral Ceramics Slurry With Energy Saving 0Automatic Oil - Cooling Electromagnetic Separator For Kaolin, Non-Metallic Mineral Ceramics Slurry With Energy Saving 1Automatic Oil - Cooling Electromagnetic Separator For Kaolin, Non-Metallic Mineral Ceramics Slurry With Energy Saving 2Automatic Oil - Cooling Electromagnetic Separator For Kaolin, Non-Metallic Mineral Ceramics Slurry With Energy Saving 3
